Yaw Rate Sensor Communication Stop Mode

YAW RATE SENSOR COMMUNICATION STOP MODE

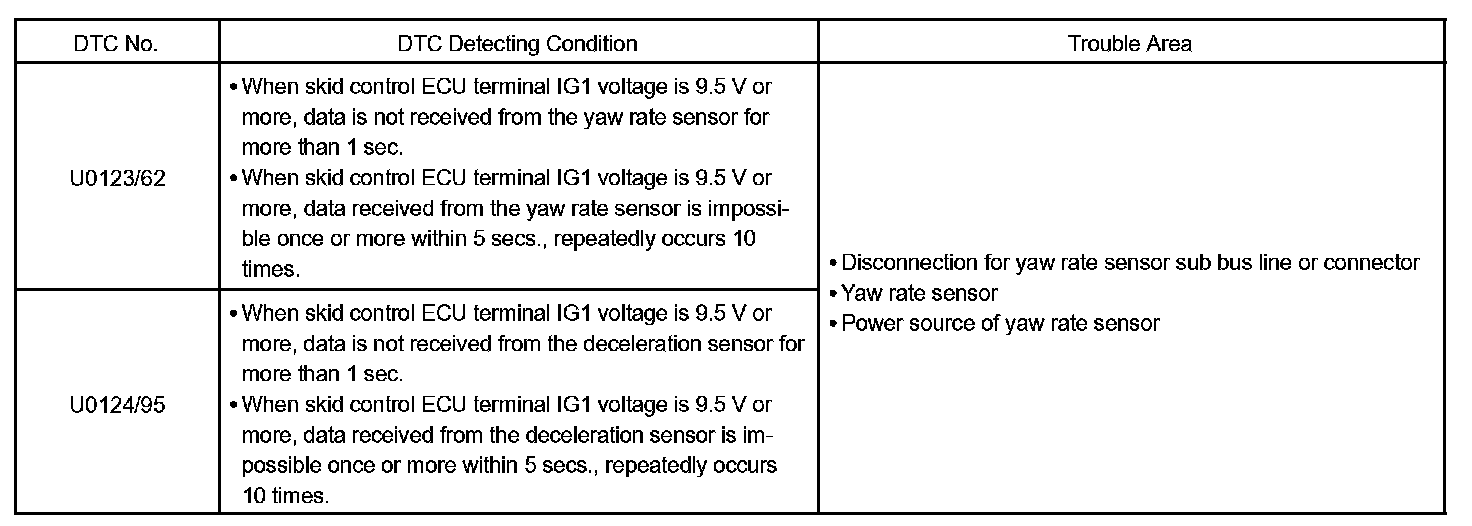

DTC Detecting Condition:




CIRCUIT DESCRIPTION

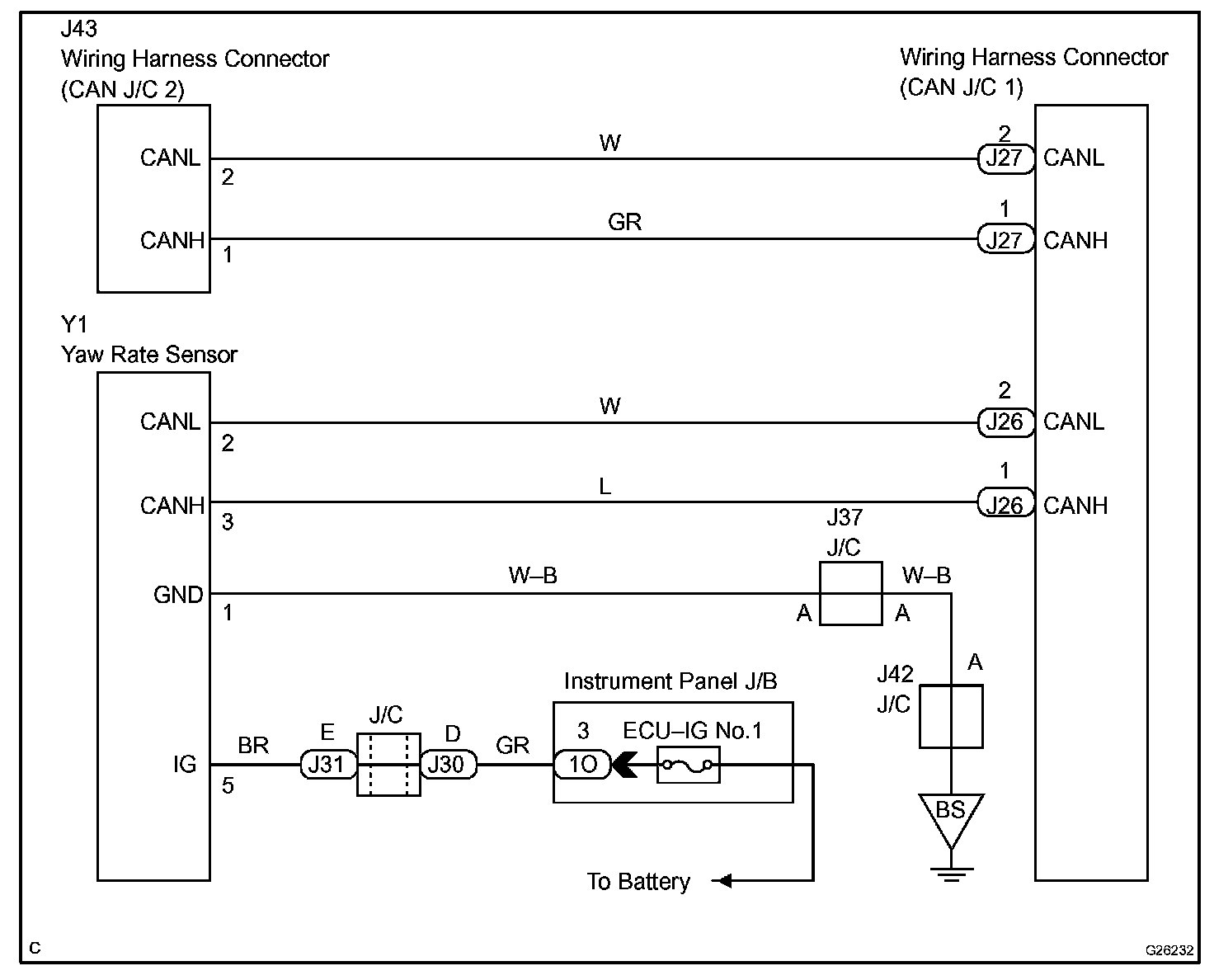

Wiring Diagram:

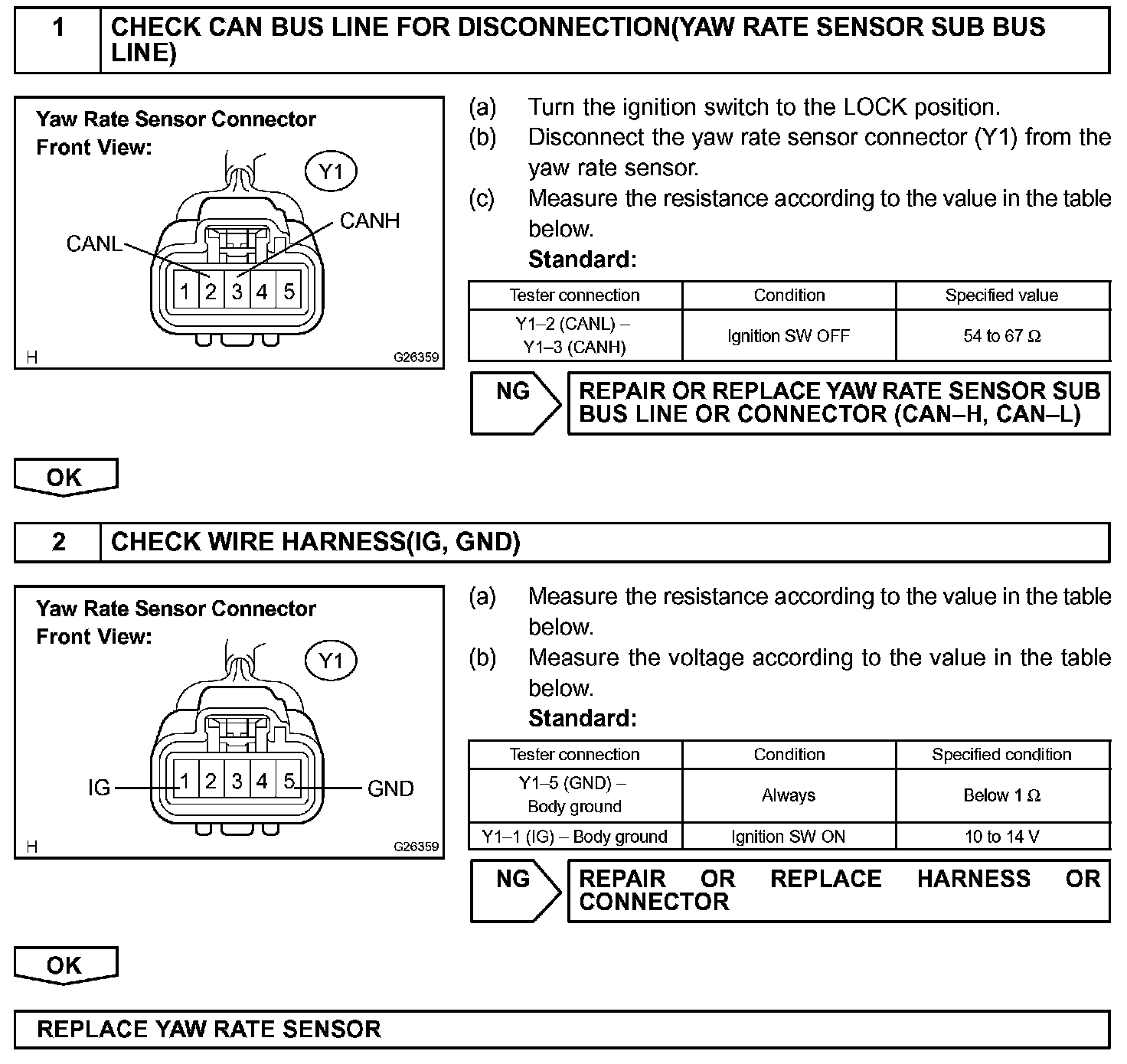

Step 1 - 2:




INSPECTION PROCEDURE
