Steering Column Control Module: Testing and Inspection

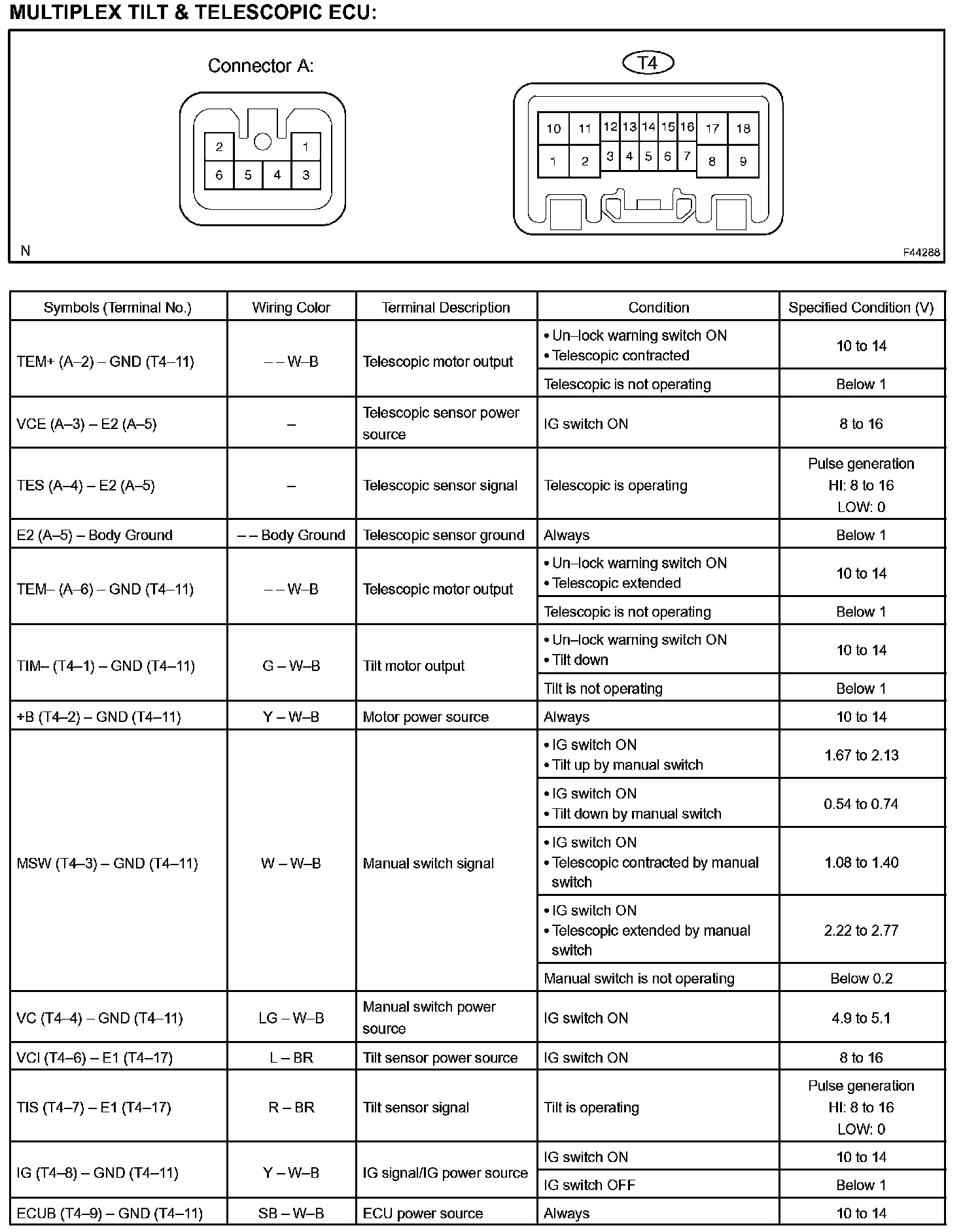

Terminals Of ECU/Pinouts - Multiplex Tilt & Telescopic ECU Part 1:

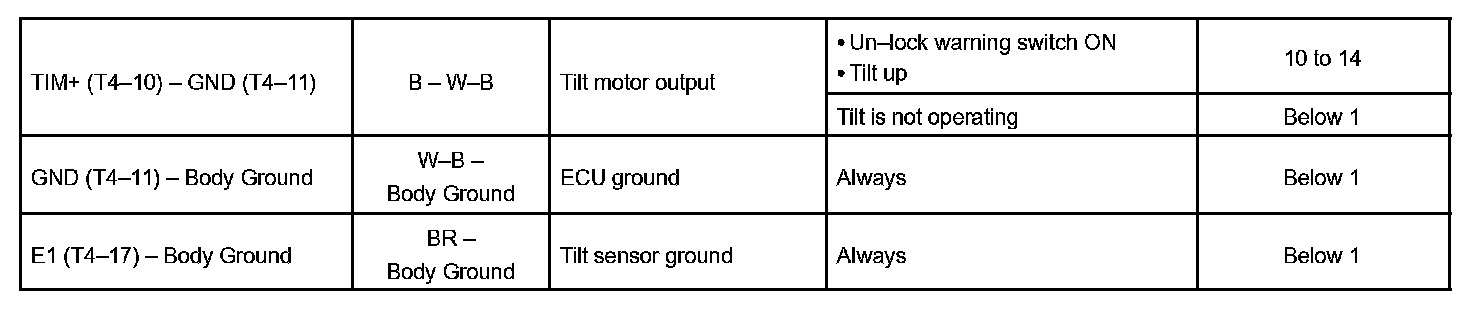

Terminals Of ECU/Pinouts - Multiplex Tilt & Telescopic ECU Part 2:
