Generator ASSY (3MZ-FE): Components

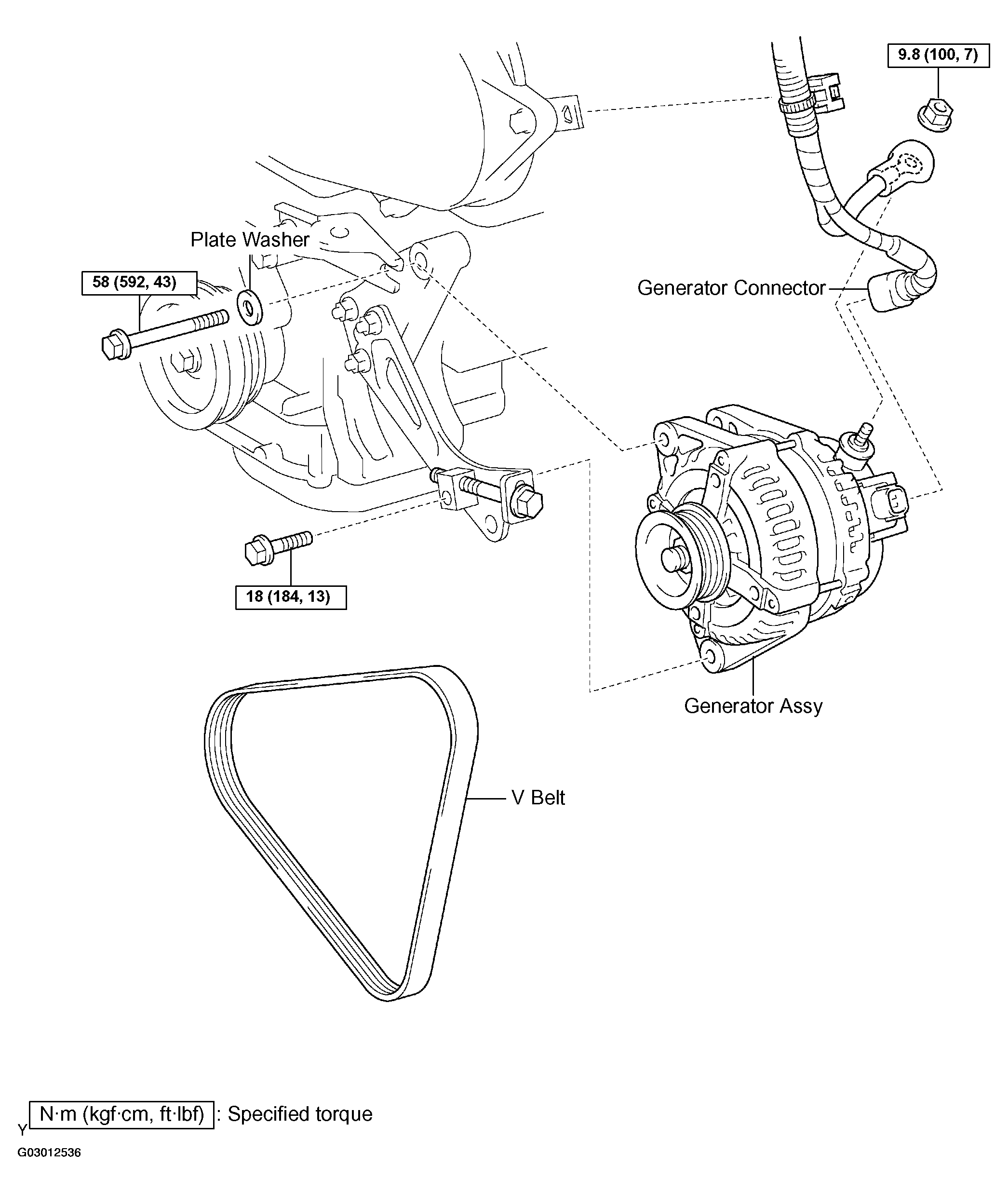

Fig 1: Identifying Generator Assy (3MZ-FE) Components
G03012536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

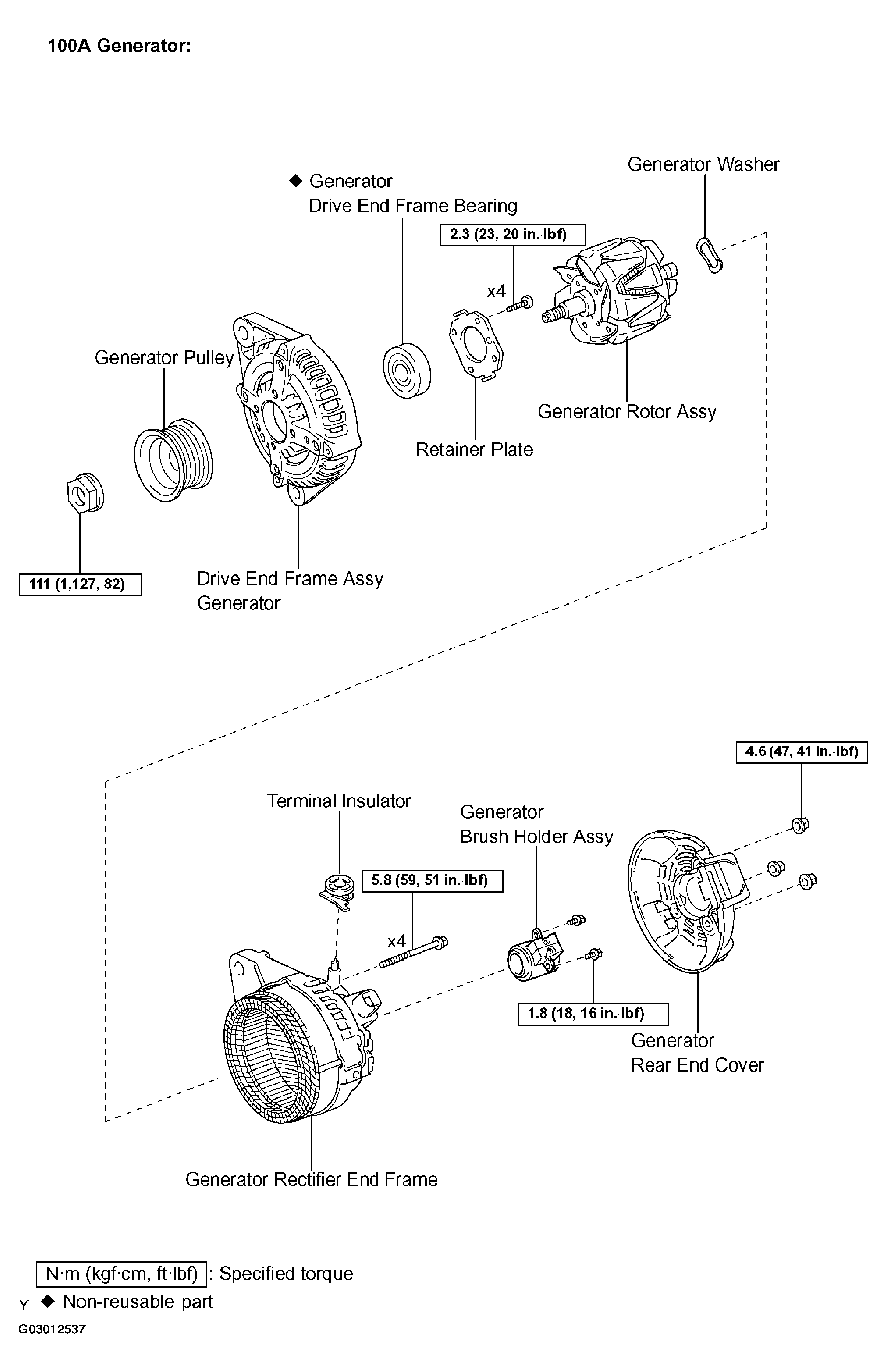

Fig 2: Identifying Generator Assy (3MZ-FE) Components (100A Generator)
G03012537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

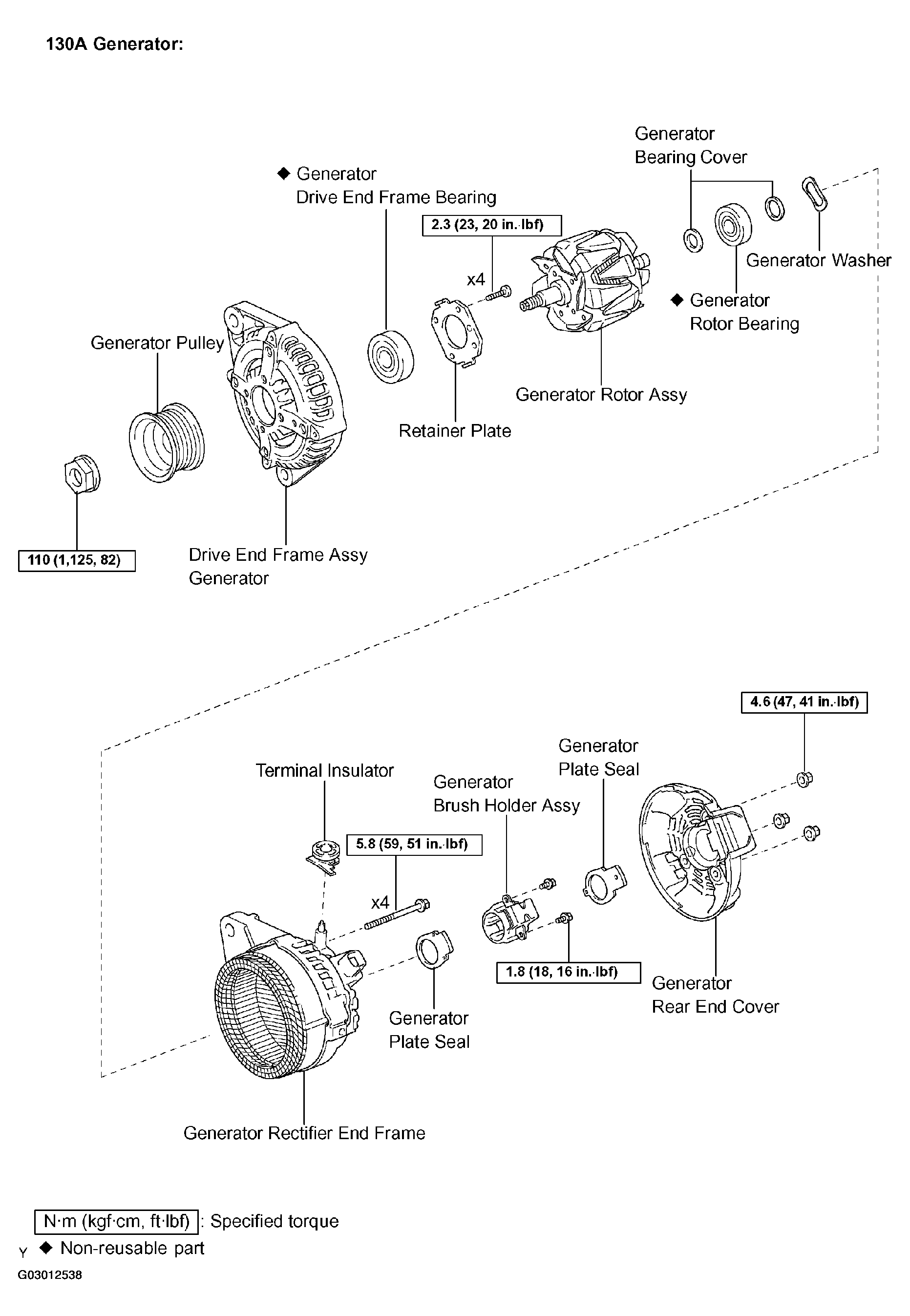

Fig 3: Identifying Generator Assy (3MZ-FE) Components (130A Generator)
G03012538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
