Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO AND NAVIGATION ASSY
    1. Disconnect the radio and navigation assy connector R14.
    2. Measure the resistance according to the value(s) in RADIO AND NAVIGATION ASSY RESISTANCE .

      Standard:

    RADIO AND NAVIGATION ASSY RESISTANCE

    Tester connection Condition Specified condition
    TXM+ - TXM- Always 60 to 80 Ω

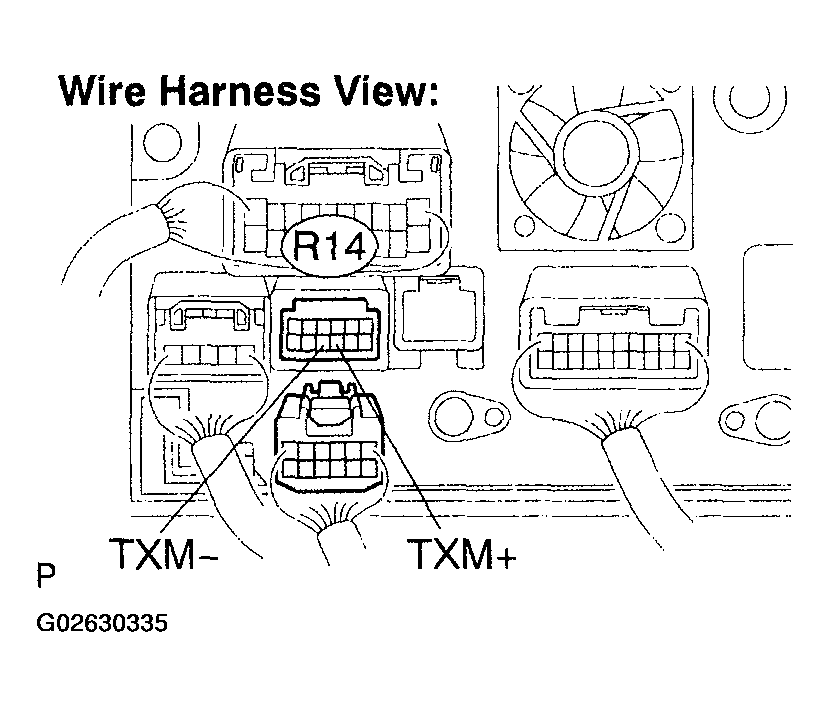

    Fig 1: Disconnecting Radio & Navigation Assy Connector R14
    G02630335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE RADIO AND NAVIGATION ASSY (SEE  RADIO RECEIVER ASSY  )
    2. OK: GO TO NEXT STEP
  2. CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSY - MULTI-DISPLAY CONTROLLER SUB-ASSY)
    1. Disconnect the radio and navigation assy connector R14 and multi-display controller sub-assy connector R26.
    2. Measure the resistance according to the value(s) in Fig 2.

      Standard:

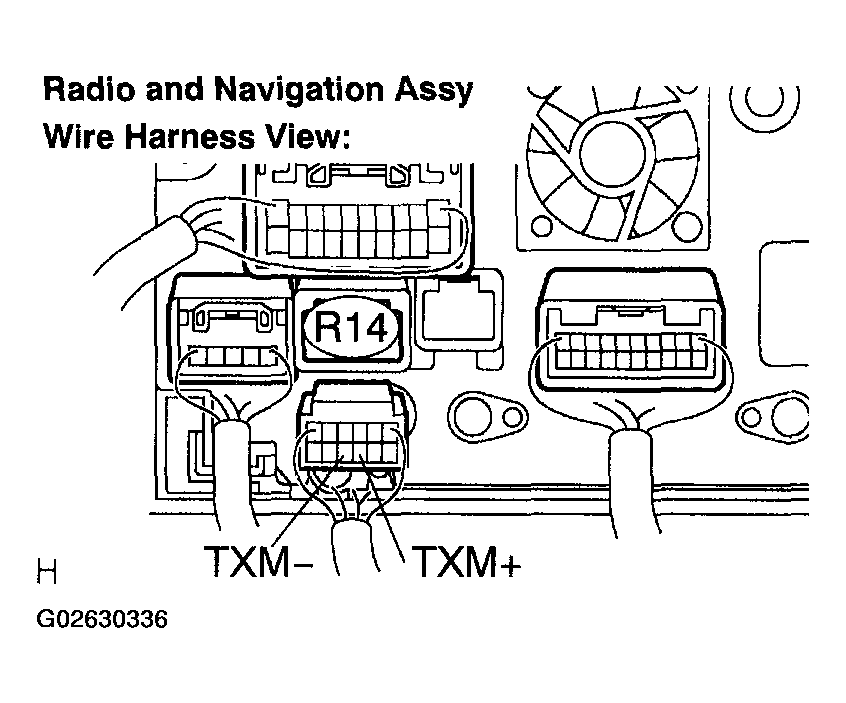

    Fig 2: Disconnecting Radio & Navigation Assy Connector R14
    G02630336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    RADIO AND NAVIGATION ASSY - MULTI-DISPLAY CONTROLLER SUB-ASSY RESISTANCE

    Tester connection Condition Specified condition
    TXM+ - TX3+ Always Below 1 Ω
    TXM- - TX3- Always Below 1 Ω
    TXM+ - Body ground Always 10 kΩ or higher
    TXM- - Body ground Always 10 kΩ or higher

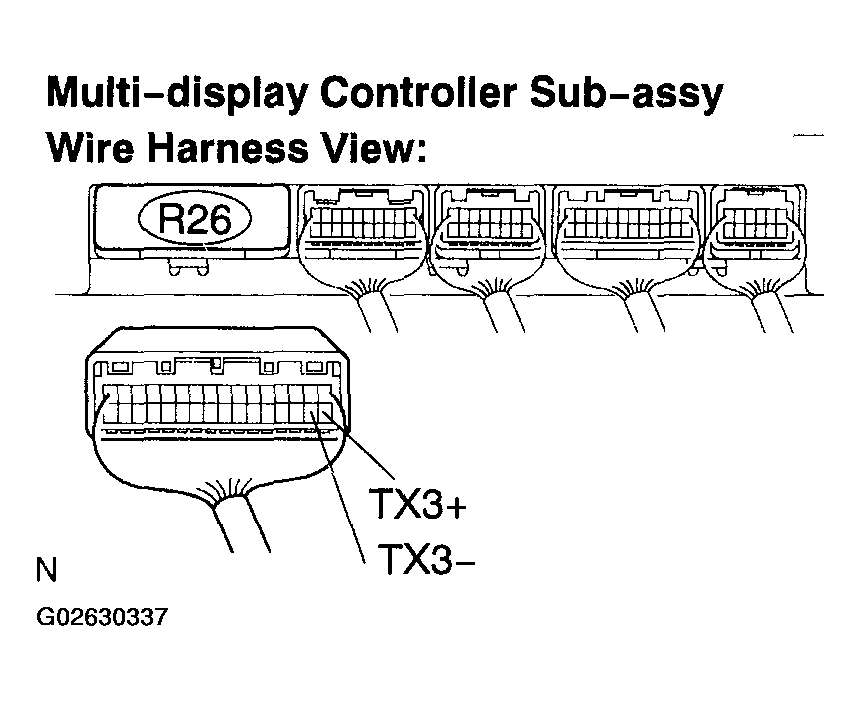

    Fig 3: Disconnecting Multi-Display Controller Sub-Assy Connector R26
    G02630337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  DIAGNOSTIC TROUBLE CODE TABLE
