Navigation Check Mode (Vehicle Sensors)

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the vehicle signal status input to the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Navigation Check" from the "Diagnosis MENU" screen.

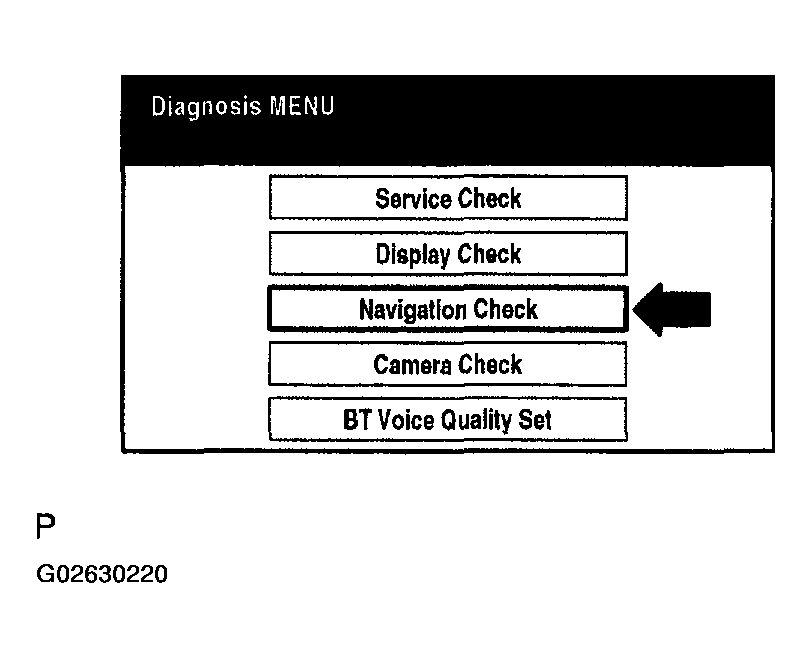

Fig 1: Selecting Navigation Check From Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Vehicle Sensors" from the "Navigation Check" screen.

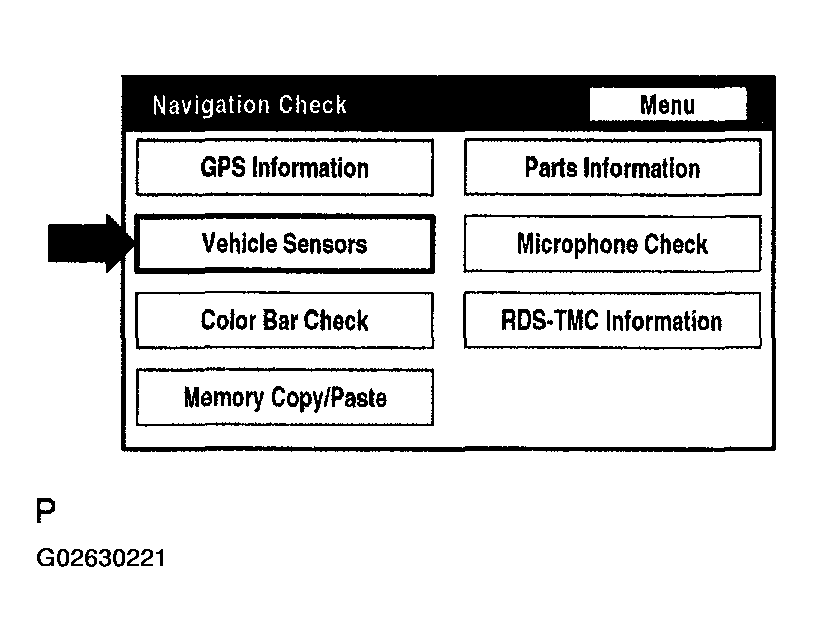

Fig 2: Selecting Vehicle Sensors From Navigation Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check all the signals and sensors when vehicle signal information is displayed.
HINT:

This screen is updated once per second when input signals to the vehicle are changed.

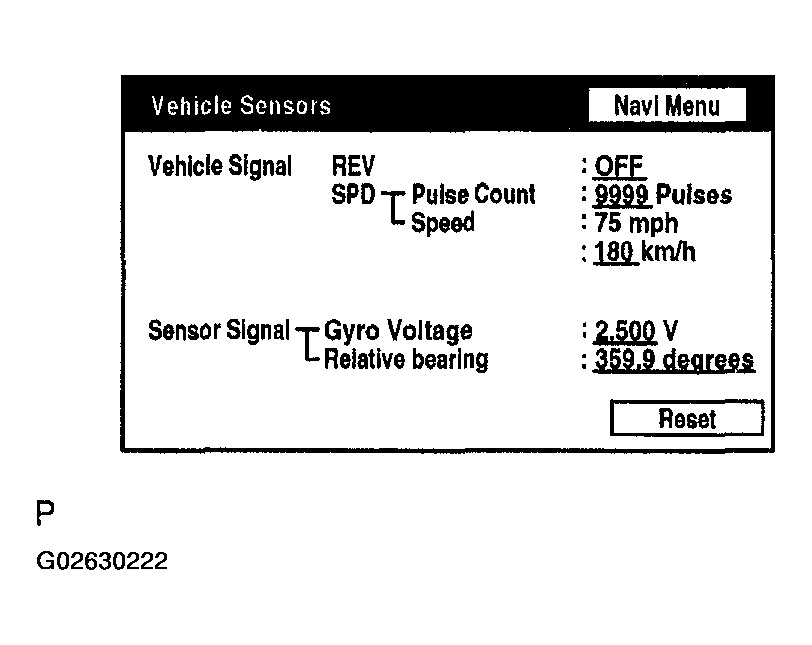

Fig 3: Vehicle Signal Information Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
