Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Proceed to troubleshooting of each circuit in the table below.

HEADLAMP AND TAIL LAMP SYSTEM

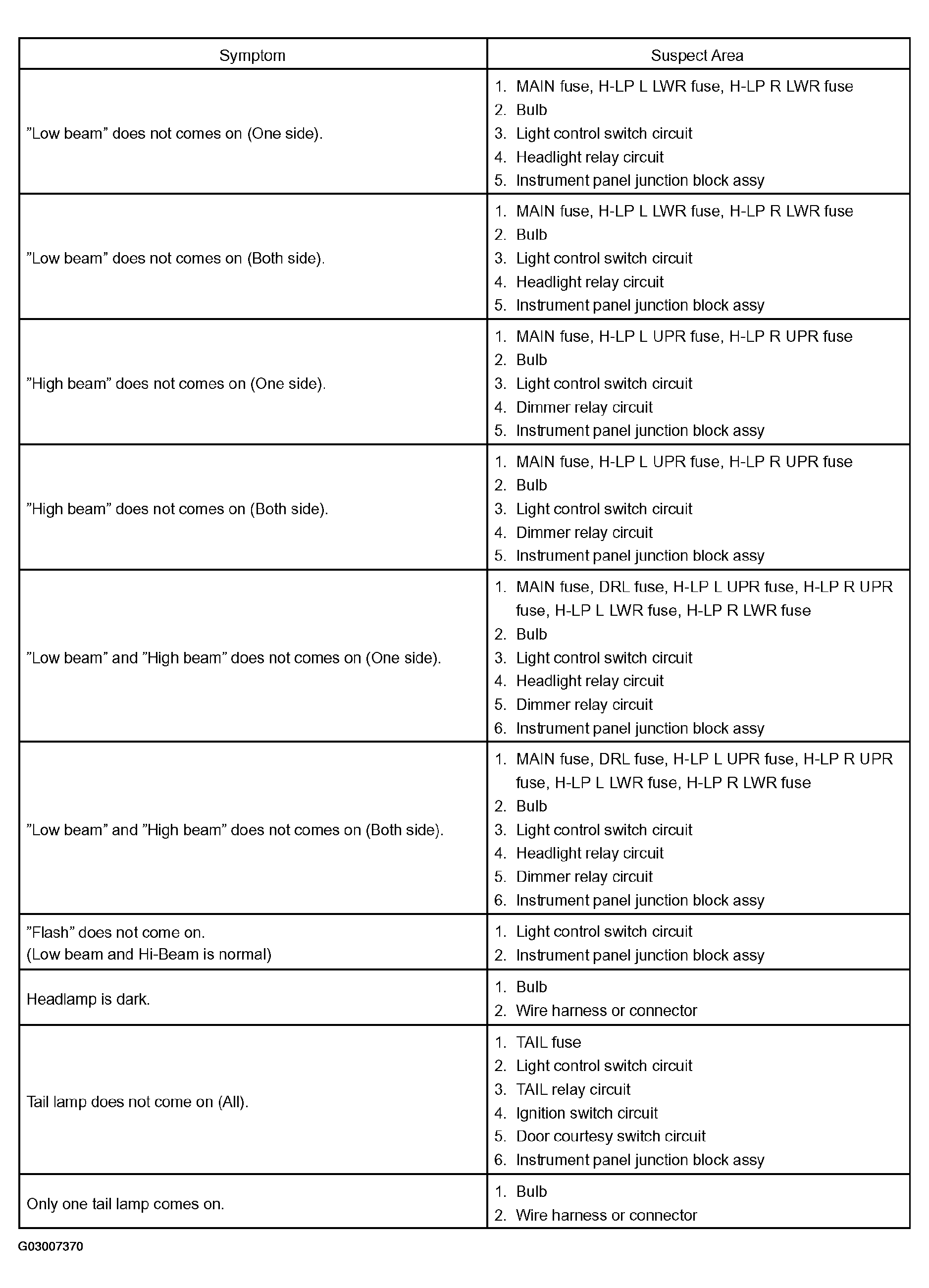

Fig 1: Identifying Headlamp And Tail Lamp System Symptom Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

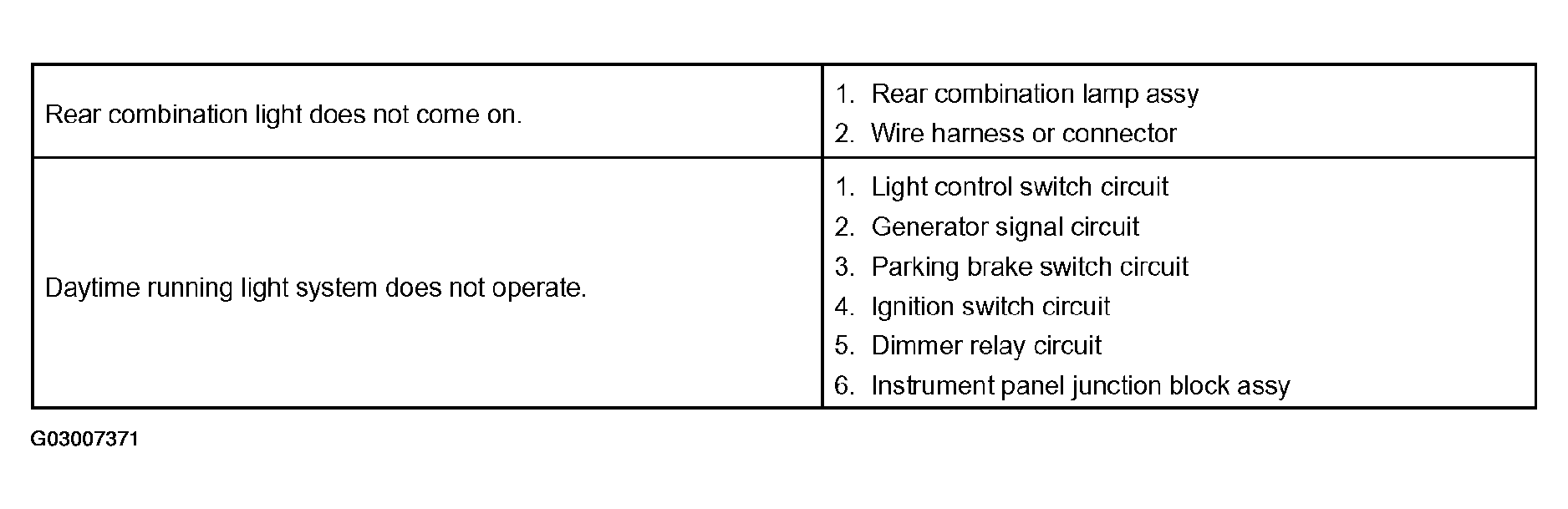

Fig 2: Identifying Headlamp And Tail Lamp System Symptom Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AUTOMATIC LIGHT CONTROL SYSTEM

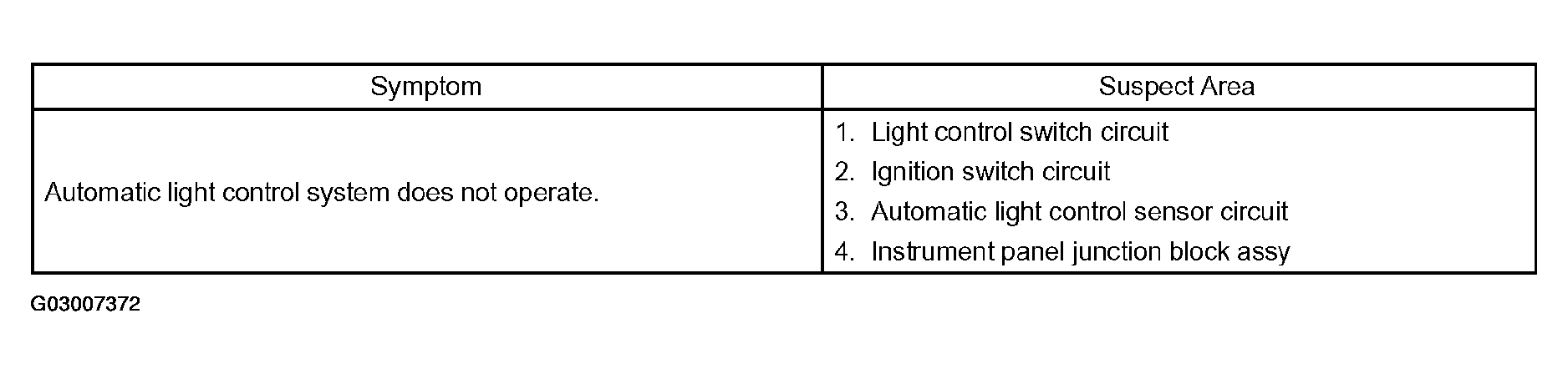

Fig 3: Automatic Light Control Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

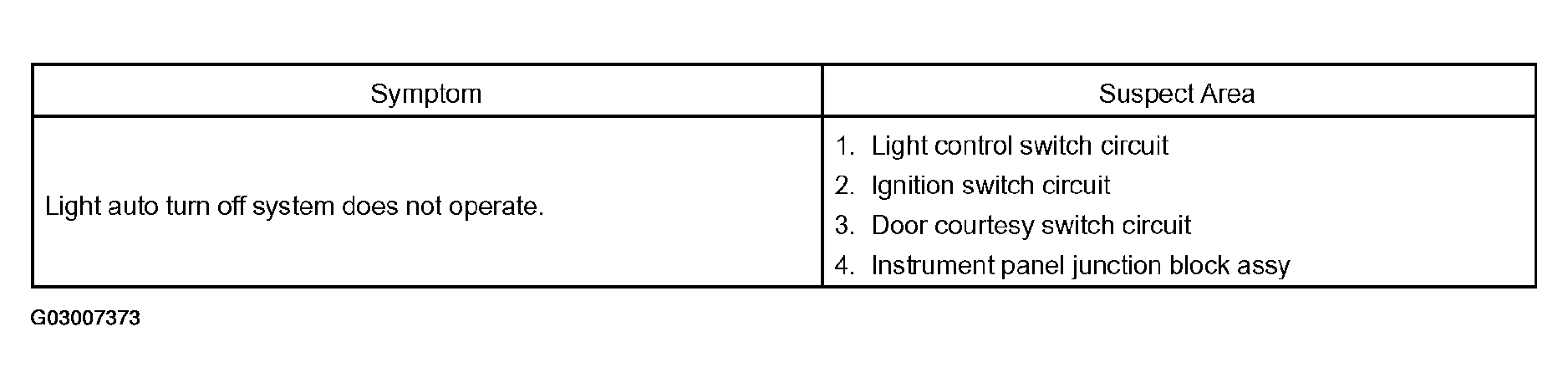

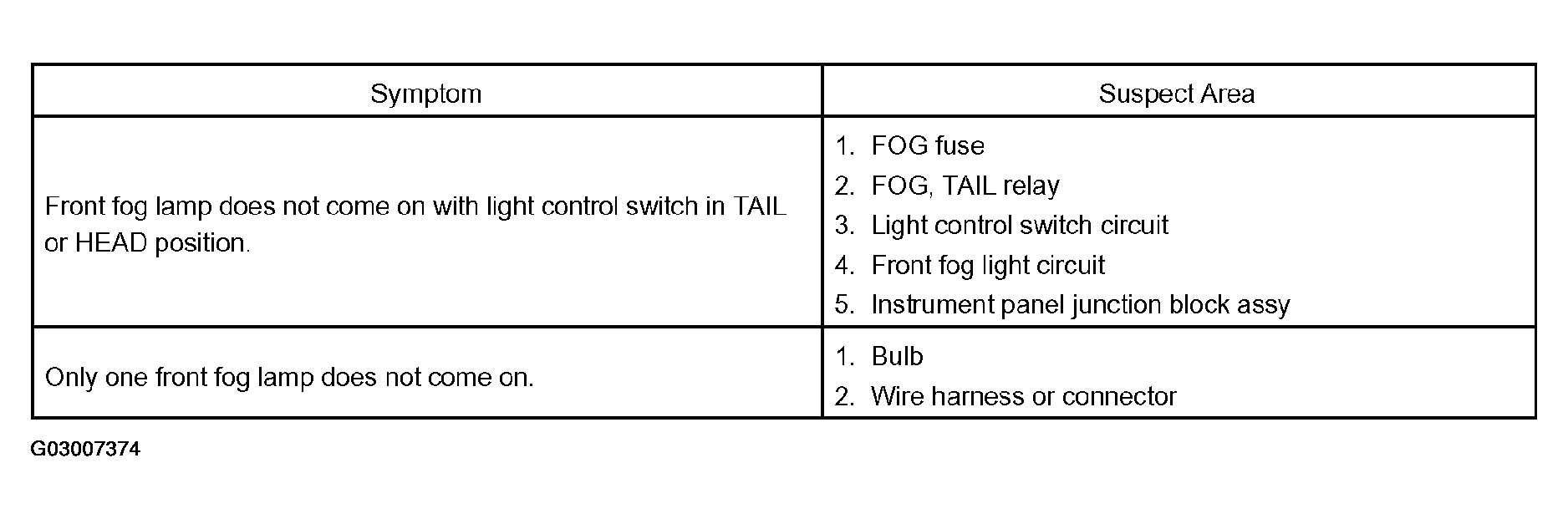

TURN SIGNAL AND HAZARD WARNING SYSTEM

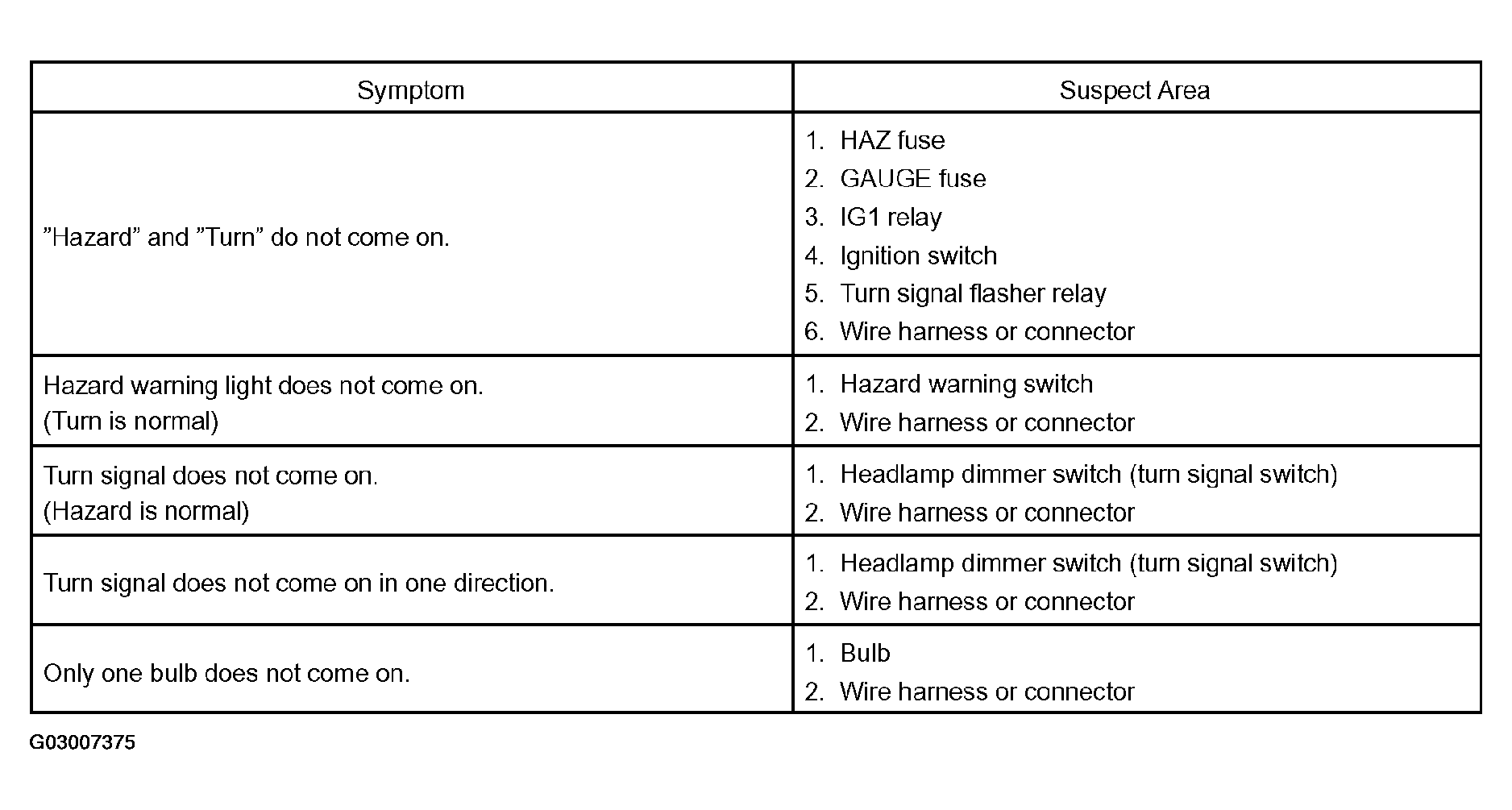

Fig 6: Turn Signal And Hazard Warning System Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

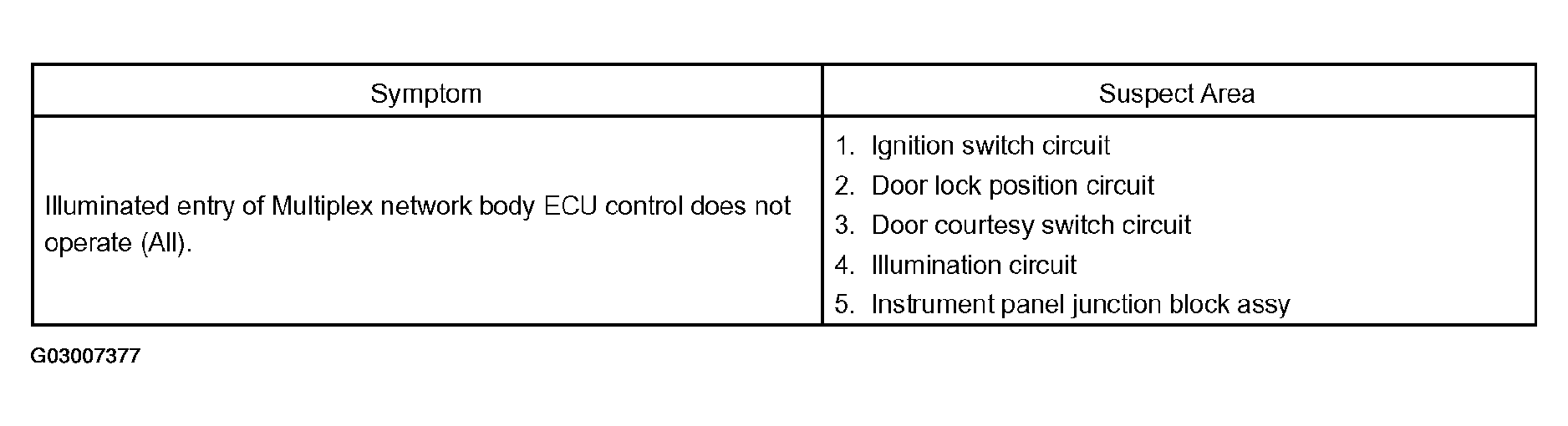

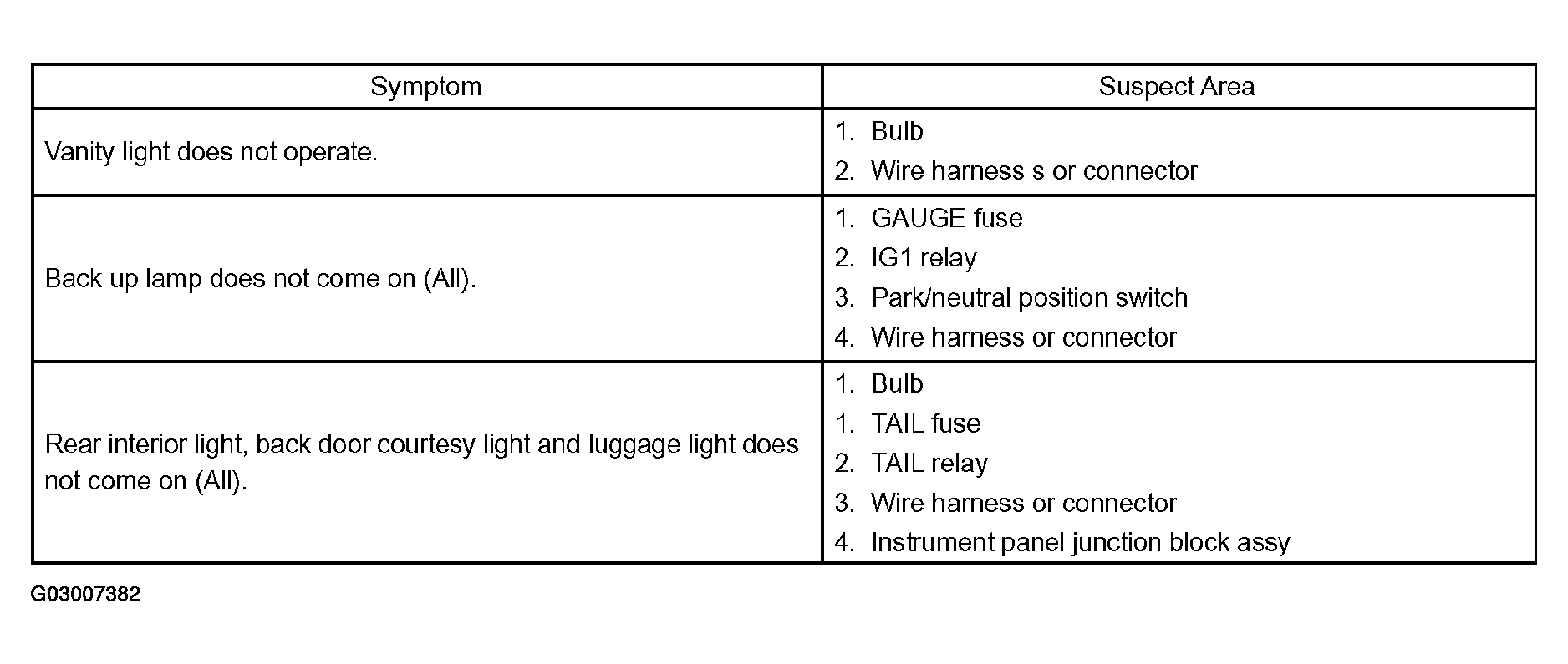

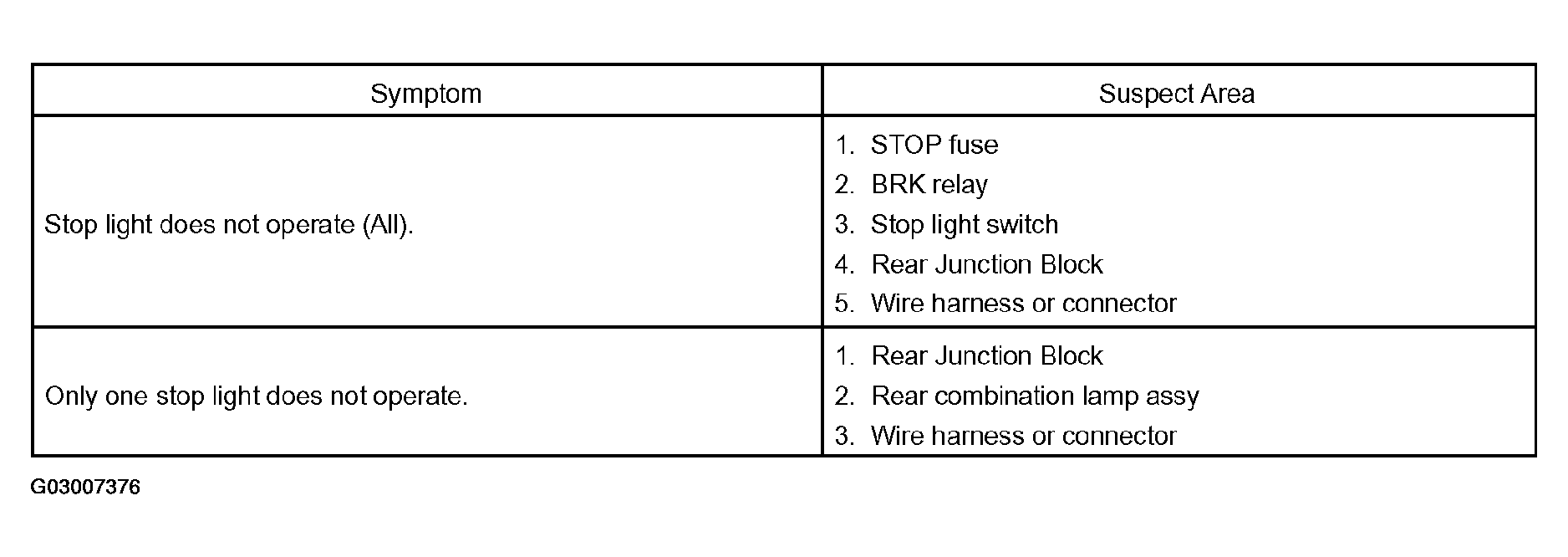

OVERHEAD CONSOLE ILLUMINATION SYSTEM

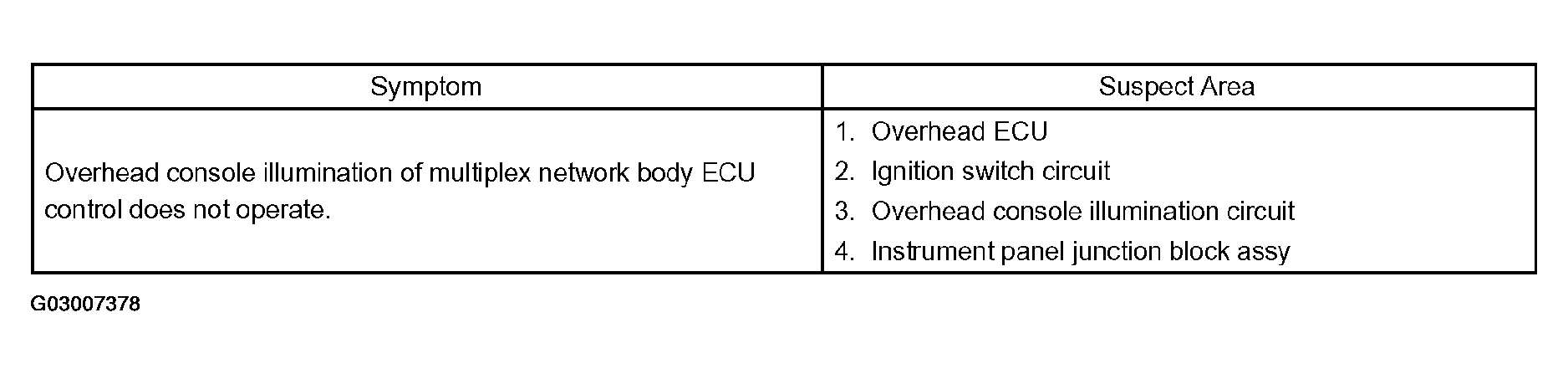

Fig 9: Overhead Console Illumination System Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEP LIGHT AND INSIDE HANDLE ILLUMINATION SYSTEM

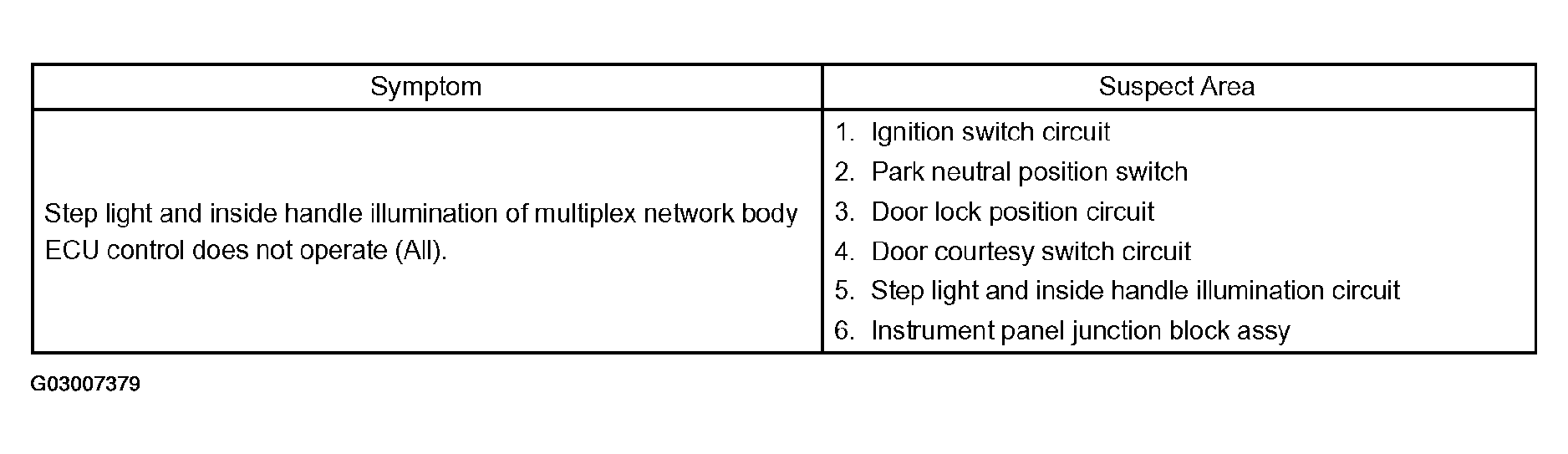

Fig 10: Step Light And Inside Handle Illumination System Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT BEAM LEVEL CONTROL SYSTEM

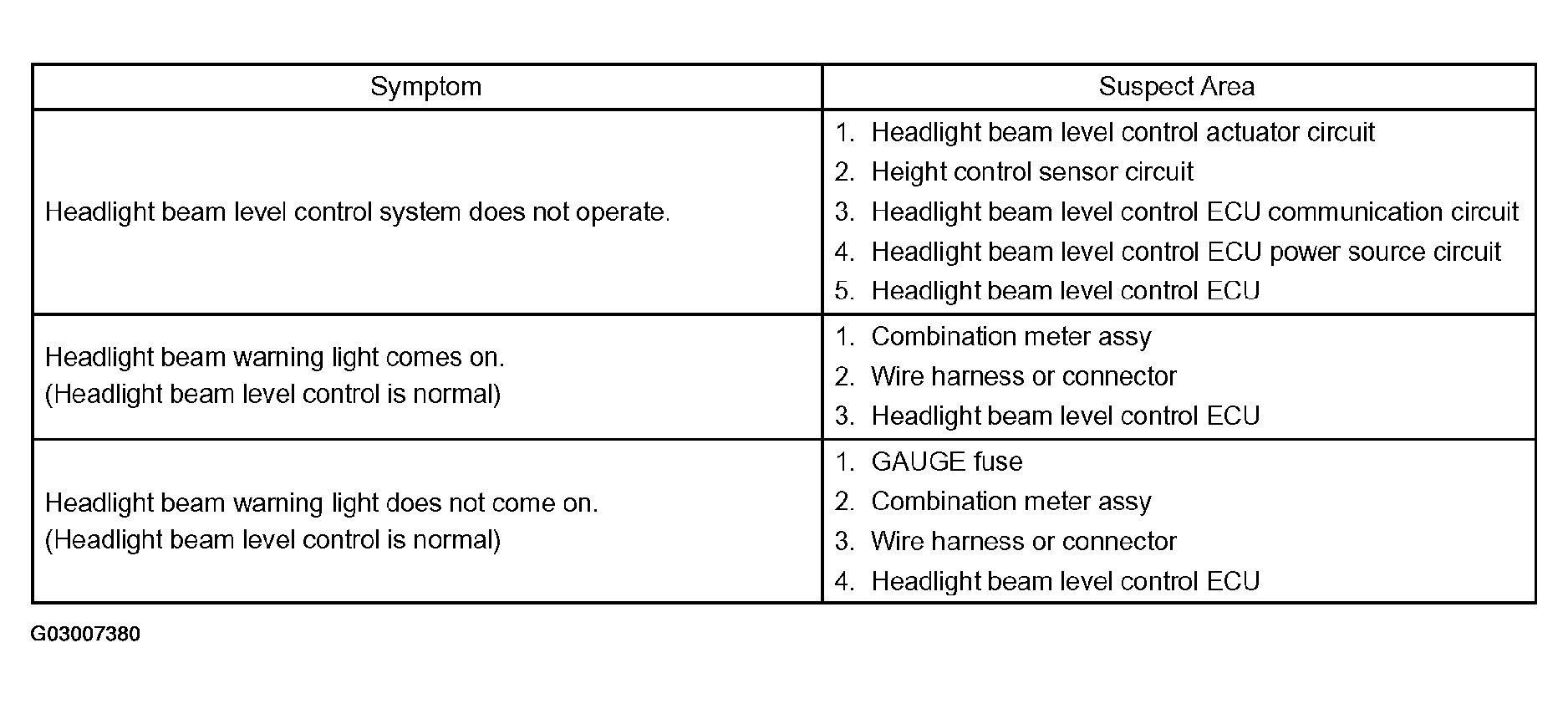

Fig 11: Headlight Beam Level Control System Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AFS

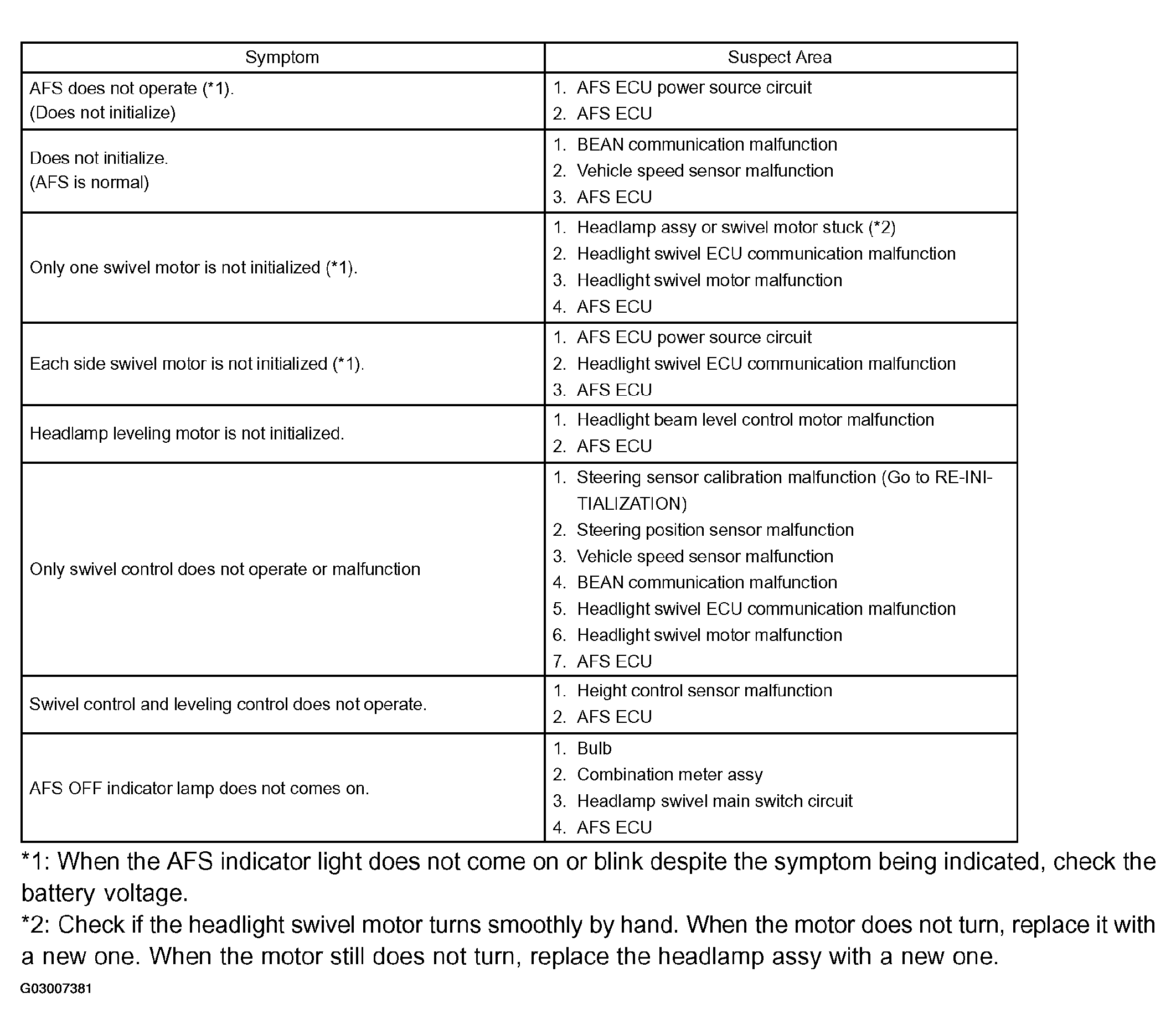

Fig 12: AFS Symptom Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: When the AFS indicator light does not come on or blink despite the symptom being indicated, check the battery voltage.

*2: Check if the headlight swivel motor turns smoothly by hand. When the motor does not turn, replace it with a new one. When the motor still does not turn, replace the headlamp assy with a new one.
