Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER SUB- ASSY - TELEVISION CAMERA ECU)
    1. Disconnect the multi-display controller sub-assy connector R15 and television camera ECU connector T16.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      MULTI-DISPLAY CONTROLLER SUB-ASSY CONNECTOR AND TELEVISION CAMERA ECU CONNECTOR TERMINALS RESISTANCE

      Tester connection Condition Specified condition
      TX3+ - TX1+ Always Below 1 Ω
      TX3- - TX1- Always Below 1 Ω
      TX3+ - Body ground Always 10 kΩ or higher
      TX3- - Body ground Always 10 kΩ or higher

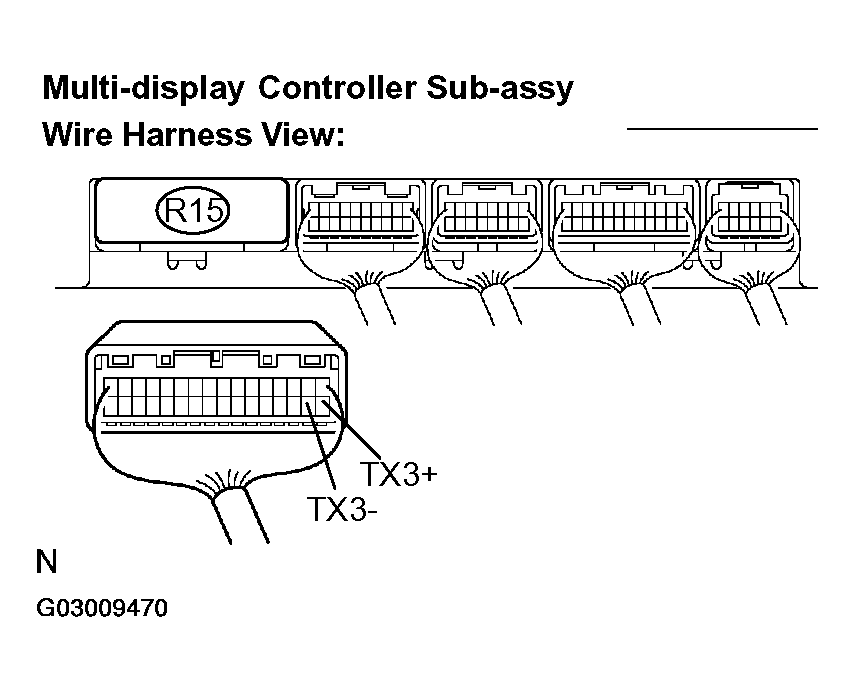

      Fig 1: Disconnecting Multi-Display Controller Sub-Assy Connector R15
      G03009470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

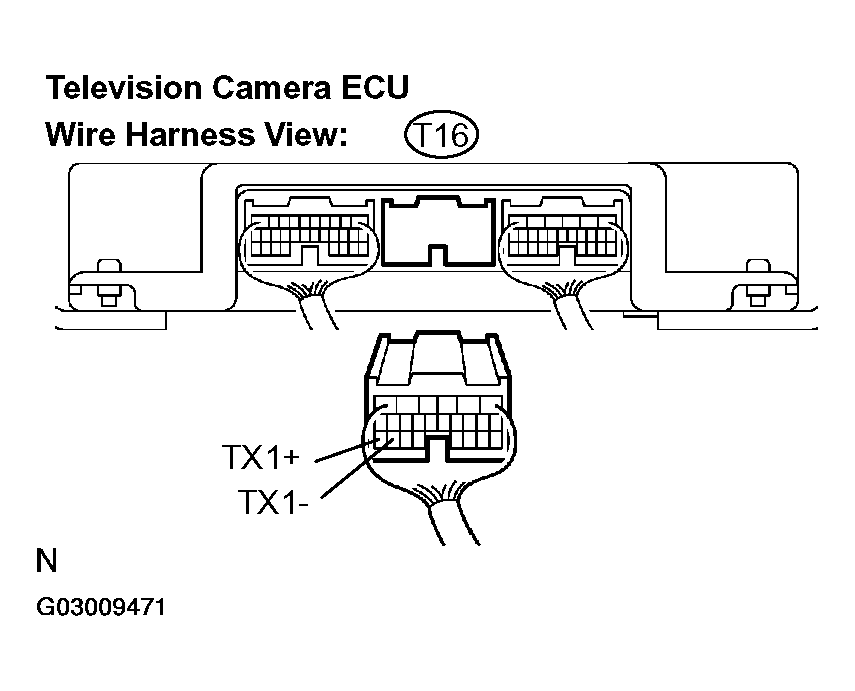

      Fig 2: Disconnecting Television Camera ECU Connector T16
      G03009471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  DIAGNOSTIC TROUBLE CODE CHART
