Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - MULTI-DISPLAY)
    1. Disconnect the navigation ECU connector N3 and multi-display connector M4.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      NAVIGATION ECU CONNECTOR AND MULTI-DISPLAY CONNECTOR TERMINALS RESISTANCE

      Tester connection Condition Specified condition
      IVO+ - VOI+ Always Below 1 Ω
      IVO- - VOI- Always Below 1 Ω
      IVO+ - Body ground Always 10 kΩ or higher
      IVO- - Body ground Always 10 kΩ or higher

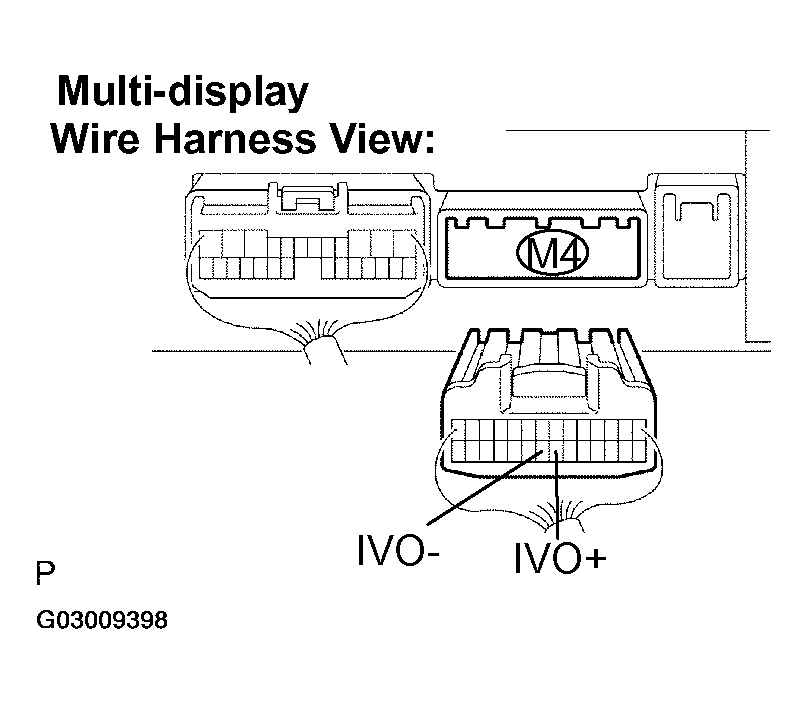

      Fig 1: Disconnecting Multi-Display Connector M4
      G03009398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

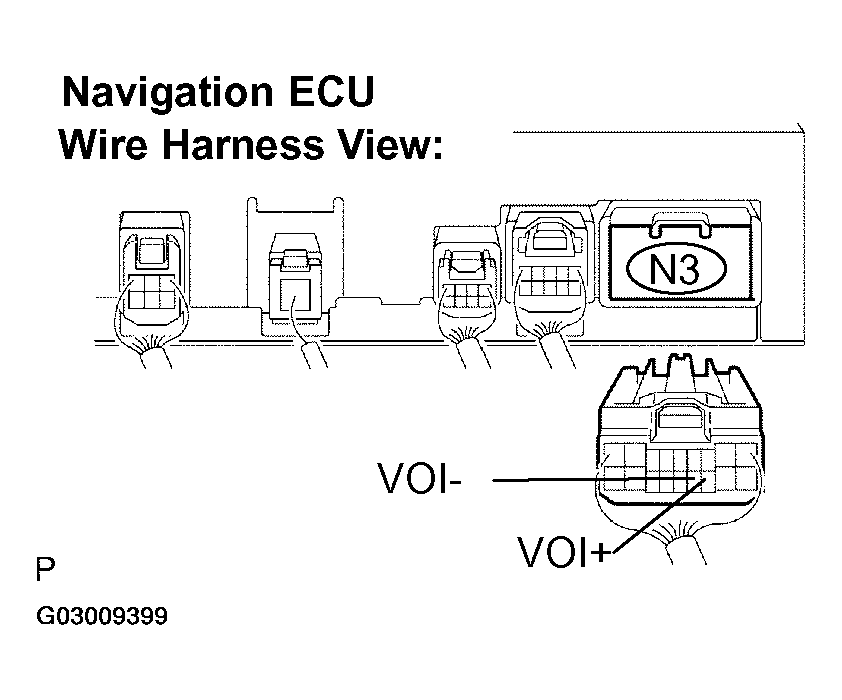

      Fig 2: Disconnecting Navigation ECU Connector N3
      G03009399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
