Display Check Mode (Color Bar Check)

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the color display on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Display Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Color Bar Check" from the "Display Check" screen.

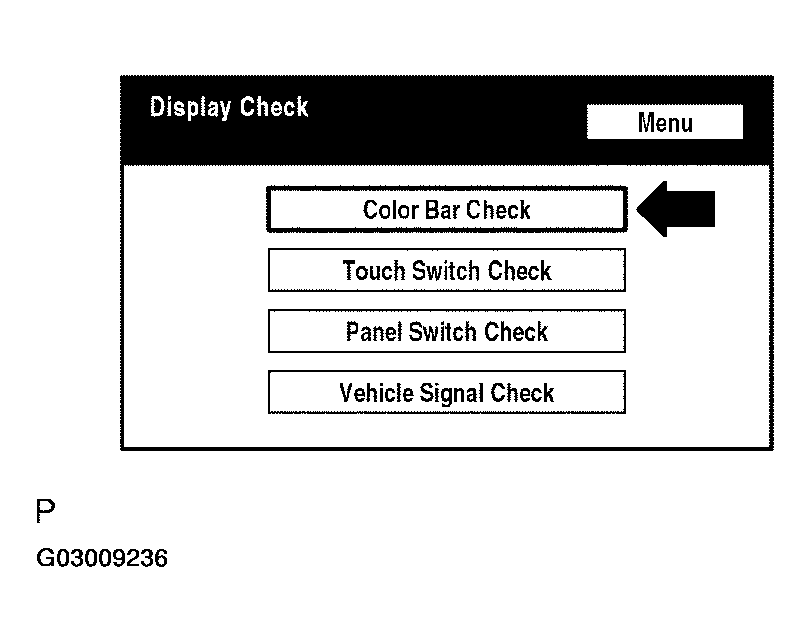

Fig 2: Display Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select a color bar from the "Color Bar Check Mode" screen.
HINT:
- The entire screen turns to the color or stripe selected.
- Touching the display will return to the "Color Bar Check" screen.

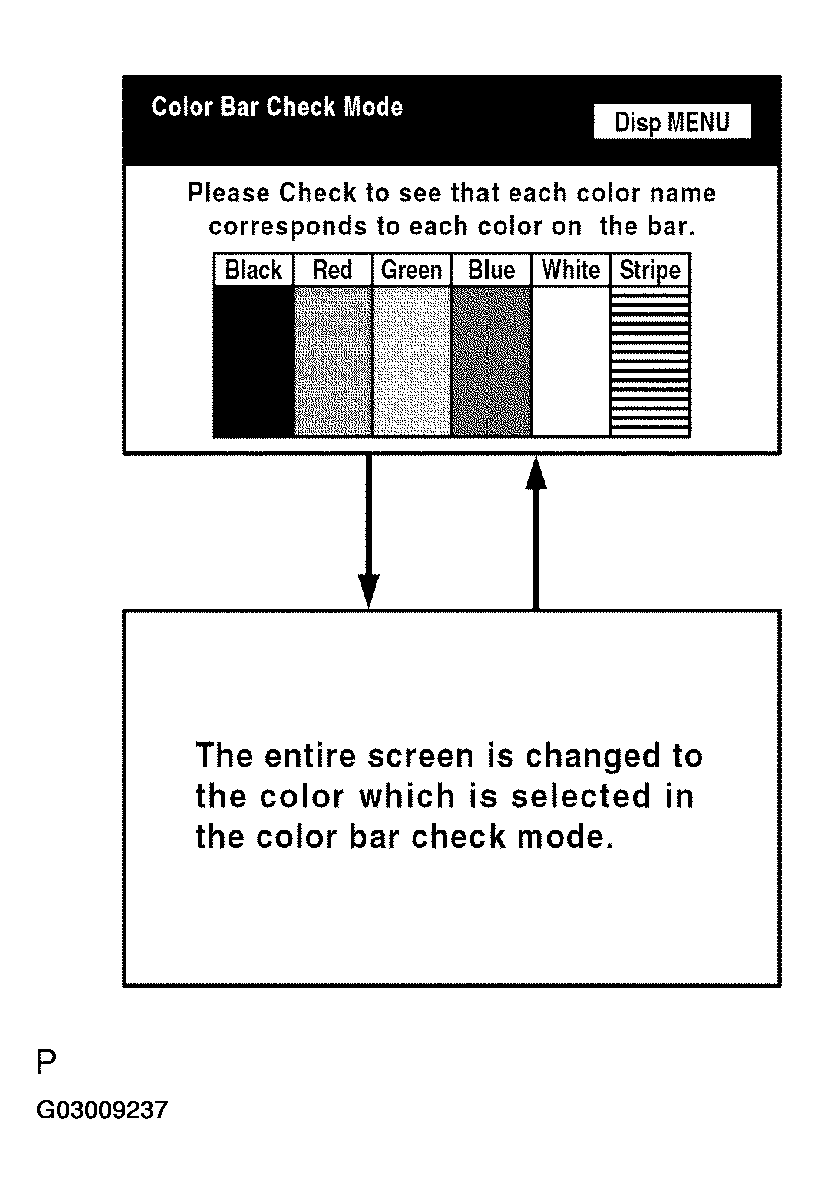

  Fig 3: Display Color Bar Check Mode Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
