Display Check Mode (Panel Switch Check)

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the panel switch operation response on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Display Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

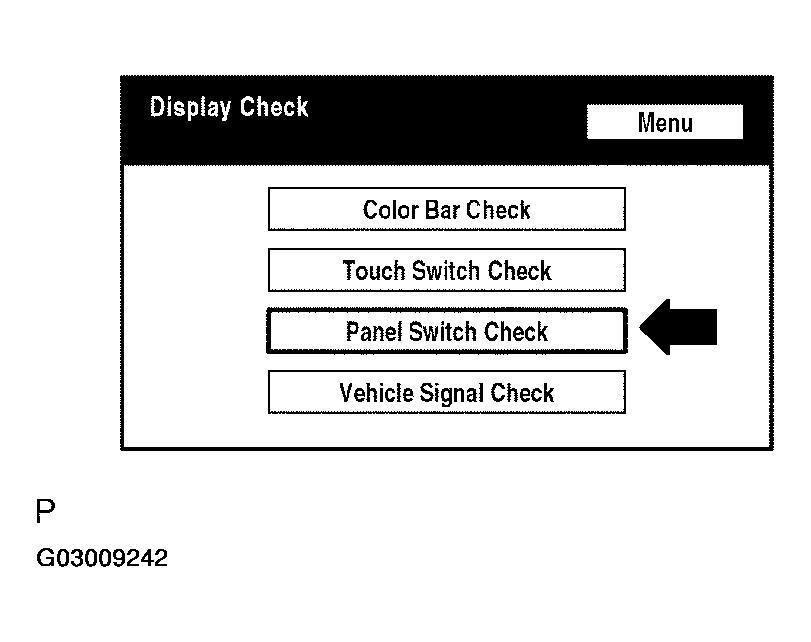

Select "Panel Switch Check" from the "Display Check" screen.

Fig 2: Display Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

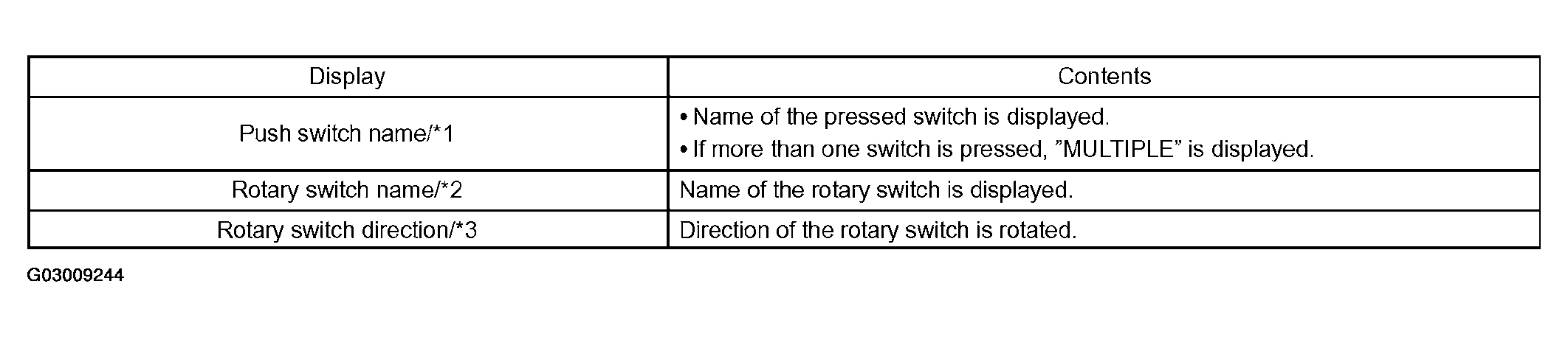

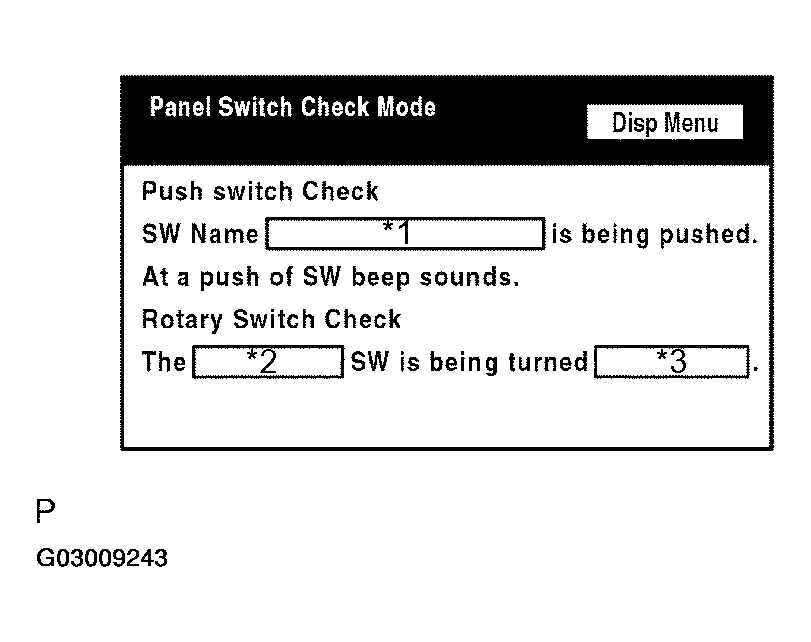

Operate each switch and check that the switch name and condition are correctly displayed.

Fig 3: Display Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Display Panel Switch Check Mode Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
