Display Check Mode (Vehicle Signal Check)

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the vehicle signal status input to the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Display Check" from the "Diagnosis MENU" screen.

Fig 1: Display Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Vehicle Signal Check" from the "Display Check" screen.

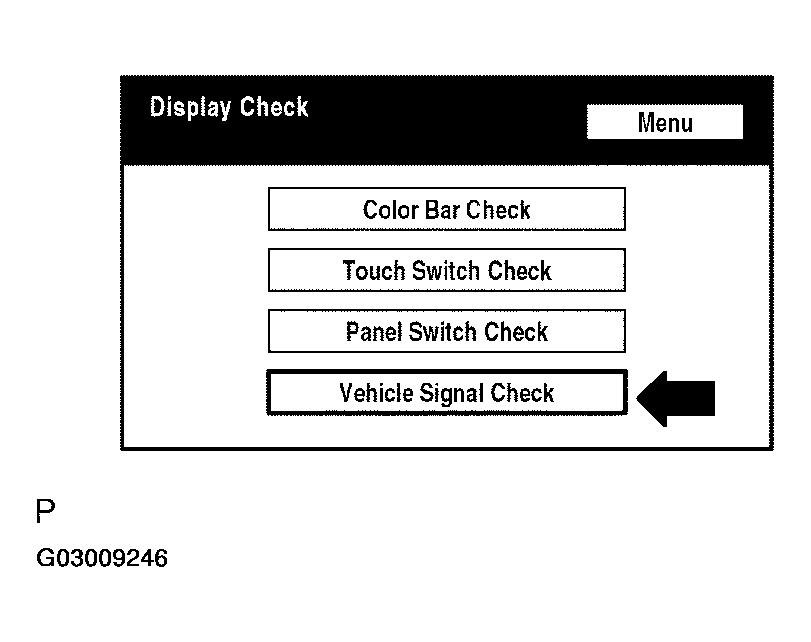

Fig 2: Display Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
HINT:
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.

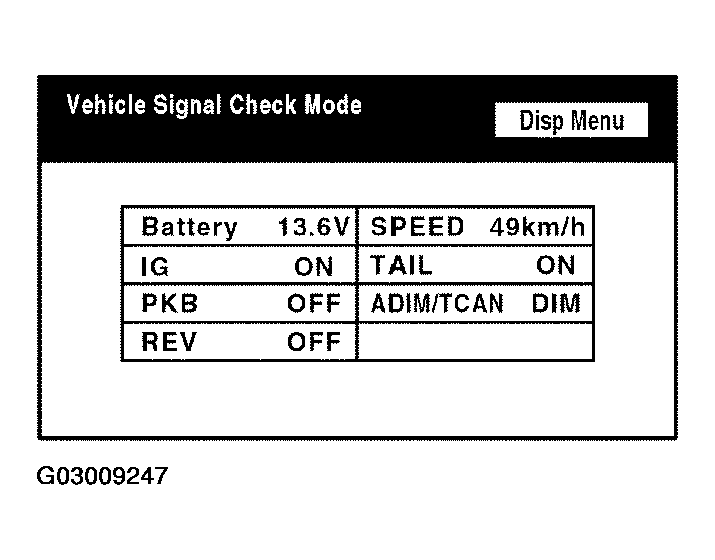

  Fig 3: Display Vehicle Signal Check Mode Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
