Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

NAVIGATION CHECK MODE (VEHICLE SENSORS)
1. Enter the "Navigation Check" mode (Vehicle Sensors) (see NAVIGATION CHECK MODE (VEHICLE SENSORS) ).
2. Check the gyro voltage.
  Standard: 0.1 to 4.5 V

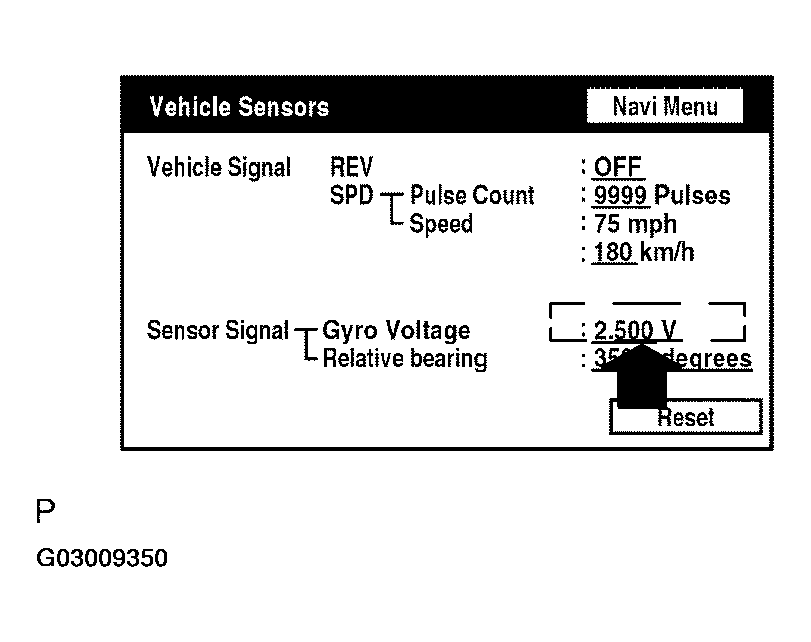

  Fig 1: Display Vehicle Sensors Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE NAVIGATION ECU (SEE NAVIGATION ECU )
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART DIAGNOSTIC TROUBLE CODE CHART
