Inspection Procedure
WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK MAP DISC

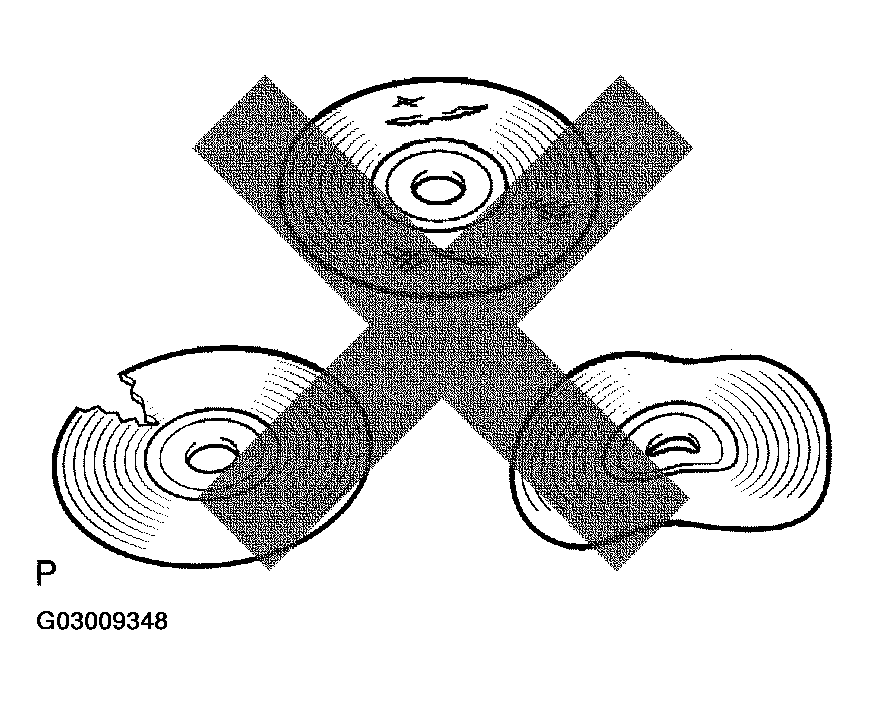

- Check that the map disc is not deformed or cracked.
OK: No deformations or cracks appear on the map disc.
- NG: REPLACE MAP DISC
- OK: Go to next step.
- Check that the map disc is not deformed or cracked.
- CHECK DISPLAY
- Check that displays other than the navigation display are complete.
OK: No other incomplete displays are found.
- OK: REPLACE NAVIGATION ECU (SEE NAVIGATION ECU )
- NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Check that displays other than the navigation display are complete.
