Navigation Check Mode (Microphone Check)

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The microphone is checked in the "Navigation Check (Microphone Check)" mode.
Illustrations may differ from the actual vehicle depending on vehicle specifications.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH )
Select "Navigation Check" from the "Diagnosis MENU" screen.

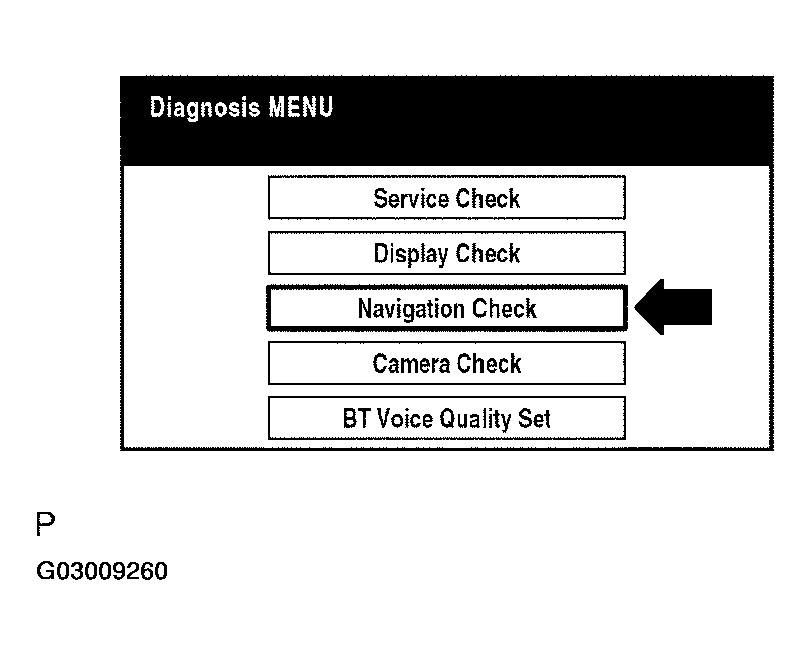

Fig 1: Display Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Microphone Check" from the "Navigation Check" screen.

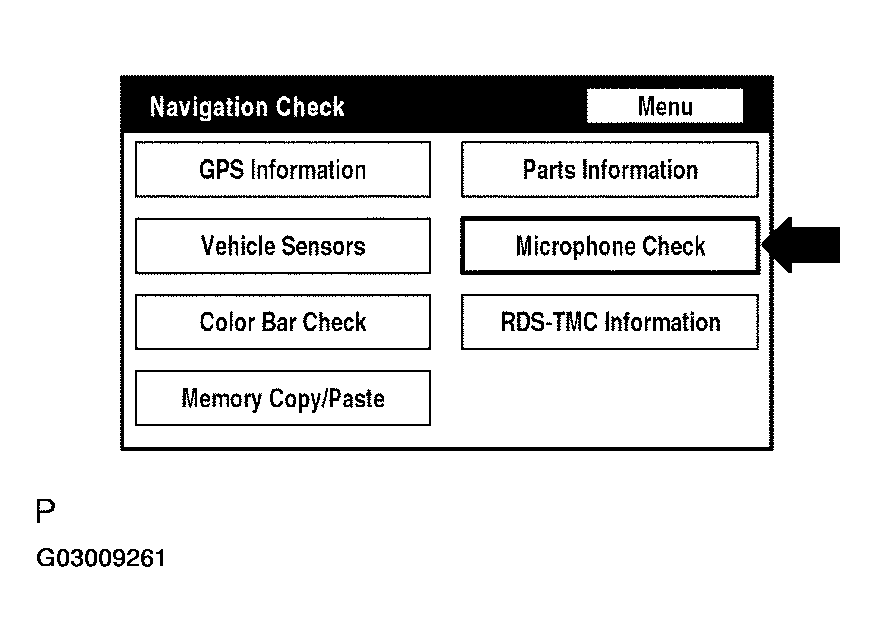

Fig 2: Display Navigation Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Perform the microphone check by following the directions on the "Microphone Check" screen.

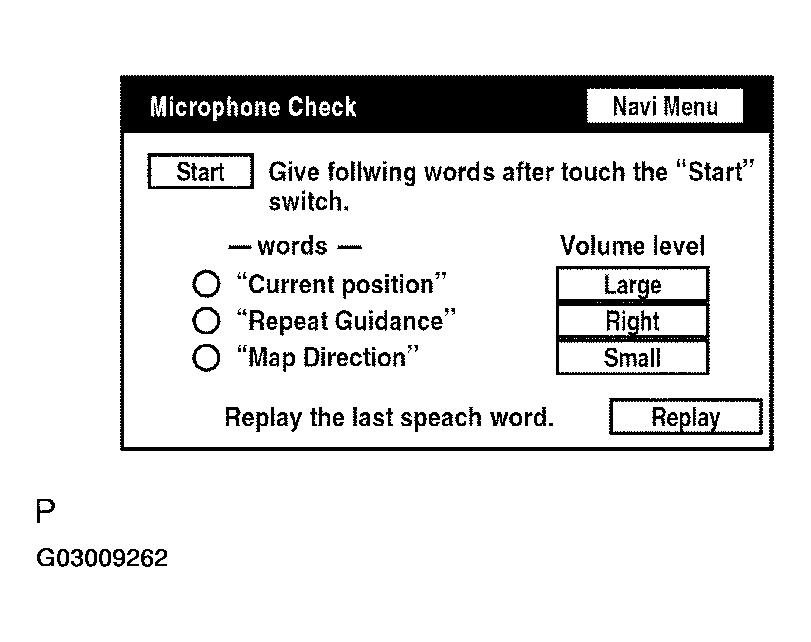

Fig 3: Display Microphone Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
