Navigation Check Mode (Parts Information)

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode displays product information on the navigation systems and discs.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Navigation Check" from the "Diagnosis MENU" screen.

Fig 1: Display Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Parts Information" from the "Navigation Check" screen.

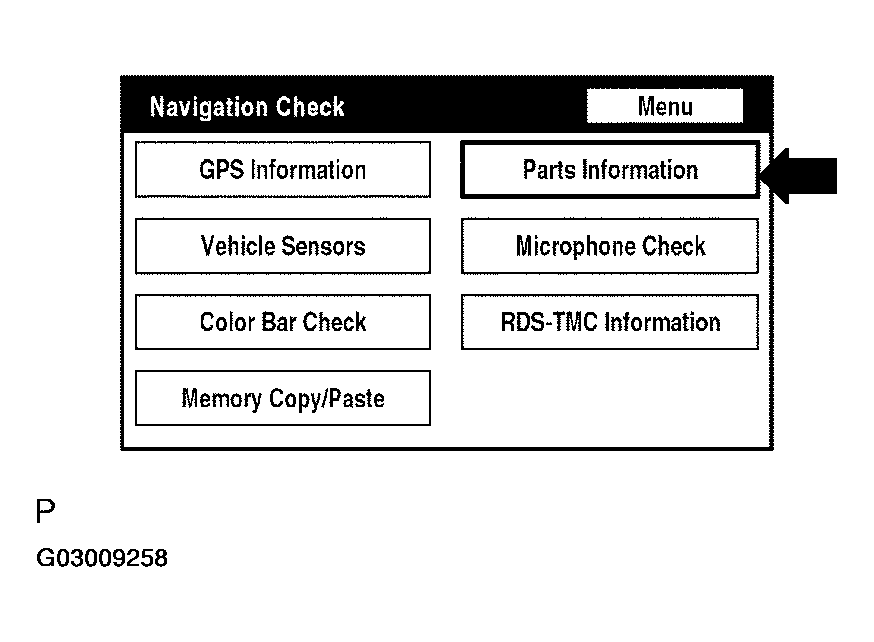

Fig 2: Display Navigation Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the navigation and disc information when the "Parts Information" screen is displayed.

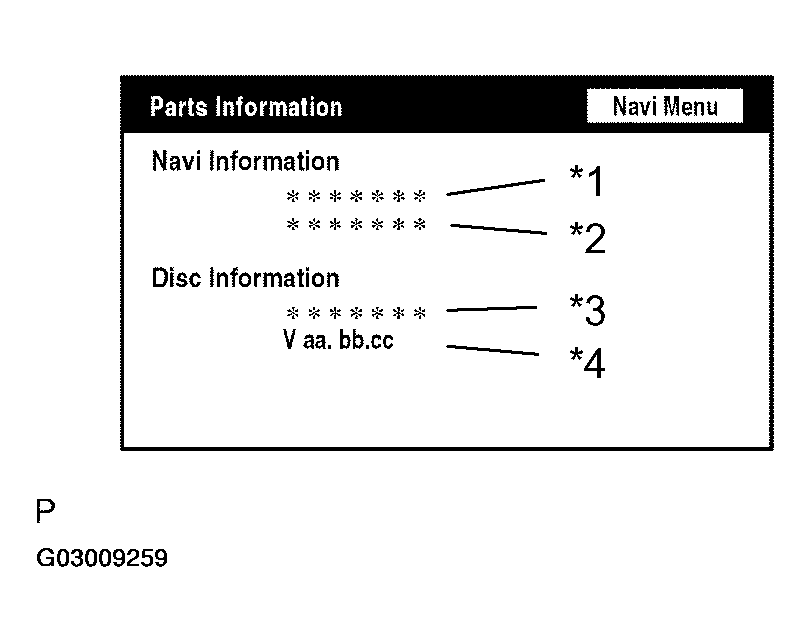

Fig 3: Display Parts Information Screen

DISPLAY AND CONTENTS

Display	Contents
Navigation Manufacturer/*1	Navigation ECU manufacturer name is displayed.
Navigation Version/*2	Navigation ECU version is displayed.
Disc Manufacturer/*3	Map disc manufacturer is displayed.
Disc Version/*4	Map disc version is displayed.
