Inspection Procedure

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK OPERATION OF SPEEDOMETER
1. Drive the vehicle and check if the function of the speedometer in the combination meter is normal.
  OK: Actual vehicle speed and the speed indicated on the speedometer are the same.

  HINT:

  The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.
1. NG: CHECK COMBINATION METER ASSY (SEE PROBLEM SYMPTOMS TABLE )
2. OK: Go to next step.
INSPECT MULTI-DISPLAY
1. Disconnect the multi-display connector M5.
2. Measure voltage.
  1. Jack up either one of the drive wheels.
  2. Move the shift lever to the neutral position.
  3. Turn the ignition switch to the ON position.
  4. Measure the voltage between terminal SPD of the multi-display and body ground when the drive wheels are turned slowly.
  OK: Voltage pulses as shown below.

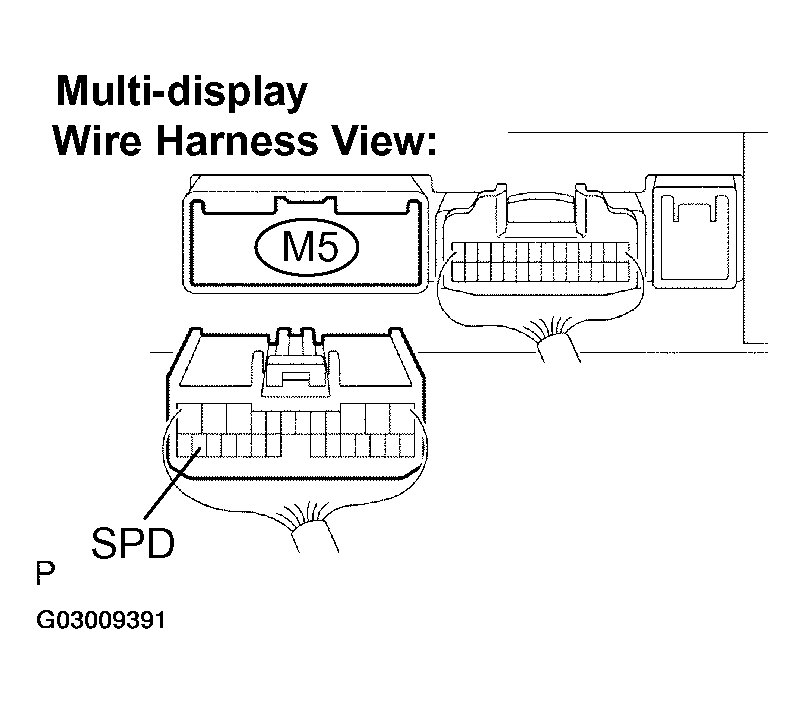

  Fig 1: Disconnecting Multi-Display Connector M5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

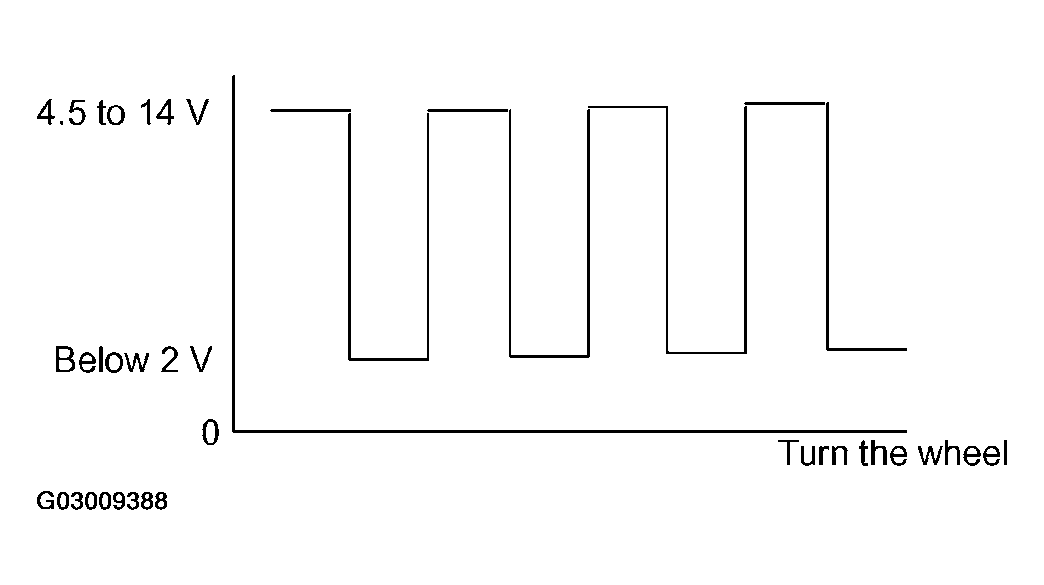

  Fig 2: Multi-Display Connector Terminals Voltage Graph
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: REPLACE MULTI-DISPLAY (SEE MULTI-DISPLAY ASSY )
2. NG: GO TO NEXT STEP.

CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSY - MULTI-DISPLAY)

Disconnect the multi-display connector M5 and combination meter assy connector C8.

Measure the resistance according to the value(s) in the table below.

Standard:

MULTI-DISPLAY CONNECTOR AND COMBINATION METER ASSY CONNECTOR TERMINALS RESISTANCE

Tester connection	Condition	Specified condition
SPD - C8-6	Always, ignition switch OFF	Below 1 Ω

Fig 3: Disconnecting Multi-Display Connector M5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

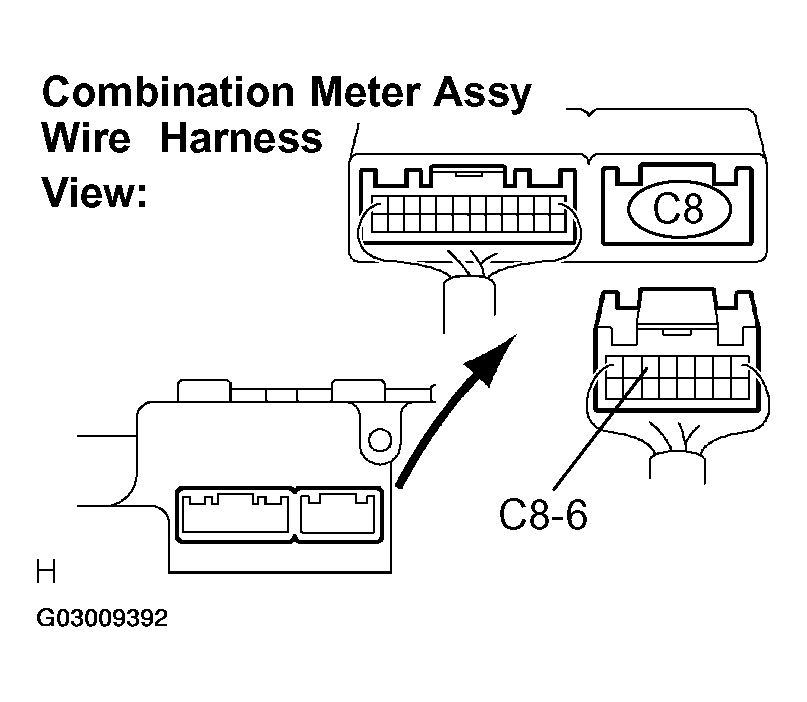

Fig 4: Disconnecting Combination Meter Assy Connector C8

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step.

CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSY - MULTI-DISPLAY)

Disconnect the multi-display connector M5 and combination meter assy connector C8.

Measure the resistance according to the value(s) in the table below.

Standard:

MULTI-DISPLAY CONNECTOR TERMINALS RESISTANCE

Tester connection	Condition	Specified condition
SPD - Body ground	Ignition switch OFF	10 kΩ higher

Fig 5: Disconnecting Multi-Display Connector M5

HINT:

If the resistance between terminal SPD and body ground is less than 10 kΩ, there may be a short in a wire harness, connector, or ECU.

Fig 6: Disconnecting Combination Meter Assy Connector C8

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR CHECK EACH ECU
OK: REPLACE COMBINATION METER ASSY (SEE COMBINATION METER ASSY )
