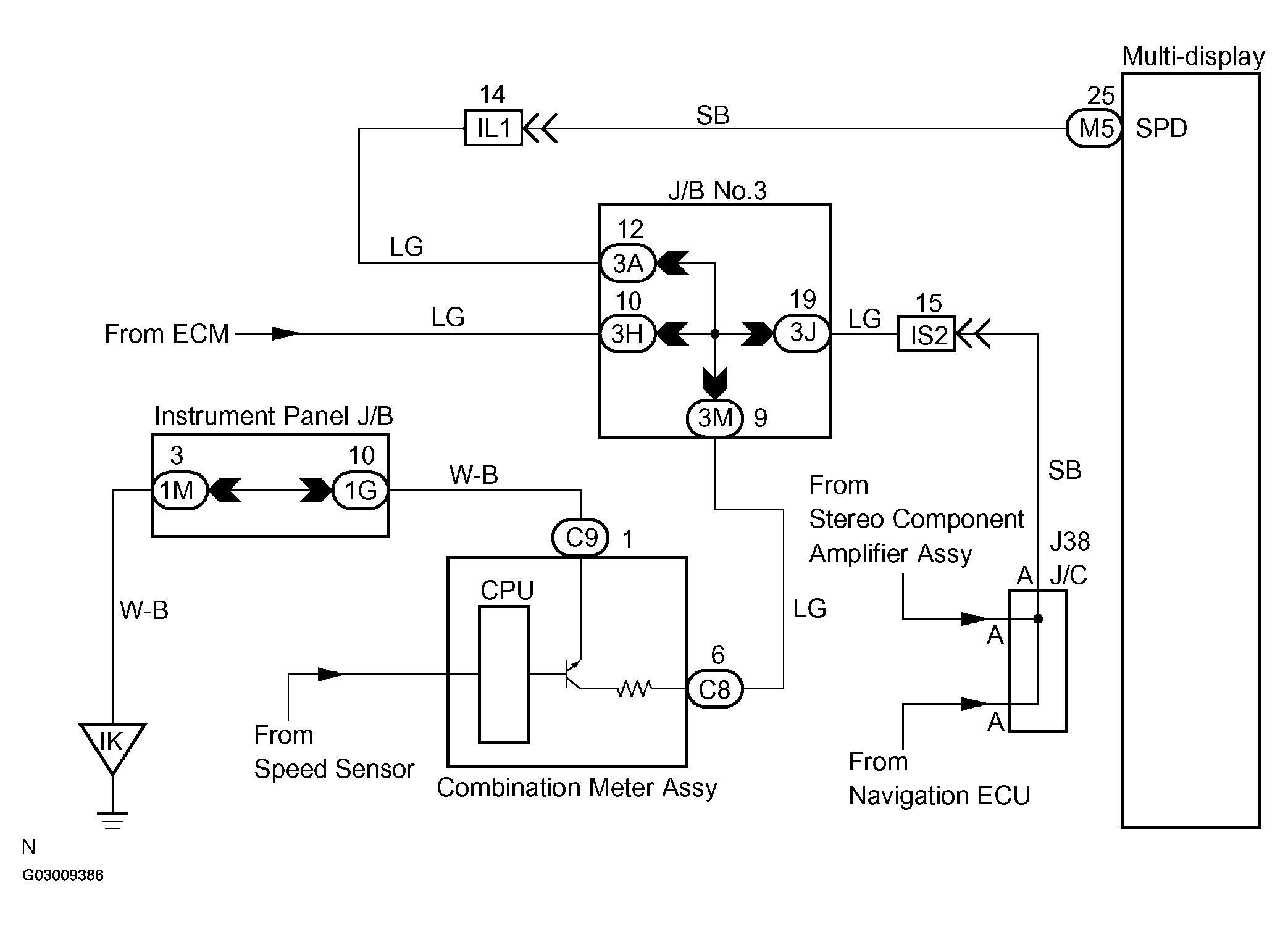

Speed Signal Circuit (Multi-Display - Combination Meter ASSY: Wiring Diagram

WARNING: This page is about a different car, the 2005 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
