Multi-Display Controller Sub-ASSY: Replacement

HINT:

See LOCATION

1. REMOVE DECK BOARD SUB-ASSY (See step 15 in  REPLACEMENT  )
2. REMOVE TONNEAU COVER ASSY
3. REMOVE DECK FLOOR BOX FRONT (See step 19 in  REPLACEMENT  )
4. REMOVE DECK FLOOR BOX REAR (See step 20 in  REPLACEMENT  )
5. REMOVE DECK BOARD SUB-ASSY NO. 2 (See step 21 in  REPLACEMENT  )
6. REMOVE DECK BOARD SUB-ASSY NO. 3
7. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
8. REMOVE DECK SIDE TRIM BOX RH (See step 24 in  REPLACEMENT  )
9. REMOVE REAR FLOOR FINISH PLATE (See step 26 in  REPLACEMENT  )
10. REMOVE REAR FLOOR FINISH SIDE PLATE RH (See step 27 in  REPLACEMENT  )
11. SEPARATE DECK TRIM SIDE PANEL ASSY RH (See step 34 in  REPLACEMENT  )

    HINT:

    Turn up the deck trim side panel assy RH until the multi-display controller w/bracket can be removed.

12. REMOVE TELEVISION CAMERA ECU (W/EMV & NAVIGATION SYSTEM) (See  TELEVISION CAMERA ECU  )

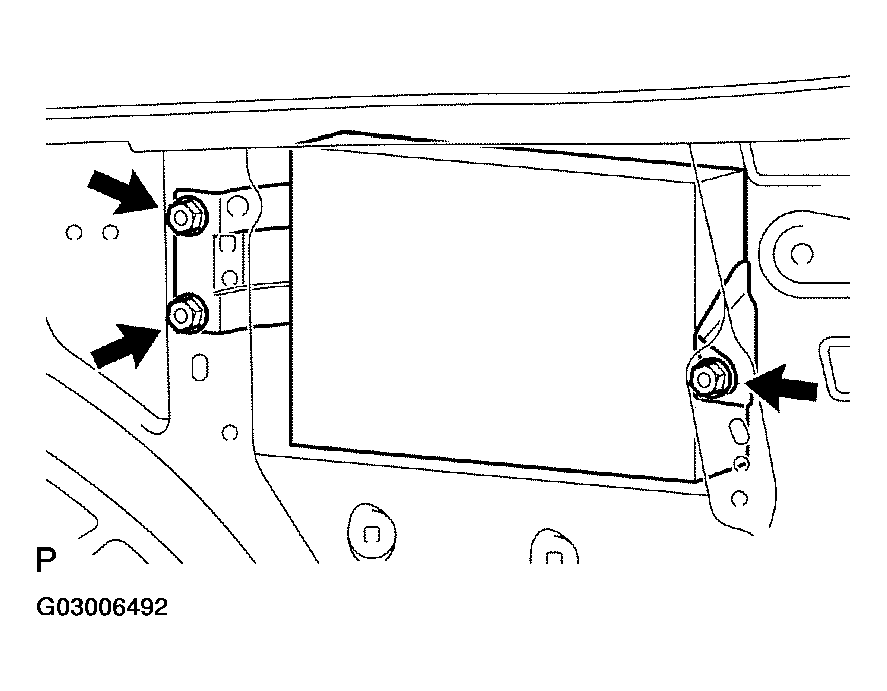

13. REMOVE MULTI-DISPLAY CONTROLLER W/B RACKET
    1. Disconnect the connector.
    2. Remove the 3 nuts and the multi-display controller w/bracket.
    Fig 1: Removing Multi-Display Controller W/B Racket
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

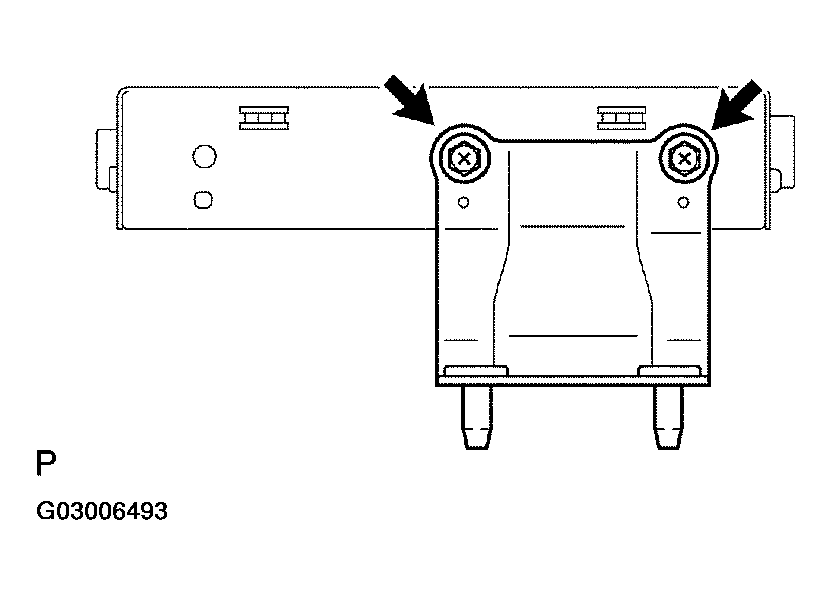

14. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
    1. Remove the 2 screws and the multi-display controller bracket A.
       Fig 2: Removing Multi-Display Controller Bracket A

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

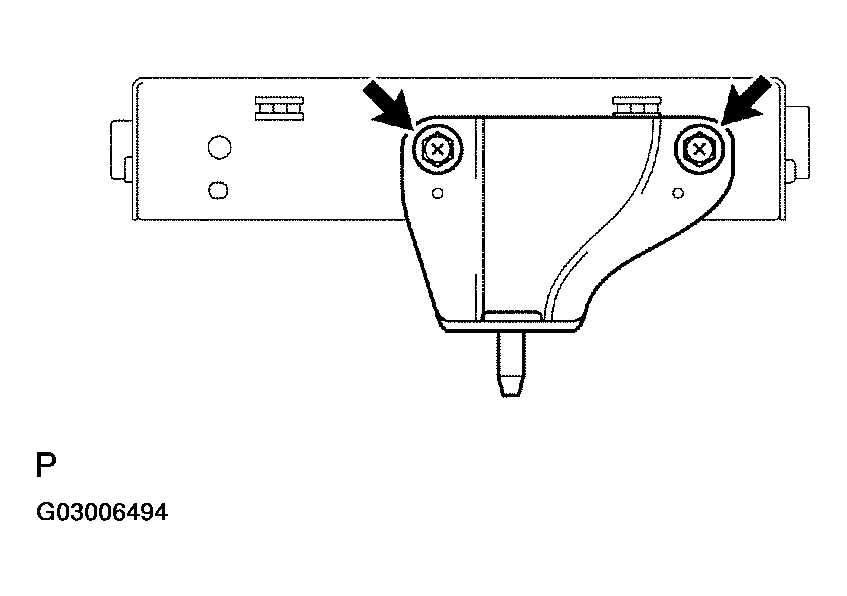

15. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B
    1. Remove the 2 screws and the multi-display controller bracket B.
       Fig 3: Removing Multi-Display Controller Bracket B

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSY
