Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When the distance control ECU is replaced with a new one, initialization must be performed (See ADJUSTMENT  ).
  1. INSPECT DISTANCE CONTROL ECU
    1. Turn the ignition switch on.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

      Tester Connection Condition Specified Condition
      D2-16 (MODE) - D2-12 (GND) Distance control switch ON (pushed) 0 to 2V
      Distance control switch OFF (not pushed) 10 to 14 V

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    Fig 1: Identifying D2 GND & MODE Connector Terminals
    G05273686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to Next Step

  2. INSPECT DISTANCE CONTROL SWITCH CIRCUIT
    1. Disconnect the D2 connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

      Tester connection Condition Specified condition
      D2-16 (MODE) - Body ground Distance control switch ON (pushed) Below 1 Ω
      Distance control switch OFF (not pushed) 10 kΩ or higher
      Fig 2: Identifying D2 MODE Connector Terminals
      G05273687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - SPIRAL CABLE)

    NG: Go to Next Step

  3. INSPECT STEERING PAD SWITCH ASSEMBLY
    1. Remove the steering pad (See REMOVAL ).

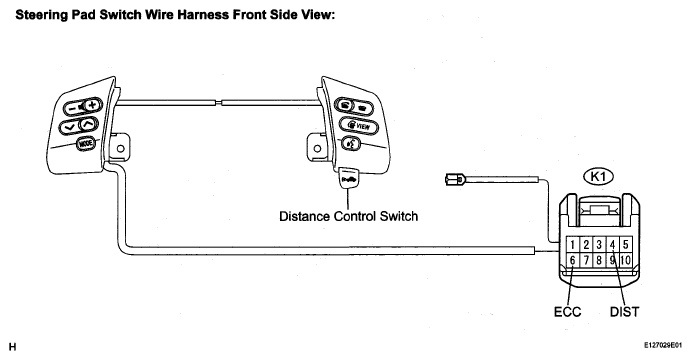

      Fig 3: Identifying Distance Control Switch
      G05273688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the K1 connector from the spiral cable.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

      Tester Connection Condition Specified Condition
      K1-4 (DIST) - K1-6 (ECC) Distance control switch ON (pushed) Below 1 Ω
      K1-4 (DIST) - K1-6 (ECC) Distance control switch OFF (not pushed) 10 kΩ or higher

    OK: Go to step   6

    NG: Go to Next Step

  4. INSPECT STEERING PAD SWITCH CABLE
    1. Remove the steering pad switch cable.

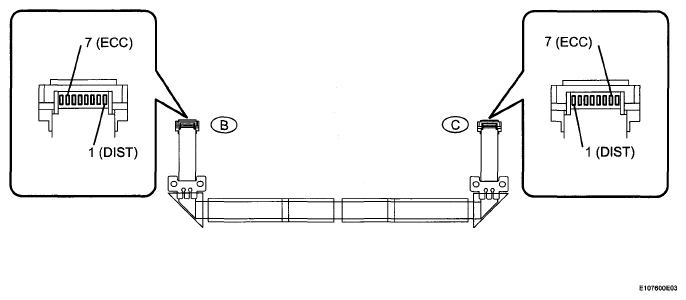

      Fig 4: Identifying Steering Pad Switch Cable
      G05273689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

      Tester Connection Condition Specified Condition
      B-1 (DIST) - C-1 (DIST) Always Below 1 Ω
      B-7 (ECC) - C-7 (ECC) Always Below 1 Ω

    NG: REPLACE STEERING PAD SWITCH CABLE

    OK: Go to Next Step

  5. INSPECT STEERING PAD SWITCH RH
    1. Connect the steering pad switch cable to the steering pad switch RH.

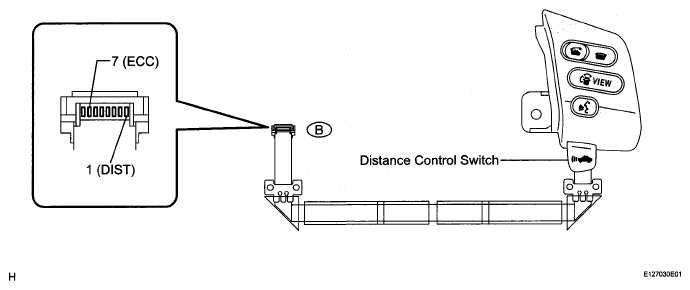

      Fig 5: Identifying Distance Control Switch
      G05273690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

      Tester Connection Condition Specified Condition
      B-1 (DIST) - B-7 (ECC) Distance control switch ON Below 1 Ω
      B-1 (DIST) - C-7 (ECC) Distance control switch OFF 10 kΩ or higher

    NG: REPLACE STEERING PAD SWITCH

    OK: REPLACE STEERING PAD SWITCH LH

  6. CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - SPIRAL CABLE)
    NOTE: The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the page shown in the brackets.

    HINT:

    1. Remove the spiral cable.
    2. Disconnect the D2 connector from the distance control ECU.

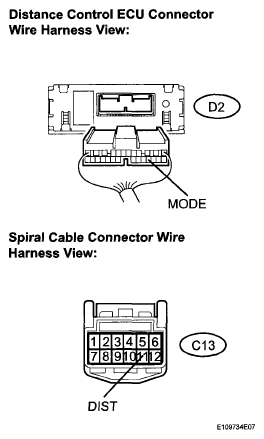

      Fig 6: Identifying D2 & C13 Connectors Terminals
      G05273691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

      Tester Connection Condition Specified Condition
      C13-11 (DIST) - D2-16 (MODE) Always Below 1 Ω
      C13-11 (DIST) - Body ground Distance control switch OFF 10 kΩ or higher
      Distance control switch ON Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE SPIRAL CABLE
