Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Be sure to read DESCRIPTION before performing the following procedures.

CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT
Refer to MULTI-DISPLAY POWER SOURCE CIRCUIT .

If the power source circuit is operating normally, proceed to the next step.

INSPECT RADIO RECEIVER

Disconnect the radio receiver connectors.

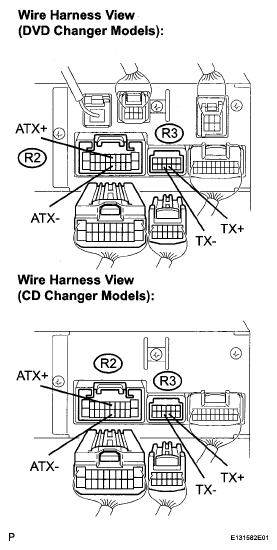

Fig 1: Identifying Radio Receiver Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLE

Tester Connection	Condition	Specified Condition
ATX+ (R2-5) - ATX- (R2-15)	Always	60 to 80 Ω
TX+ (R3-9) - TX- (R3-10)	Always	60 to 80 Ω

NG: REPLACE RADIO RECEIVER

OK: Go to Next Step

IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE

Enter the diagnostic mode.
Press the "LAN Mon" switch to change to "LAN Monitor" mode.

Fig 2: Identifying Diagnostic Tool Display - LAN Monitor NAVI
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Identify the component which has stored this code.

Component Table:

COMPONENT DISPLAY TABLE

Display	Component
AUDIO H/U	Radio receiver
DSP-AMP	Stereo component amplifier
G/W	Gateway ECU
NAVI	Navigation ECU
Rr-TV	Television display assembly

HINT:

"NAVI" is the component which has stored this code.

CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)
HINT:

For details of the connectors, refer to TERMINALS OF ECU .

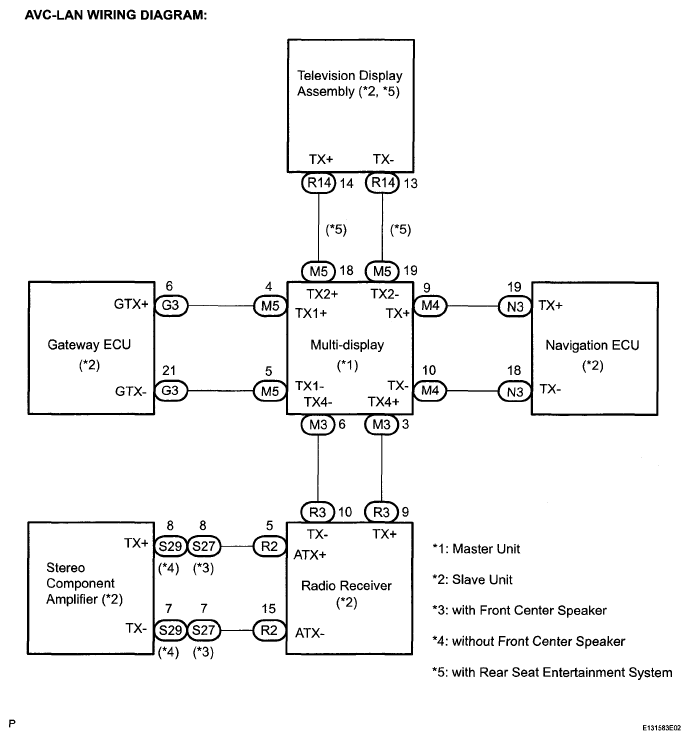

1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.

  Fig 3: Identifying AVC-LAN Wiring Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Disconnect all connectors between the multi-display and the component which has stored this code.
  2. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.
    OK:

    There is no open or short circuit.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step
CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - RADIO RECEIVER)
HINT:

For details of the connectors, refer to TERMINALS OF ECU .

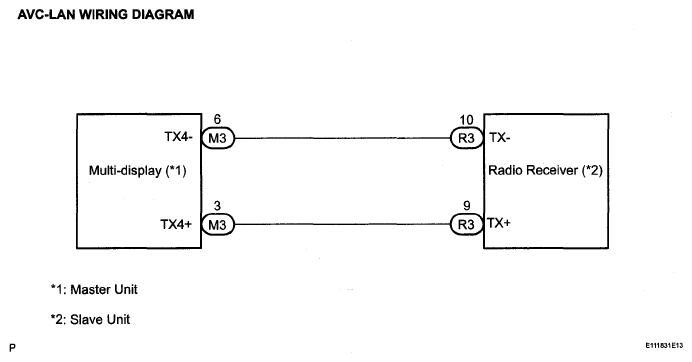

1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the radio receiver.

  Fig 4: Identifying AVC-LAN Wiring Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Disconnect all connectors between the multi-display and the radio receiver.
  2. Check for an open or short in the AVC-LAN circuit between the multi-display and the radio receiver.
    OK:

    There is no open or short circuit.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step
REPLACE MULTI-DISPLAY
1. Replace the multi-display with a normal one and check if the same problem occurs again.
  OK:

  Same problem does not occur.
NG: REPLACE COMPONENT WHICH HAS STORED THIS CODE

OK: END
