Driving Position Memory Switch Circuit (w/ Memory): Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

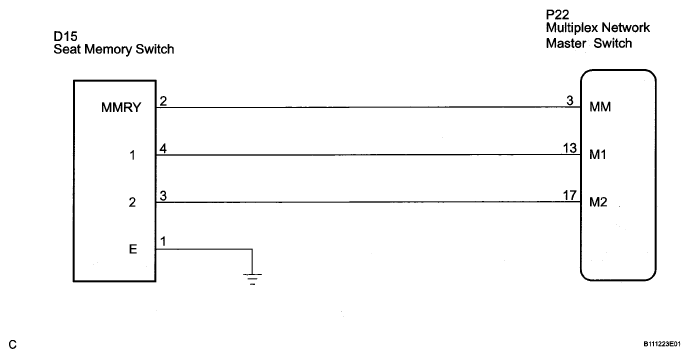

Fig 1: Identifying Driving Position Memory Switch Circuit (With Memory) Wiring Diagram
G05274341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
