LEXUS Link System Error Detected (EL013-03)

Publication date: 2003-11-06
Reference number: EL013-03

LEXUS LINK SYSTEM ERROR DETECTED

LEXUS LINK SYSTEM ERROR DETECTED

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL013-03, Date of Issue:  November 6, 2003
LEXUS: 2004 RX 330
SECTION: ELECTRICAL
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

Some owners may experience a Lexus Link system error if the ignition switch is inadvertently stopped halfway between the ACC and ON position. If this error occurs, the Lexus Link system will announce: "A Lexus Link system error has been detected." In addition, an automatic emergency call or service call may be sent to the Lexus Link call center. To address this issue, an additional wiring harness has been developed to prevent this from occurring.

Applicable Vehicles

2004  model year RX 330  vehicles produced BEFORE  the Production Change Effective VINs shown below.

Production Change Information

PRODUCTION CHANGE

MODEL PRODUCTION CHANGE EFFECTIVE VIN
RX 330 JTJGA31U140007847, JTJHA31U140015290

Parts Information

PARTS INFORMATION

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME QTY
  82989-48010 Wire, Connecting Repair 1

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
EL3001 Lexus Link Wire Installation 0.8 86710-0E010 72 99
NOTE: Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

*Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

  1. How to Check if the Lexus Link System Is Functioning
    1. Perform the check when the ignition switch is turned ON (reference). When the ignition switch is turned ON, the LED changes from red to amber to green: each color lasts 1.5 seconds.

      If the vehicle has an active Lexus Link account, the LED will stay green. If the vehicle does not have an active account, the LED will turn off. If the LED turns red, a malfunction has occurred somewhere in the system.

    2. Performing the diagnosis check (check before and after servicing the Lexus Link system).
      1. Diagnosis
        1. When the Lexus Link system is on, the ECU continuously checks if the system has any errors. If any error is detected, an audio message will play: "A Lexus Link system error has been detected. Please contact your Lexus dealer."

          The message plays only once per ignition cycle.

        2. When an error is detected, check the air interface specification sheet for ways to contact the Lexus Link call center. Errors are saved into the ECU nonvolatile memory as a log of past errors.

          Past and current error codes can be displayed or deleted through the LED illumination pattern codes.

    3. Current Error Codes (please perform these checks).
      1. To display the current error codes, first turn the ignition switch OFF. Then, hold the "play" button or the "volume up" button. With the button pressed, turn the ignition switch ON, OFF, ON, OFF and then ON within 15 seconds.

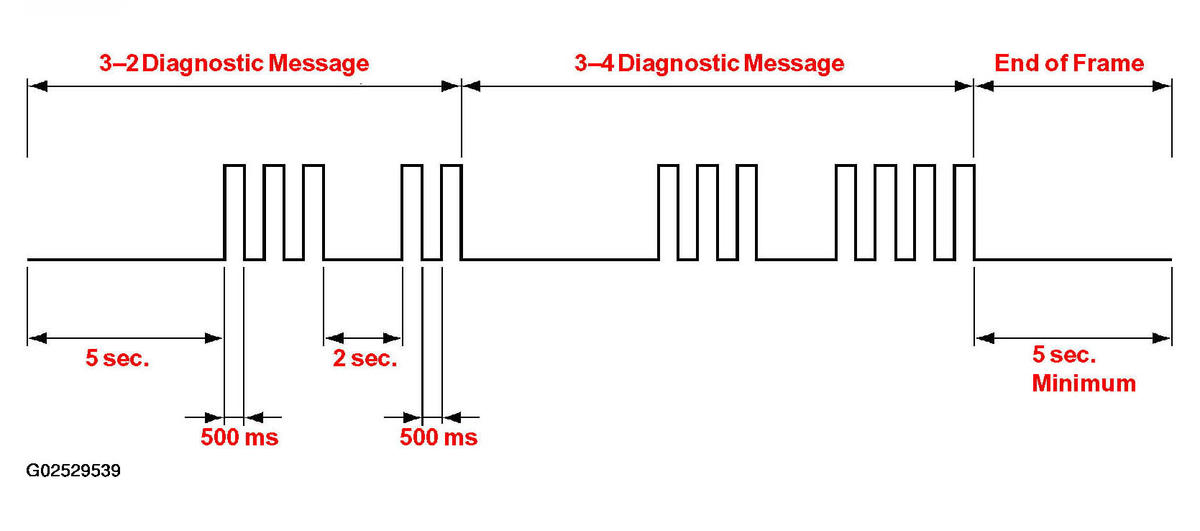

        If the operation is successful, the Lexus Link system will communicate its diagnosis message by illuminating all 3 LEDs at the same time. The diagram below shows the timing of the 3 LED blinking patterns. If an LED is faulty, an audio message will play: "Code one. LED failure."

        Fig 1: LED Diagnostic Timing
        G02529539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. After the LED illumination pattern codes are finished, an audio message will play: "Diagnostics complete." Turning the ignition switch OFF and turning it ON again will erase current error codes.
    NOTE:
    • If the "service", "emergency", "play" or "volume up" button is stuck, this diagnostic check cannot be made.
    • If the DSP or the microcomputer in the ECU is malfunctioning, the diagnostic audio message may not play.

    If the voice message, "System OK" is confirmed, there is no problem with the Lexus Link system. If error codes are displayed, refer to the Technical Information System (TIS): 2004 RX 330 Repair Manual: Diagnostic: Lexus Link System  for troubleshooting.

    CAUTION: Turn the ignition switch to the LOCK position and wait for approximately 30 seconds. Then, disconnect the negative (-) terminal cable from the battery and wait for 90 seconds. Then you may start working on the vehicle. Disconnecting the negative (-) terminal cable within 10 seconds after the ignition switch is turned to the LOCK position will activate the Lexus Link system using the back-up battery and cause the system to make an emergency call. Working on the vehicle within 90 seconds after the negative (-) terminal cable is disconnected may (deploy the SRS using the SRS's back-up power source.

    HINT: For details about the removal of each part, refer to the Technical Information System (TIS): 2004 RX 330 Repair Manual.

  2. Remove Front Door Scuff Plate LH

    Using a screwdriver, disengage the 7 claws and 3 clips, and remove the scuff plate.

    HINT: Tape the screwdriver tip before use.

    Fig 2: Locating Front Door Scuff Plate Clip
    G02529540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove Front Door Opening Trim Weatherstrip LH
  4. Remove Rear Door Scuff Plate LH

    Using the taped screwdriver, disengage the 4 claws and 2 clips, and remove the scuff plate.

  5. Remove Rear Door Opening Trim Weatherstrip LH

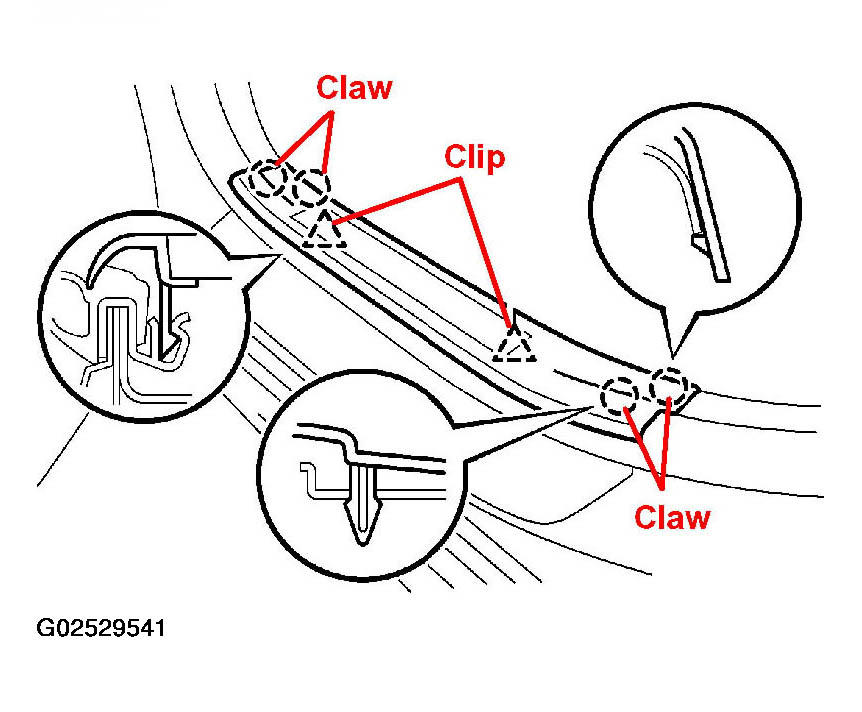

    Fig 3: Locating Door Scuff Plate Clip
    G02529541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Remove Center Pillar Garnish Lower LH
    1. Remove the floor anchor cover.
    2. Remove the bolt and the front seat outer belt on the floor anchor side.
    3. Disengage the 2 clips and 3 claws, and remove the center pillar garnish.

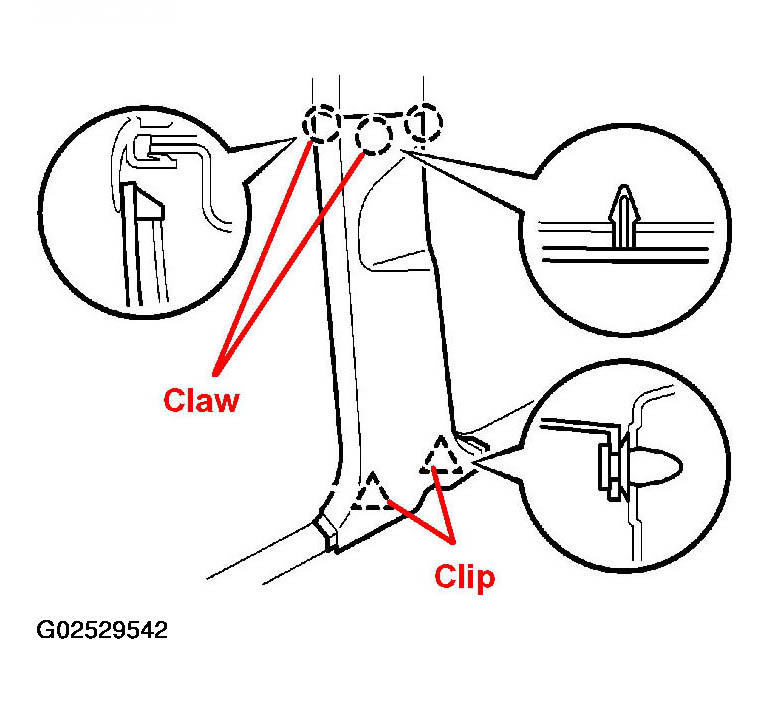

    Fig 4: Locating Center Pillar Garnish Lower Clip
    G02529542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Remove Rear Seat Side Cover LH
    1. Remove bolt and belt assembly on the floor anchor side.
    2. Using a clip remover, remove the 2 clips.
    3. Using the taped screwdriver, disengage the 4 clips and remove the side cover.

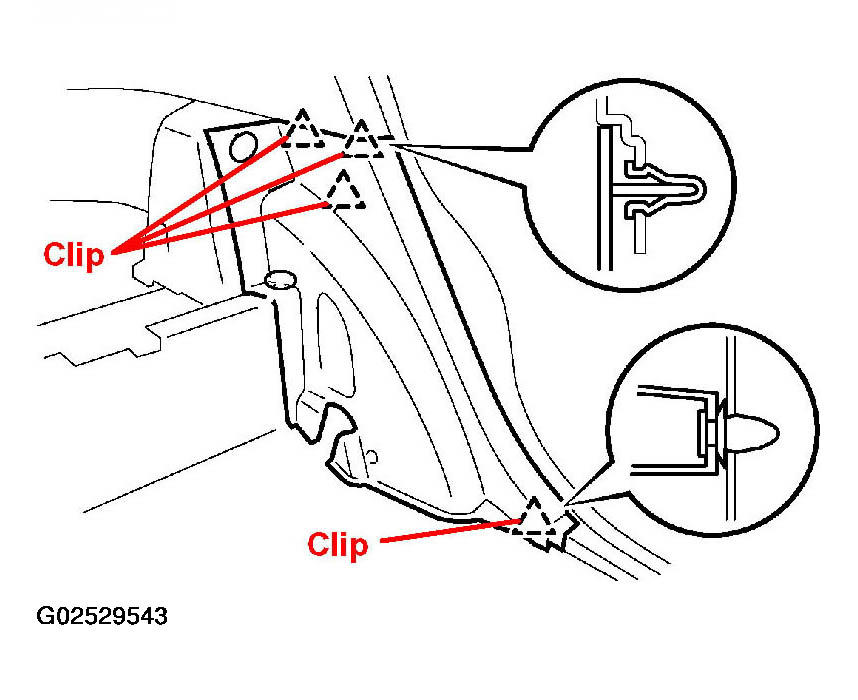

    Fig 5: Removing Rear Seat Side Cover Clip
    G02529543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Turn Up Deck Board
    1. Disengage the clips and turn up the front side of the deck board.

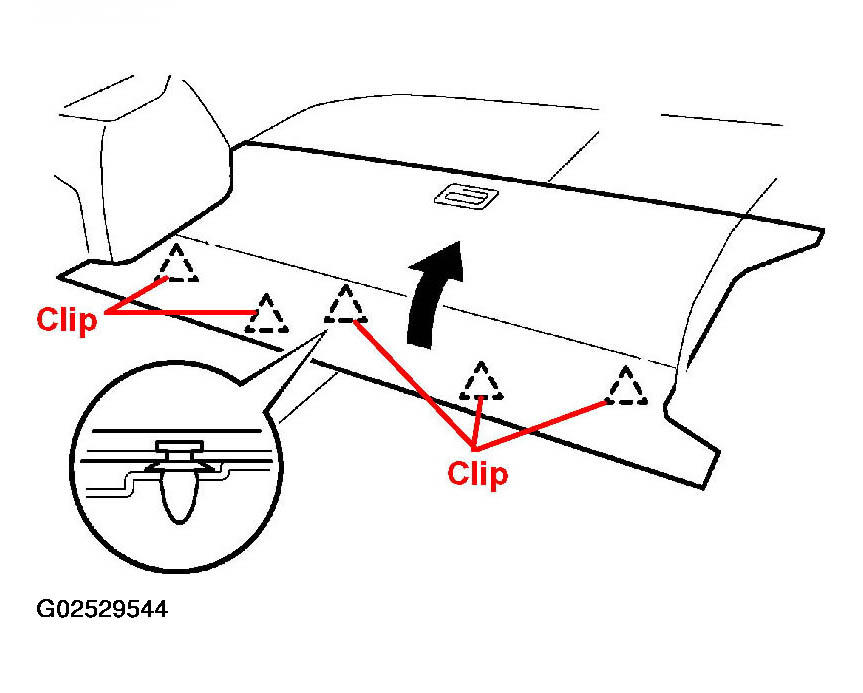

    Fig 6: Turning Up The Front Side Of Deck Board
    G02529544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Remove Floor Carpet Assembly
    1. Remove the 5 clips and turn over the seatback board carpet.

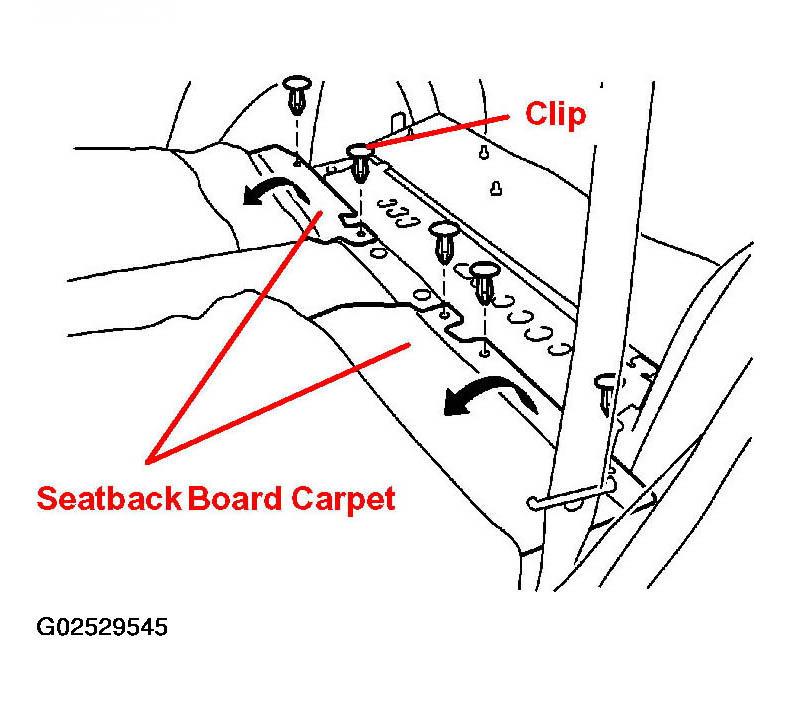

      Fig 7: Removing Floor Carpet Assembly
      G02529545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 clips.
    3. Turn over the floor carpet in the direction indicated by the arrows.

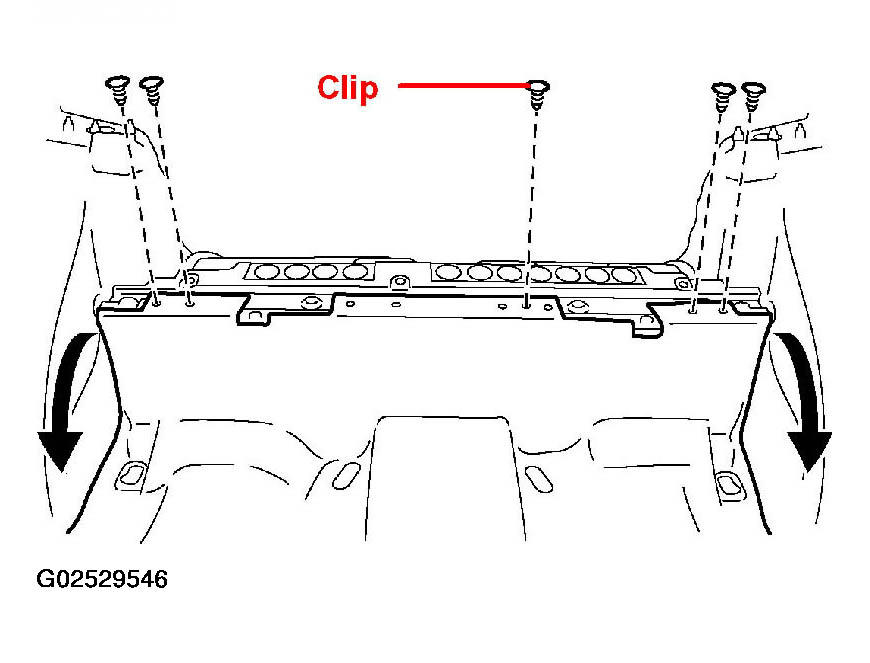

    Fig 8: Turning Over The Floor Carpet
    G02529546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Remove Cowl Side Trim LH
    1. Using the taped screwdriver, disengage the 2 clips and cowl side trim.

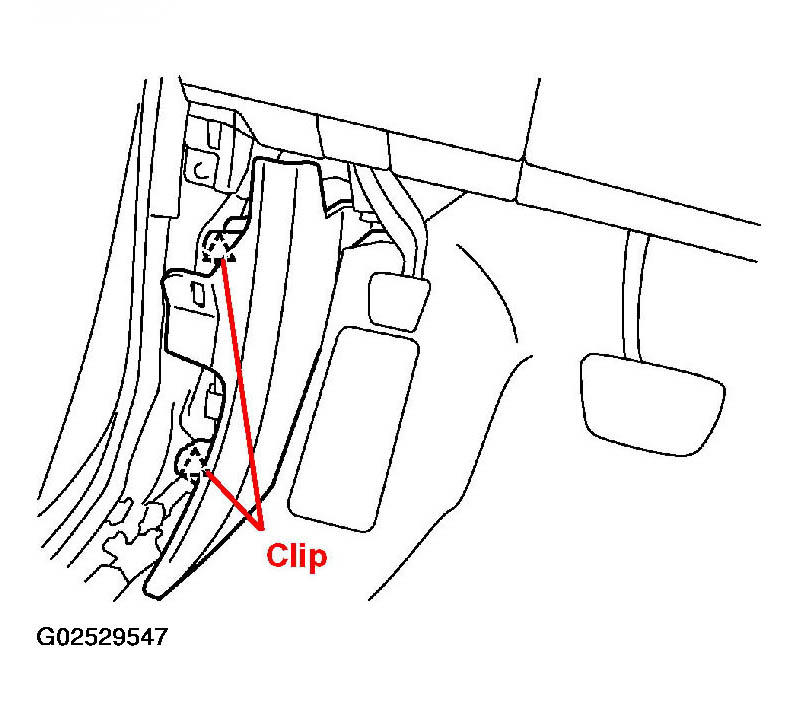

    Fig 9: Locating Cowl Side Trim Clip
    G02529547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Remove Instrument Panel Finish Panel Lower
    1. Remove the bolt and screw.
    2. Disconnect the hood lock control cable assembly.
    3. Disengage the 5 claws and remove the 4 clips and the instrument panel finish panel lower.
    4. Disconnect the connectors.

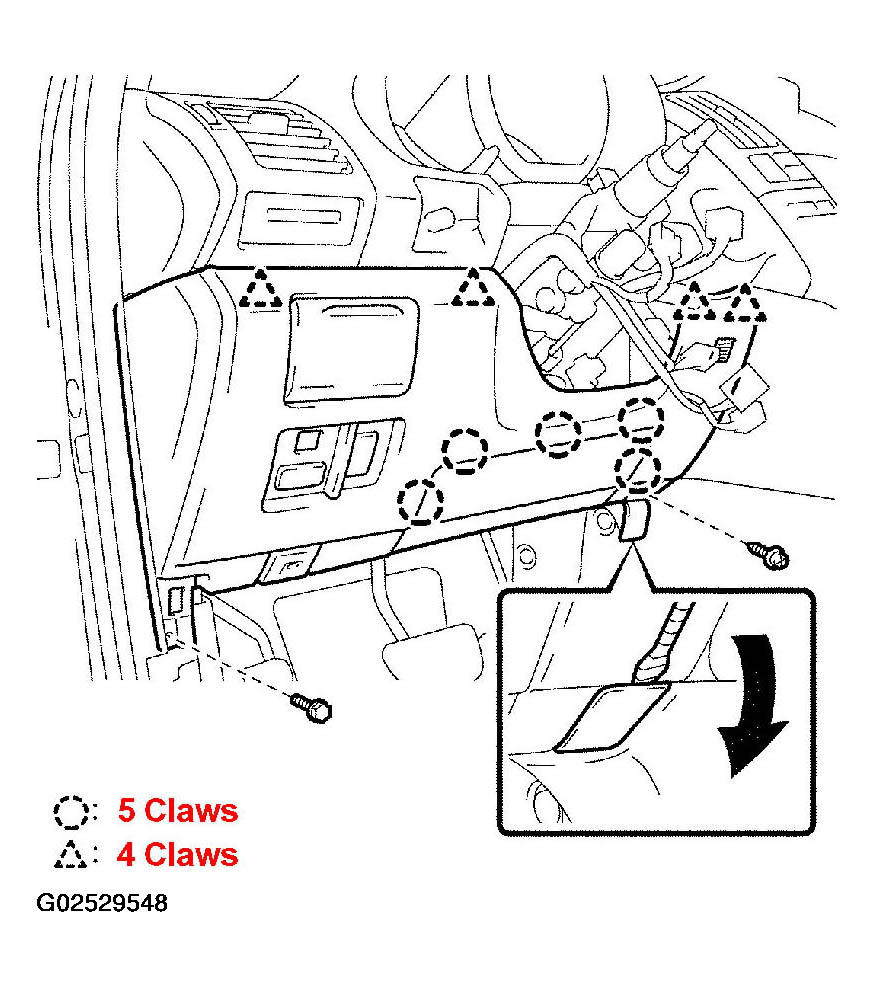

    Fig 10: Removing Instrument Panel Finish Panel Lower
    G02529548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. Remove Instrument Panel Airbag Assembly Lower No. 1
    1. Using a screwdriver, disconnect the airbag connector.
    2. Remove the 4 bolts and the instrument panel airbag assembly lower No. 1.

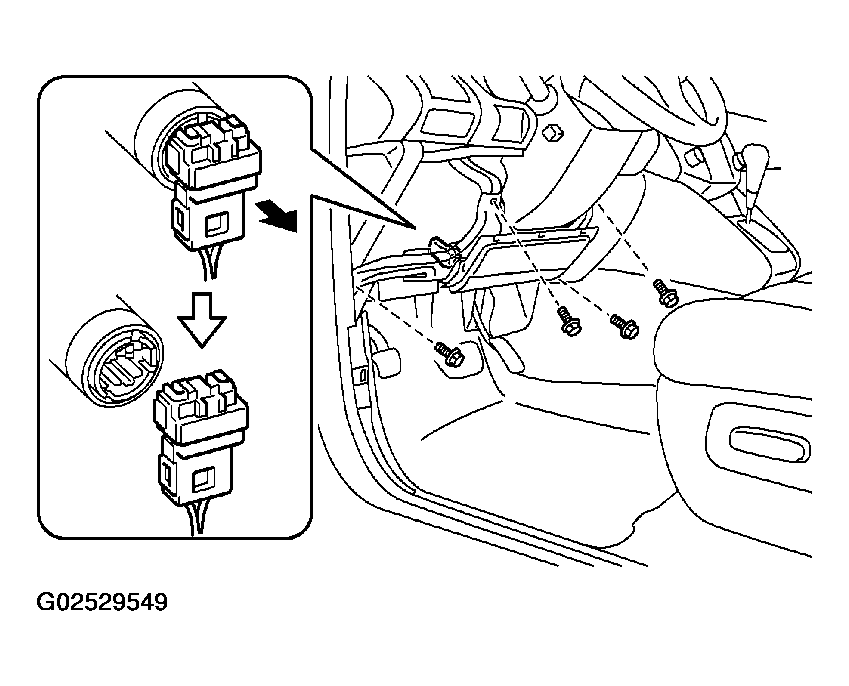

    Fig 11: Disconnecting Instrument Panel Airbag Connector
    G02529549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. Remove Instrument Panel J/B
    1. Remove the 3 nuts.
    2. Pull the instrument panel J/B so that the repair wire can pass behind the instrument panel J/B.

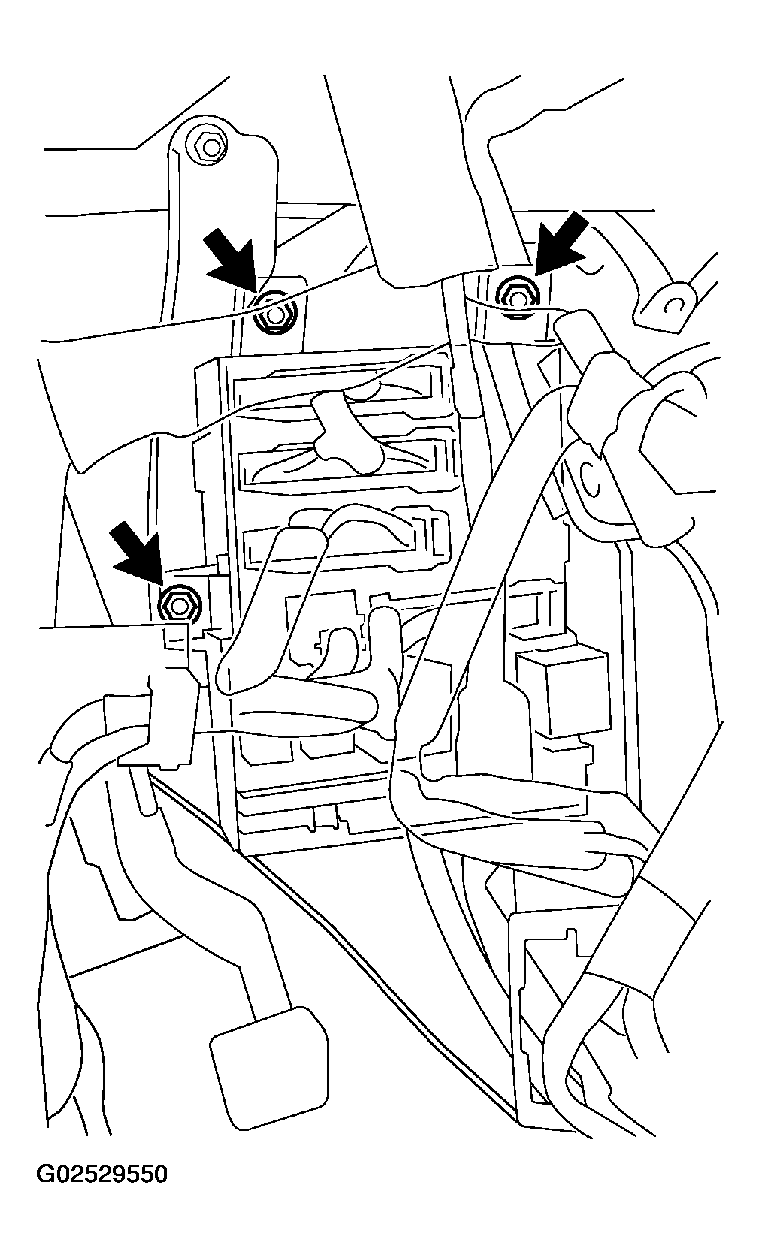

    Fig 12: Locating Instrument Panel Bolt
    G02529550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. Set Repair Wire To Instrument Panel

    Set the repair wire to the instrument panel as shown in Fig 13.

    HINT: Pass the repair wire under the attachment.

    CAUTION: Be careful not to damage the repair wire.
    Fig 13: Setting Repair Wire To Instrument Panel
    G02529551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. Disconnect Instrument Panel J/B Connector Wire
    1. Disconnect the instrument panel J/B connector (1G) from the instrument panel J/B (located below Body ECU).
    2. Using a screwdriver, pull up the instrument panel J/B connector lock.
    3. Disconnect the instrument panel J/B connector wire (pin 12), as shown in Fig 14 (grey color).

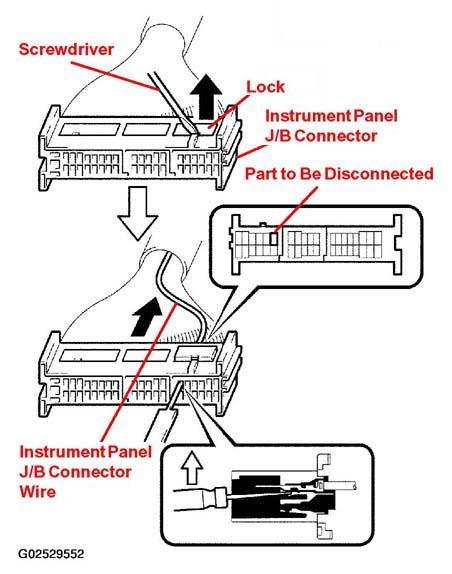

    Fig 14: Disconnecting Instrument Panel J/B Connector Wire
    G02529552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. Disconnect Repair Wire Connector Wire
    1. Disconnect the connector.
    2. Using a screwdriver, pull up the repair wire connector lock.
    3. Disconnect the repair wire connector wire (middle wire), as shown in Fig 15.

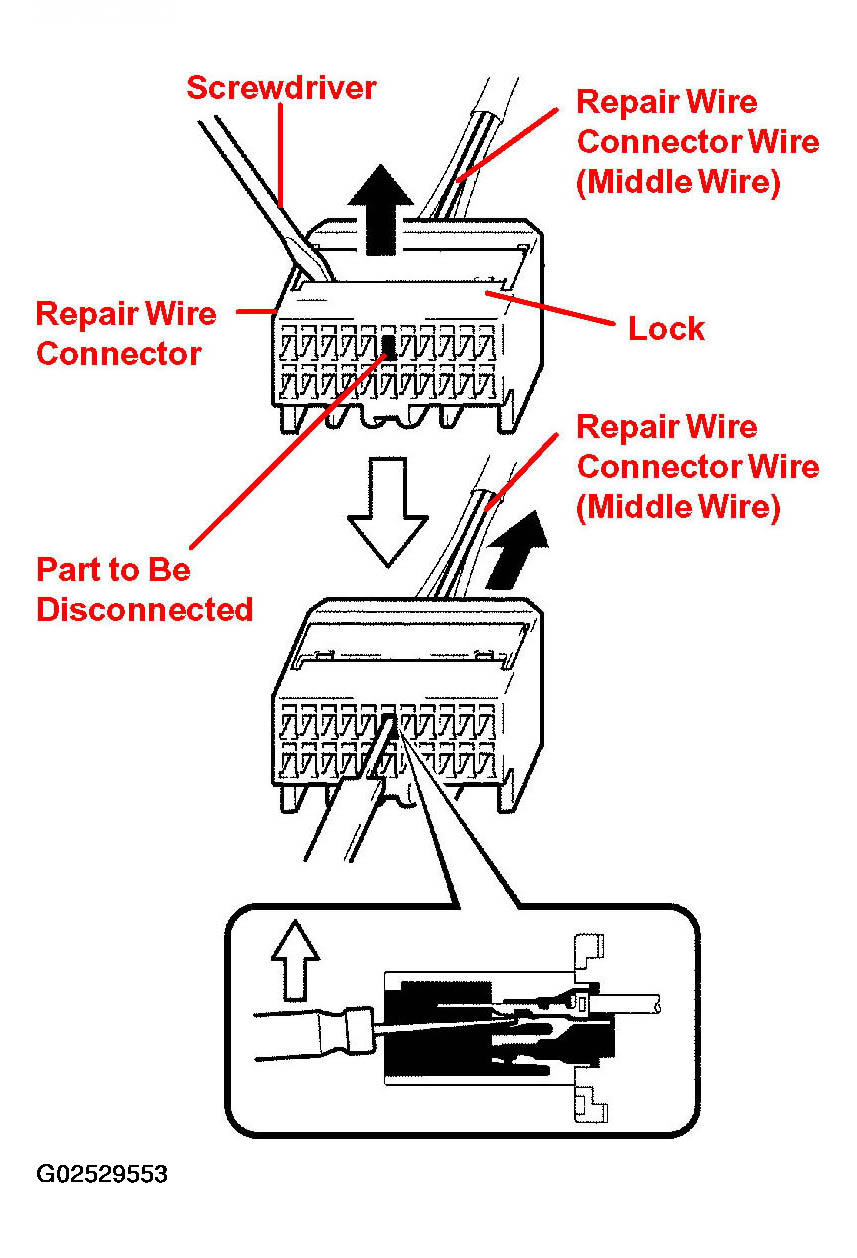

    Fig 15: Disconnecting Repair Wire Connector Wire
    G02529553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. Connect Wire
    1. Connect the instrument panel J/B connector wire to the repair wire connector, as shown in Fig 16.
    2. Connect the repair wire connector wire to the instrument panel J/B connector, as shown in Fig 16.

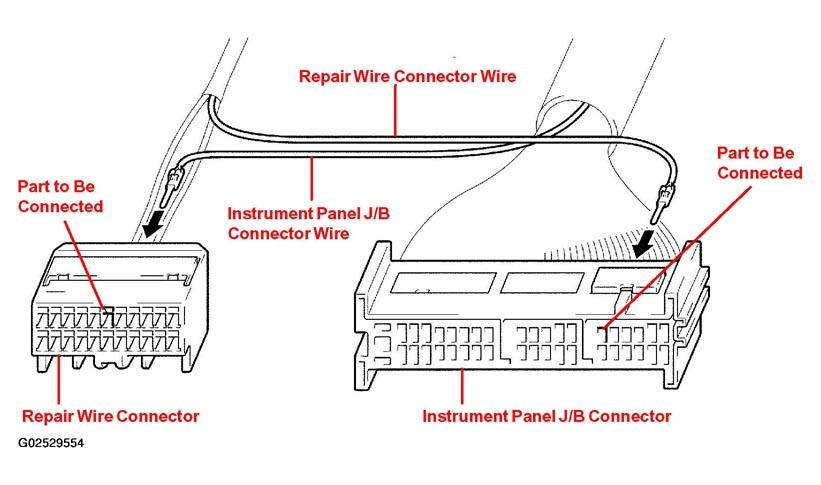

      Fig 16: Cross Connecting Instrument Panel J/B Connector Wire To Repair Wire Connector
      G02529554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector as shown in Fig 17.

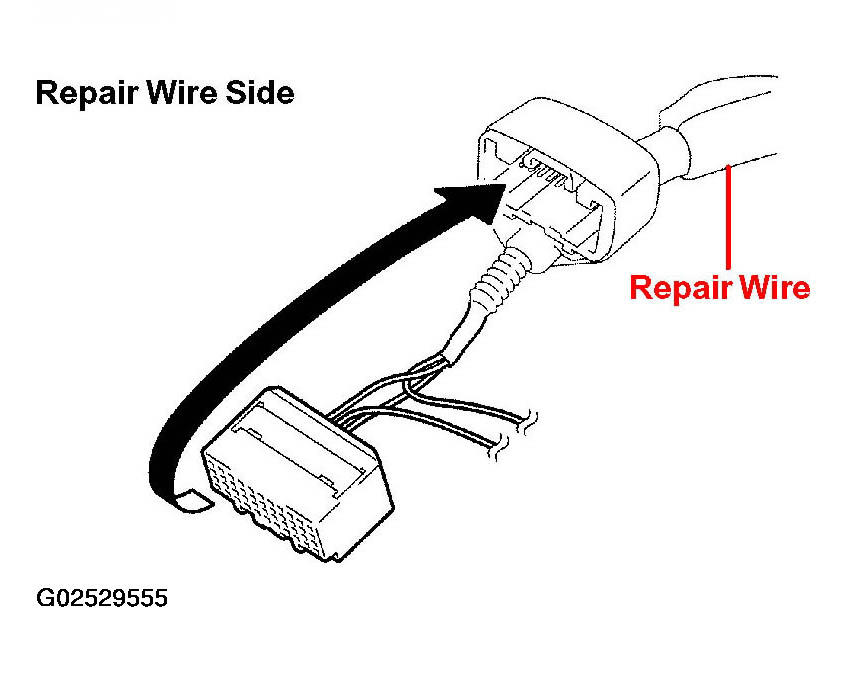

      Fig 17: Repair Wire Side
      G02529555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the M8 connector from the Lexus Link ECU and connect the repair wire connector.
    5. Plug in the other side of the repair wire connector into the Lexus Link ECU.

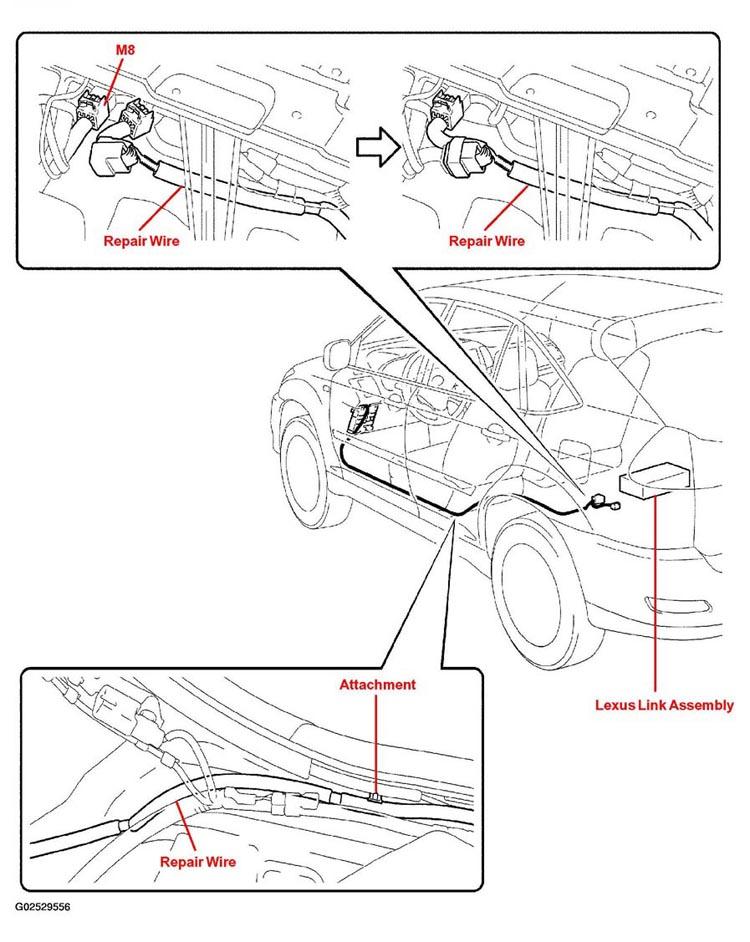

    Fig 18: Plugging Repair Wire Connector Into Lexus Link ECU
    G02529556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. Fasten Repair Wire
    1. Fasten the repair wire to the instrument panel with a cable tie and vinyl tape as shown in Fig 19. Attach the cable ties to the white tape and black tape parts of the repair wire.

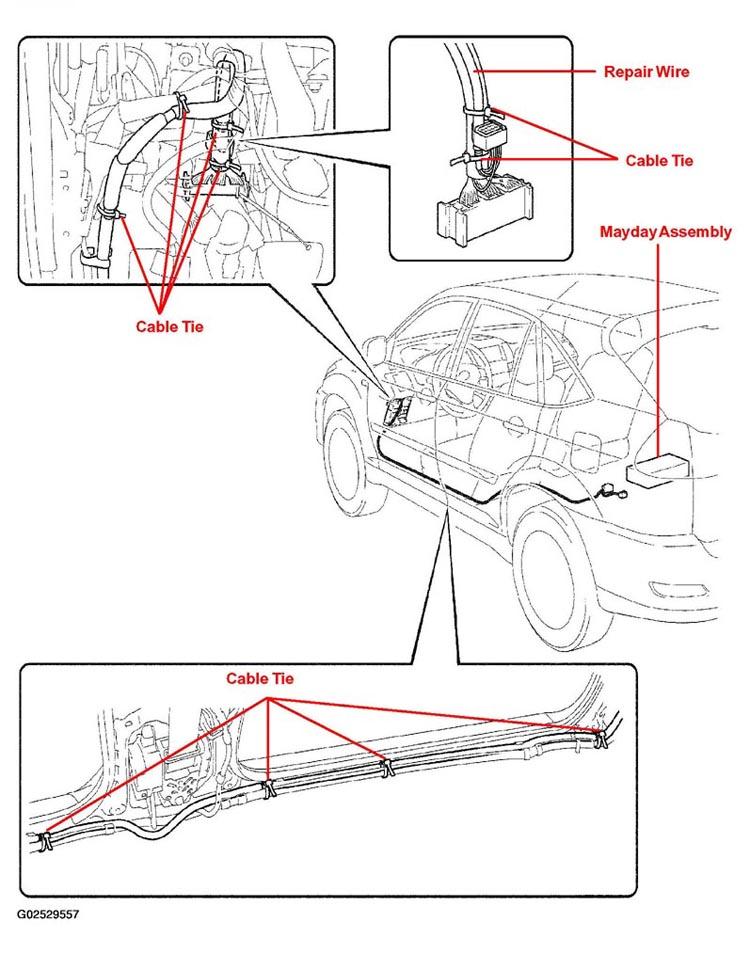

      Fig 19: Fastening Repair Wire (1 Of 2)
      G02529557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

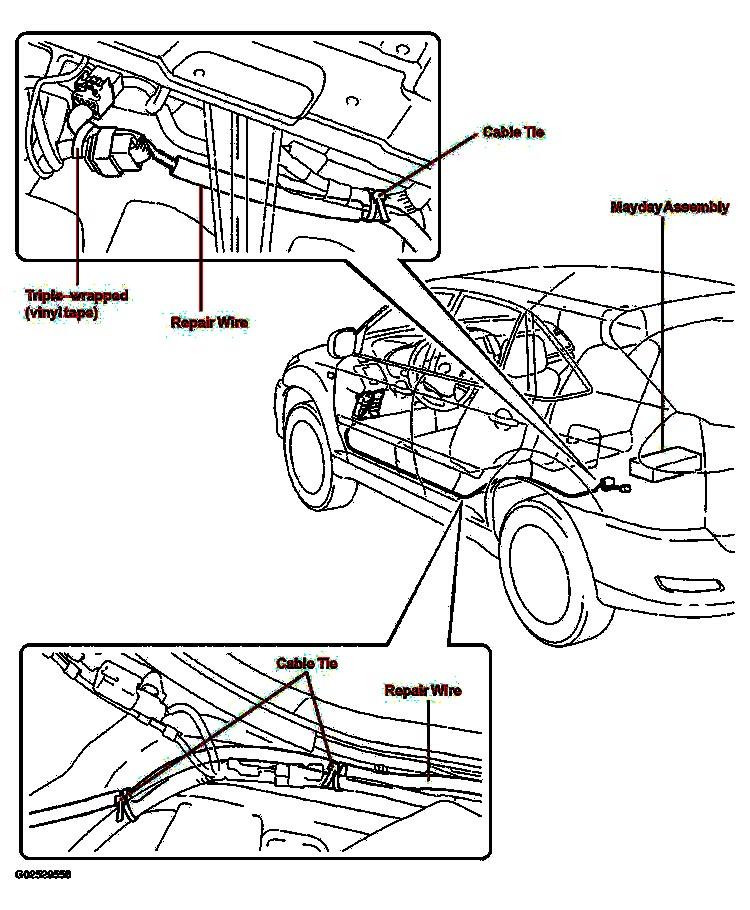

      Fig 20: Fastening Repair Wire (2 Of 2)
      G02529558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the instrument panel J/B connector to the instrument panel J/B.

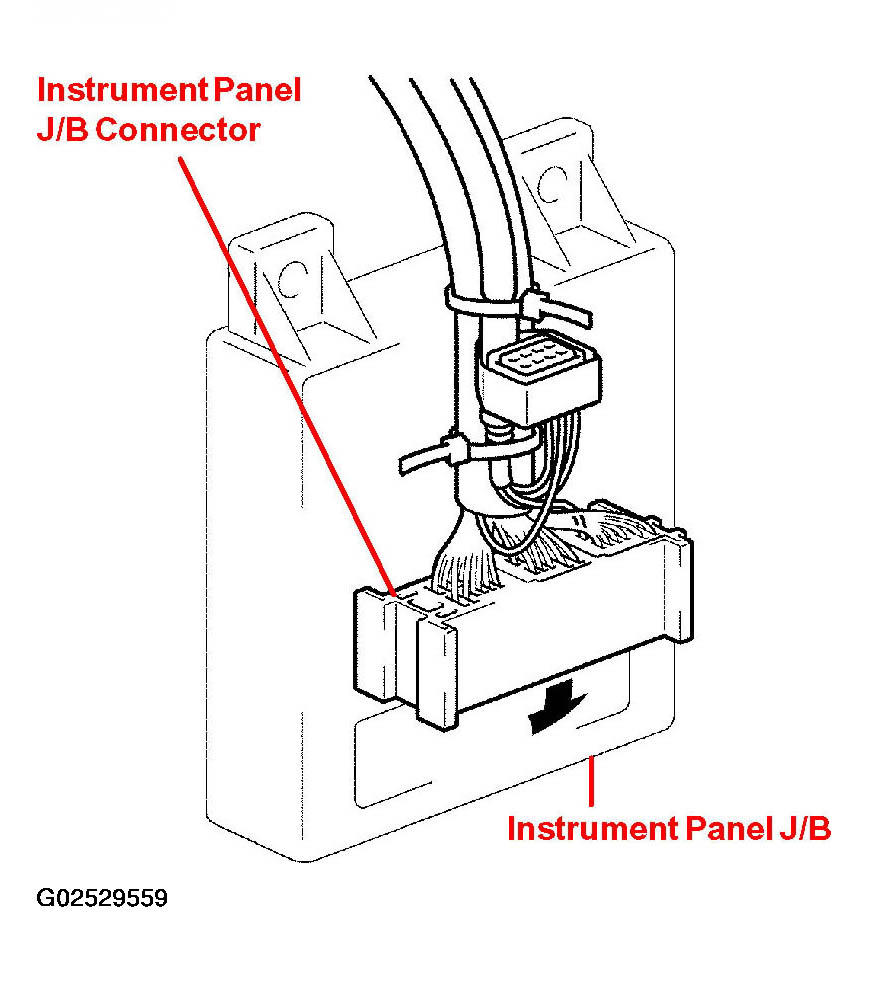

    Fig 21: Connecting The Instrument Panel J/B Connector To The Instrument Panel J/B
    G02529559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. Cut Cable Tie

    Cut off the cable tie, as shown in Fig 22.

  20. Reconnect Negative Battery Terminal
  21. Check SRS Diagnosis

    About 6 seconds after turning the ignition switch ON, check that the SRS warning light in the combination meter turns off.

    If the SRS warning light flashes or stays ON, the connector could be disconnected or a wire in the wire harness could be broken or short circuited. Check the applicable circuit for the DTC reading (refer to the Repair Manual).

  22. Check Lexus Link System

    Check the Lexus link system. See step  1 in this TSB.

    Fig 22: Cutting Cable Tie
    G02529560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. Install Instrument Panel J/B
  24. Install Instrument Panel Lower
    1. Install the instrument panel airbag assembly lower No. 1 with the 4 bolts.

      Torque: 7.6 N.m (78 kgf.cm, 68 in.lbf)

    2. Connect the airbag connector and install the clamp.

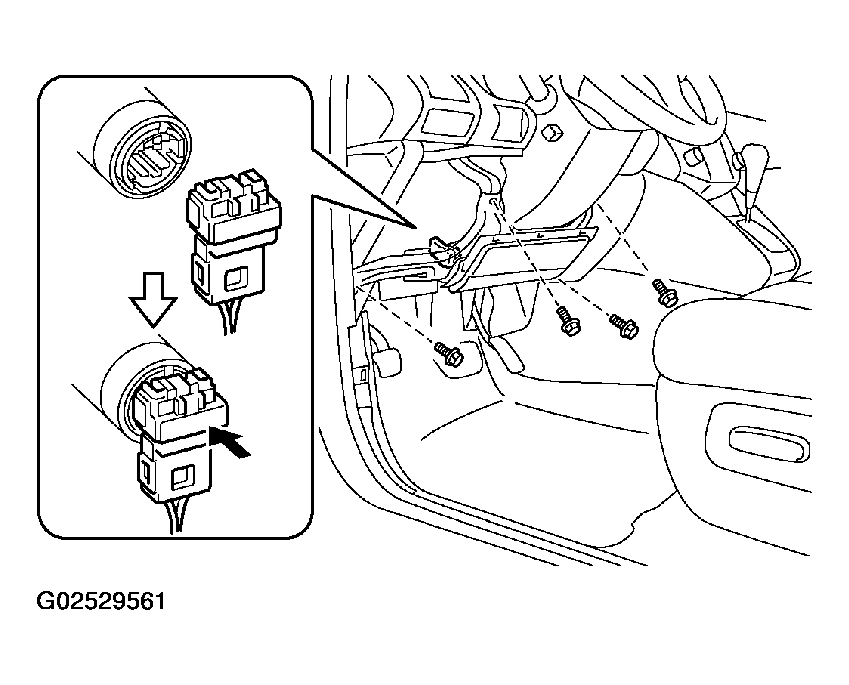

    Fig 23: Installing Instrument Panel Lower
    G02529561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. Install Instrument Panel Finish Panel Lower
  26. Install Cowl Side Trim LH
  27. Install Floor Carpet Assembly
  28. Install Deck Board
  29. Install Rear Seat Side Cover LH
  30. Install Center Pillar Garnish Lower LH
  31. Install Rear Door Opening Trim Weatherstrip LH
  32. Install Rear Door Scuff Plate LH
  33. Install Front Door Opening Trim Weatherstrip LH
  34. Install Front Door Scuff Plate LH
  35. Initialize Body System

    When disconnecting the negative (-) battery terminal, initialize all the systems after the terminal is reconnected. (Refer to the Technical Information System [TIS]: 2004 RX 330 Repair Manual.)
