How to Proceed With Troubleshooting

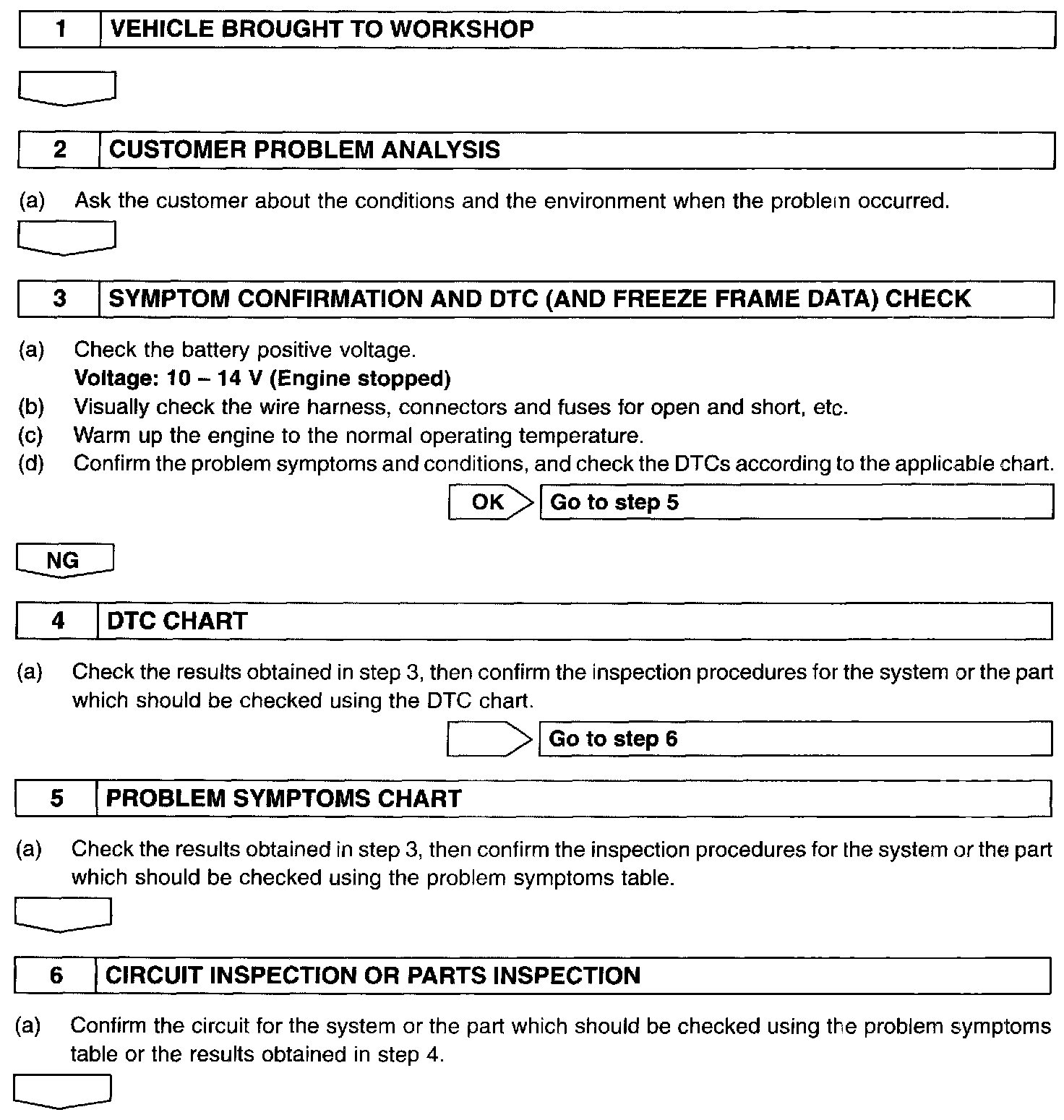

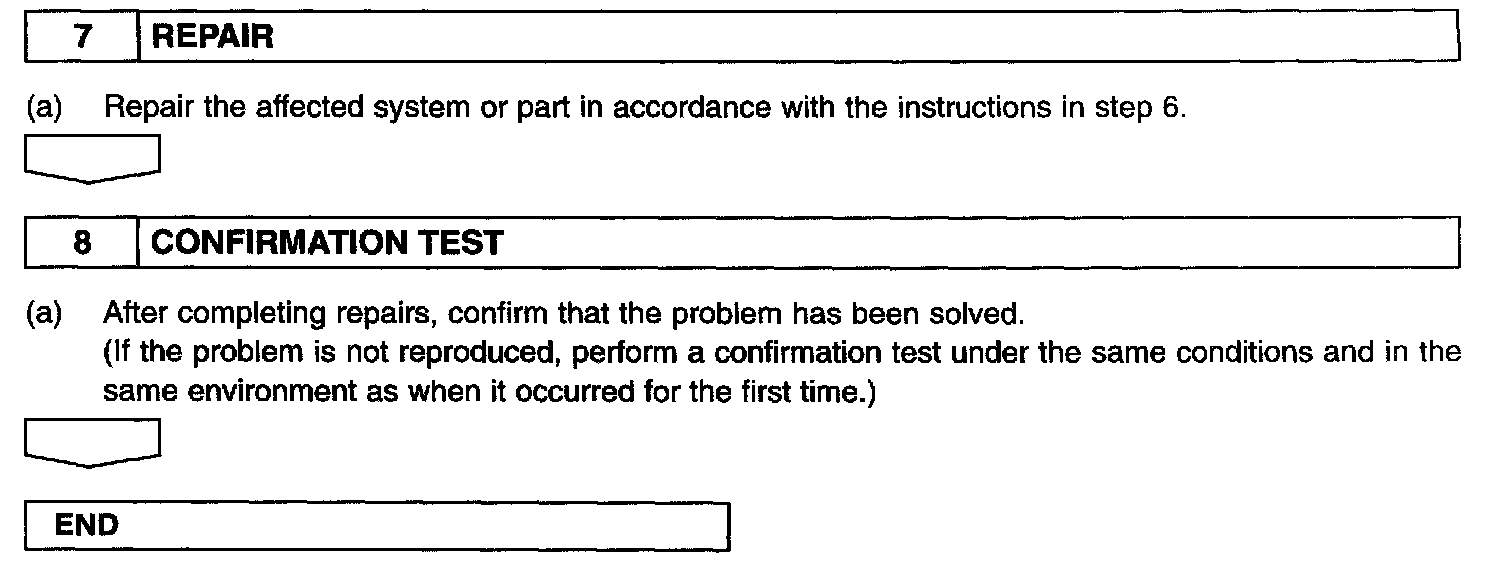

HOW TO PROCEED WITH TROUBLESHOOTING









HINT: Carry out a troubleshooting in accordance with the procedures given. Here, only the basic procedures are shown. Details are provided in the Diagnostic Section, showing the most effective methods for each circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning the troubleshooting of that circuit.
