Headlamp Alignment Control Module: Service and Repair

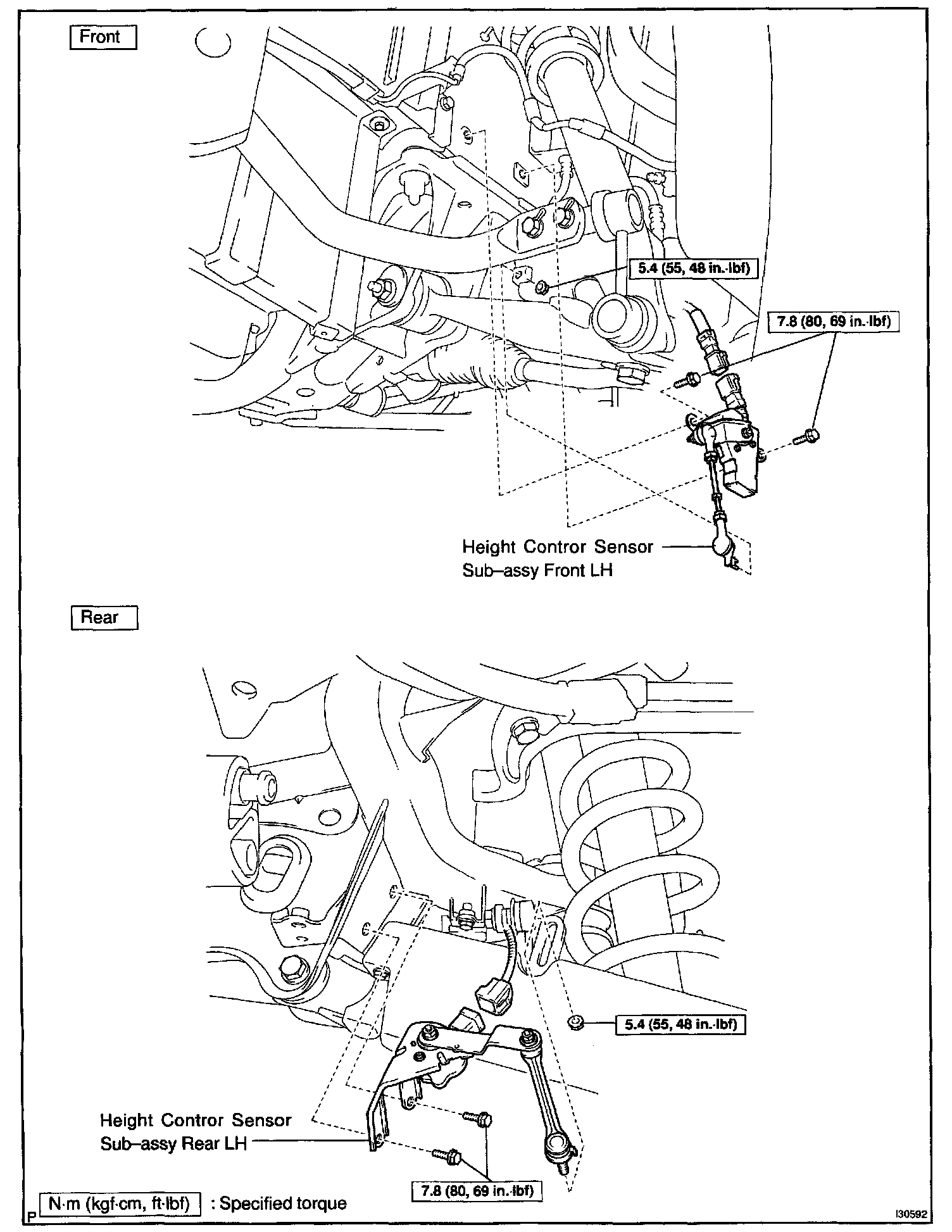

Lighting Part 1:

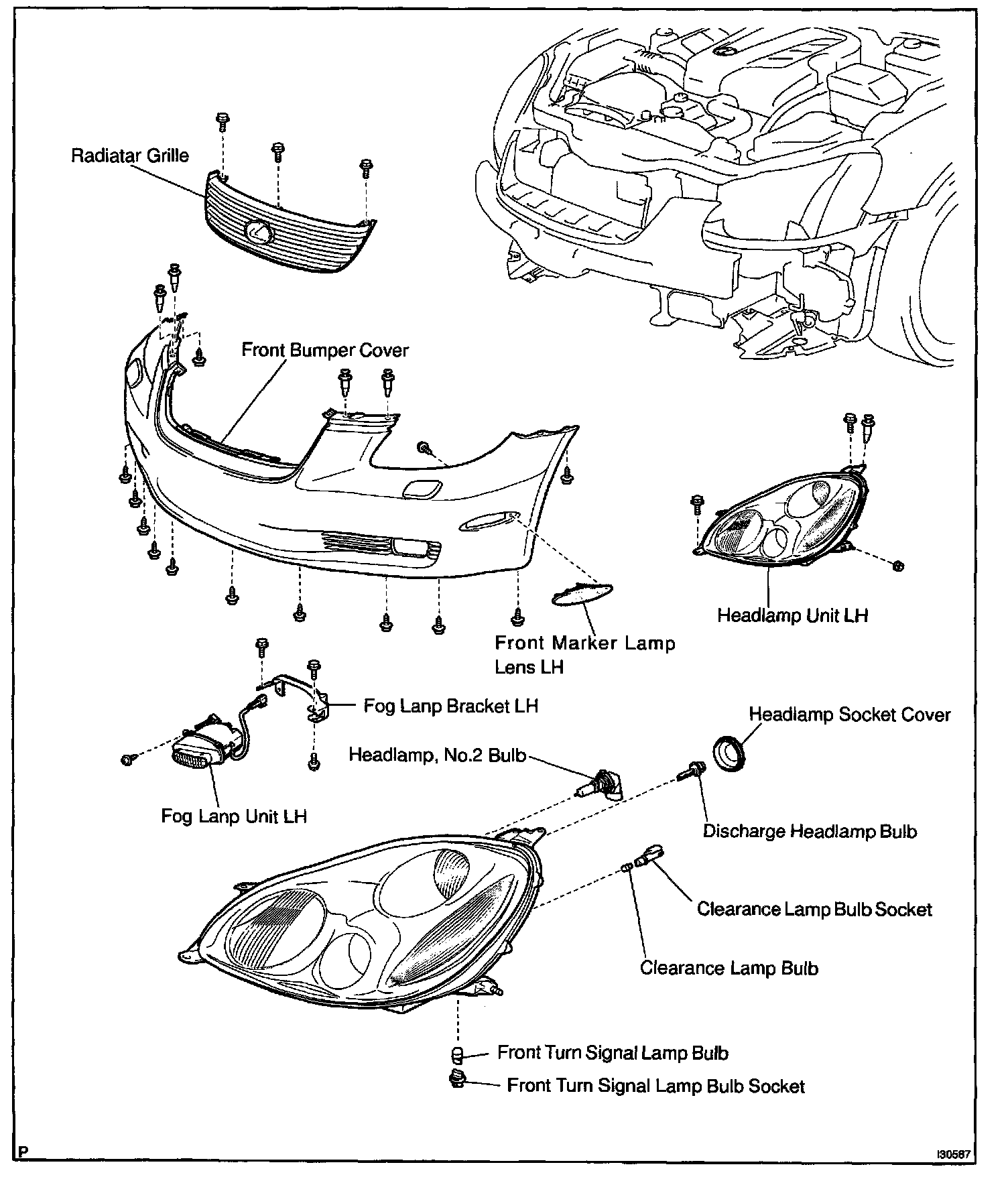

Lighting Part 2:

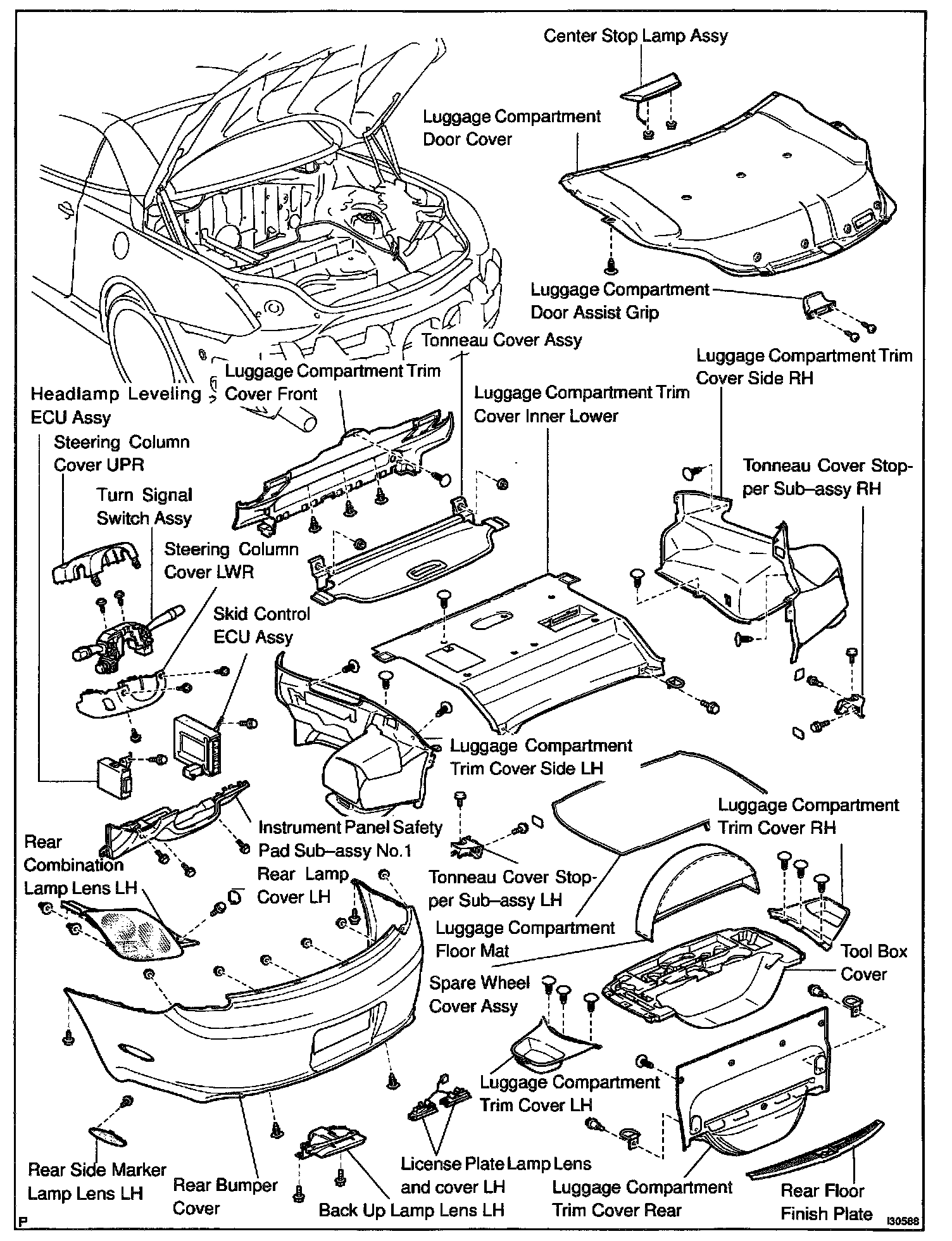

Lighting Part 3:

HEADLAMP LEVELING ECU ASSY

REPLACEMENT

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1
2. REMOVE SKID CONTROL ECU ASSY

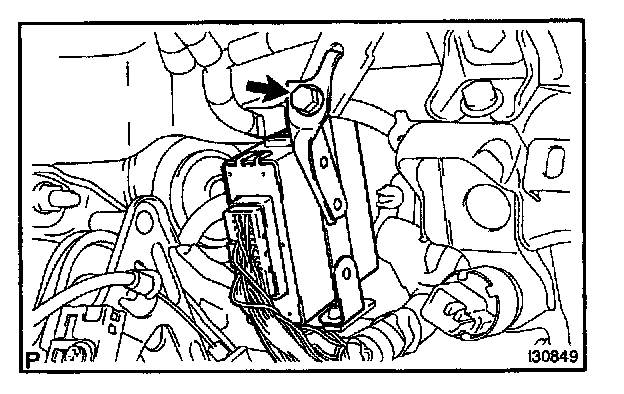

3. REMOVE HEADLAMP LEVELING ECU ASSY
a. Disconnect the connector.
b. Remove the bolt.
c. Remove the headlamp leveling ECU assy.
