Inspection Procedure

USE LEXUS HAND-HELD TESTER
1. NO: Go to step 3
2. YES: Go to step 2 .
READ VALUE OF LEXUS HAND-HELD TESTER
1. Check the transponder key ECU by the ECU data monitor.
  Standard:

  Transponder key ECU (switch condition)

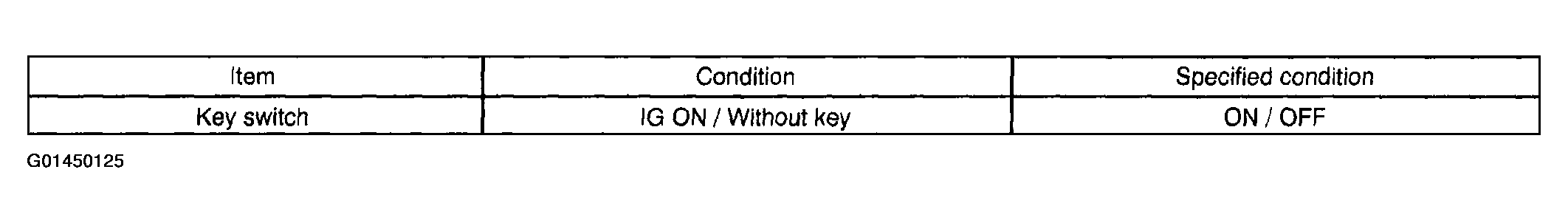

  Fig 1: Transponder Key ECU Switch Condition Table Using Hand-Held Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: GO TO FLOW CHART OR PROBLEM SYMPTOM TABLE (See KEY LOCK-IN PREVENTION FUNCTION DOES NOT WORK PROPERLY (COURTESY LAMP SWITCH CIRCUIT) )
2. NG: Go to step 3 .
INSPECT UNLOCK WARNING SWITCH ASSY
1. Check the key unlock warning switch continuity.

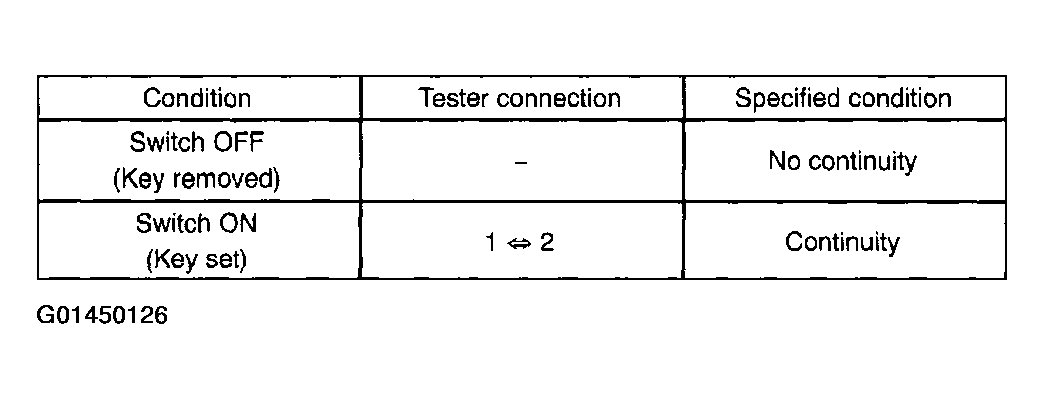

  Fig 2: Key Unlock Warning Switch Continuity Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

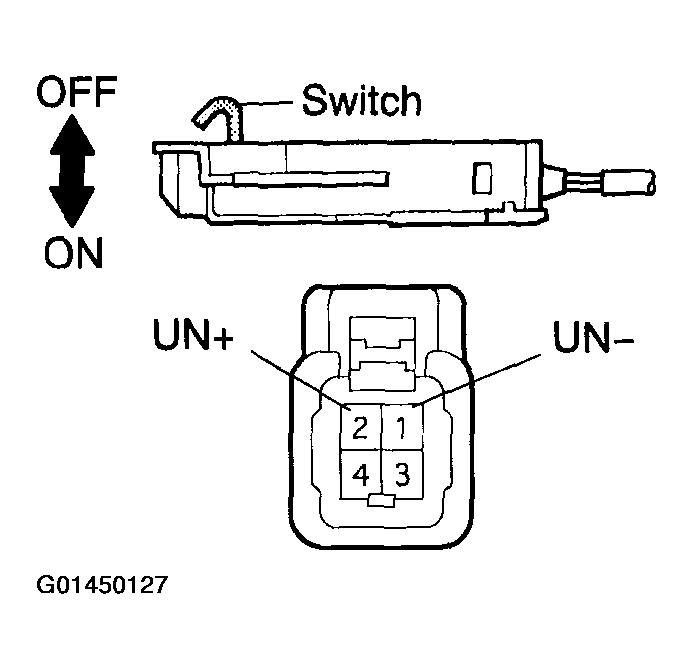

  Fig 3: Identifying Unlock Warning Switch Assy. Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE UNLOCK WARNING SWITCH ASSY
2. OK: GO TO FLOW CHART OR PROBLEM SYMPTOM TABLE (See KEY LOCK-IN PREVENTION FUNCTION DOES NOT WORK PROPERLY (COURTESY LAMP SWITCH CIRCUIT) )
