Ignition Switch/Steering Lock: Inspection

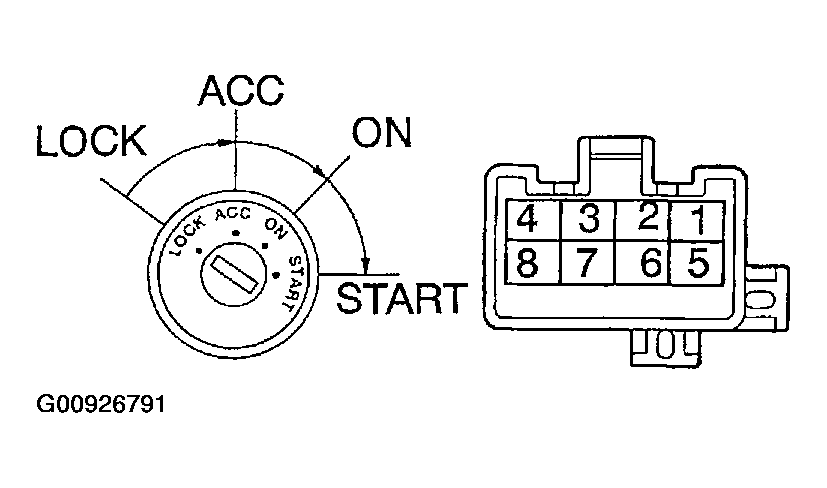

Fig 1: Inspecting Ignition Switch

G00926791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT IGNITION OR STARTER SWITCH ASSY

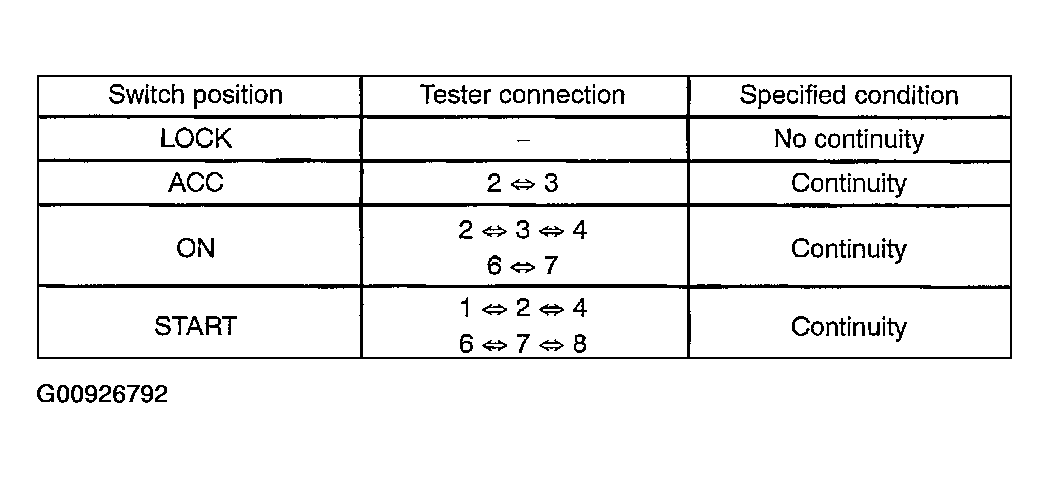

Fig 2: Terminals Continuity Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
