Front Power Seat Control System (W/Memory) - Diagnosis: Pre-Check

INSPECT ECU DATA MONITOR WITH HAND-HELD TESTER
1. Using hand-held tester, check the power seat system by the data monitor.
  Standard:

  SEAT ECU

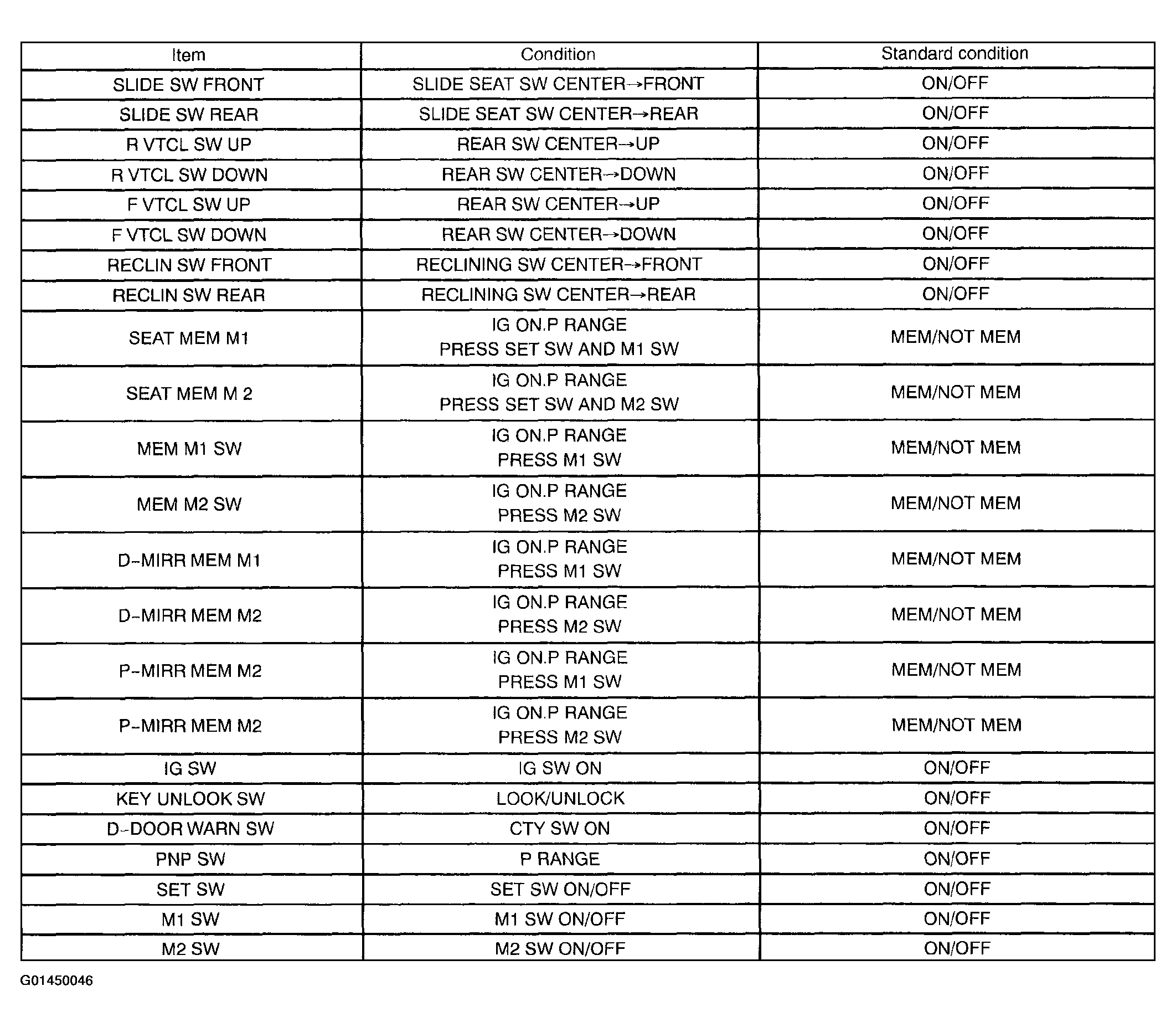

  Fig 1: Inspecting ECU Data Monitor With Hand-Held Tester Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT ACTIVE TEST WITH HAND-HELD TESTER
1. Using hand-held tester, check the power seat system operation the data monitor.
  SEAT ECU

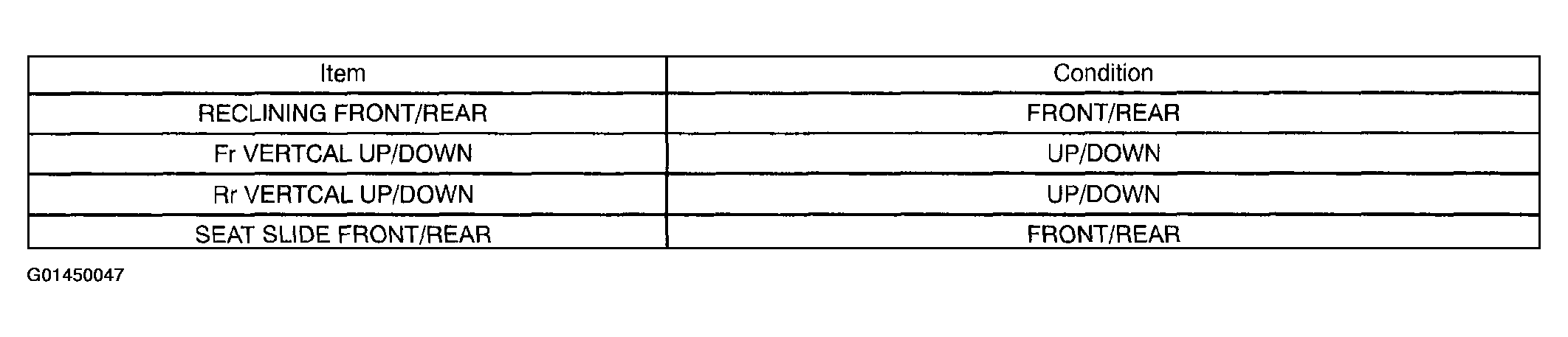

  Fig 2: Inspecting Active Test With Hand-Held Tester Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
