Rear Seat: Components

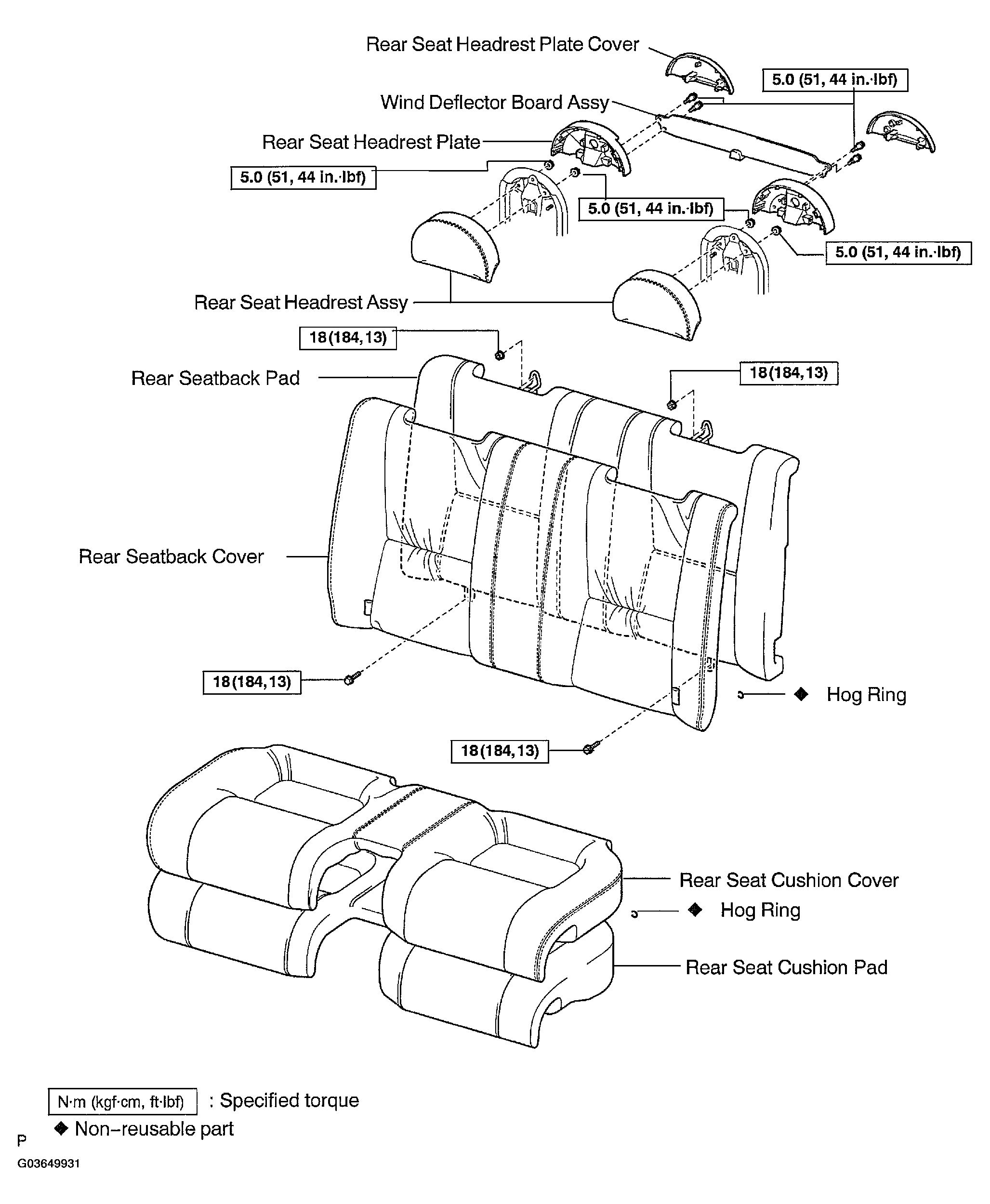

Fig 1: Identifying Rear Seat Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
