Microphone Amplifier ASSY: Replacement

HINT:

• The installation is in the revers order of the removal.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

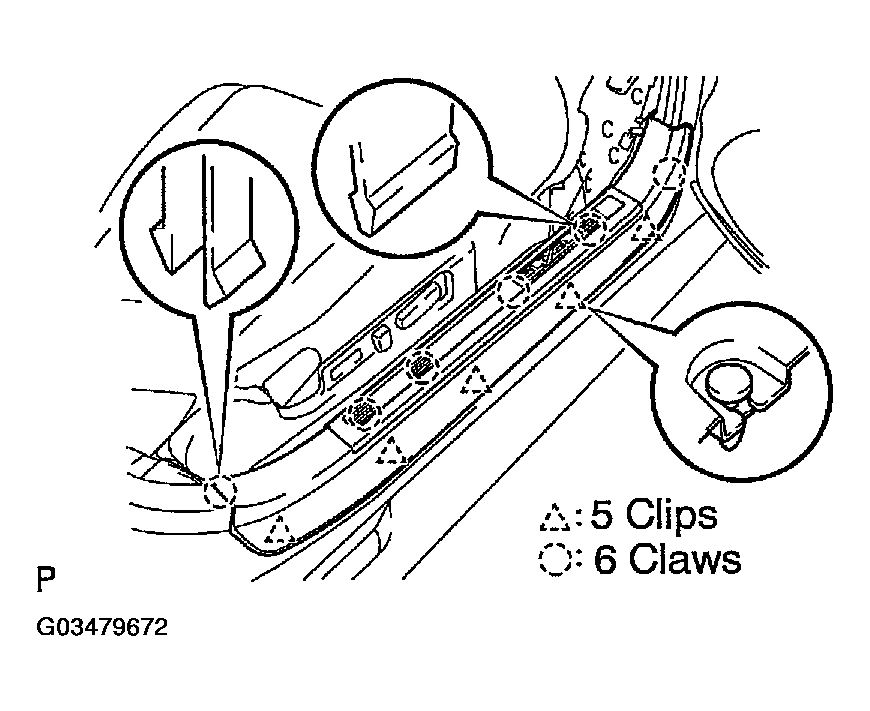

1. REMOVE DOOR SCUFF PLATE ASSY RH
   1. Disengage the 6 claws and 5 clips.
   2. Remove the door scuff plate assembly RH then disconnect the connector.
   Fig 1: Removing Door Scuff Plate Assy RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

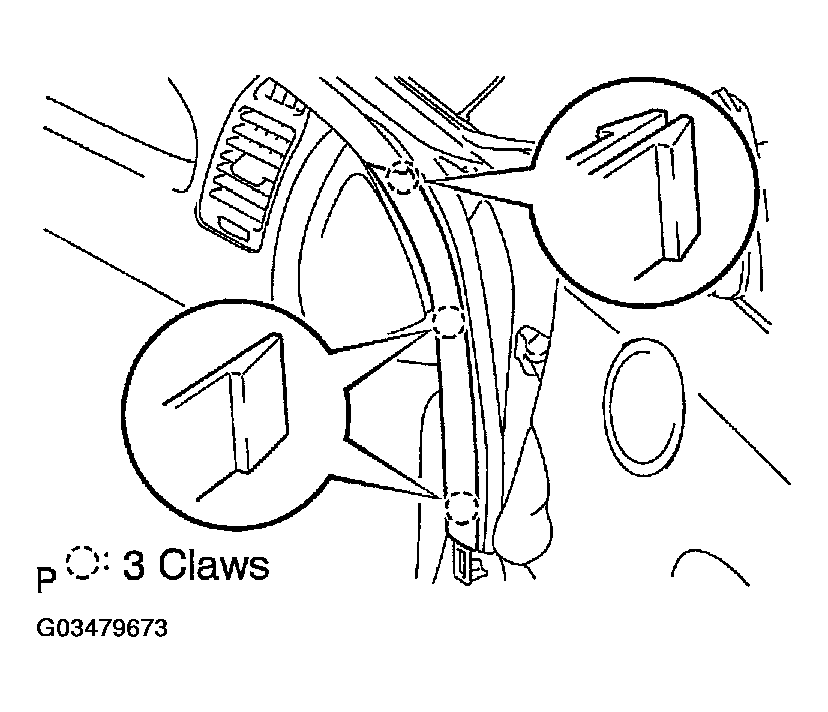

2. REMOVE FRONT DOOR OPENING TRIM COVER RH
   1. Disengage the 3 claws then remove the front door opening trim cover RH.
   Fig 2: Removing Front Door Opening Trim Cover RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

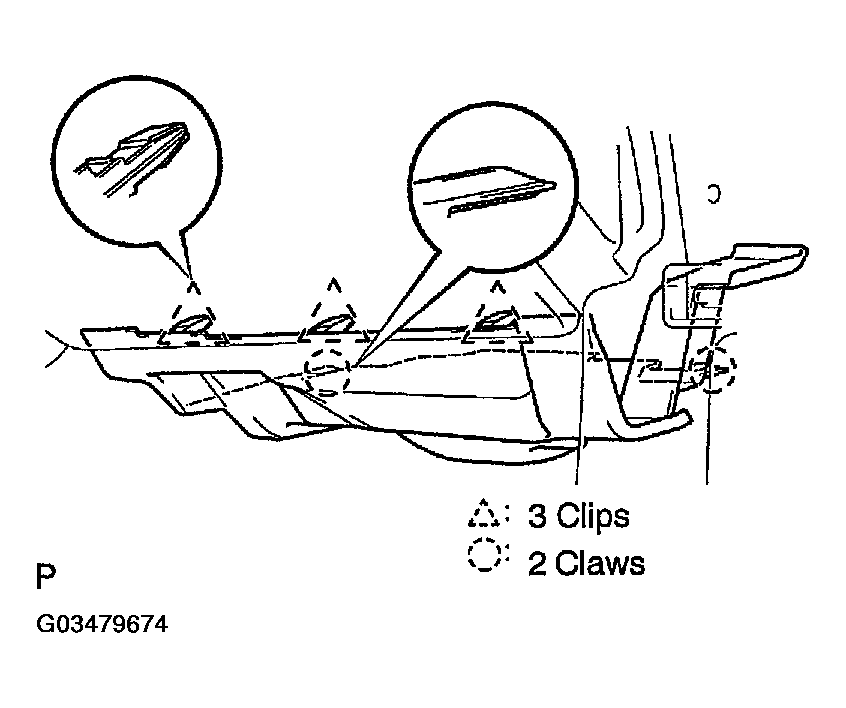

3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
   1. Disengage the 3 clips, 2 claws and remove the instrument panel under cover No. 2, and then disconnect the connectors.
   Fig 3: Removing Instrument Panel Under Cover Sub-Assy No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

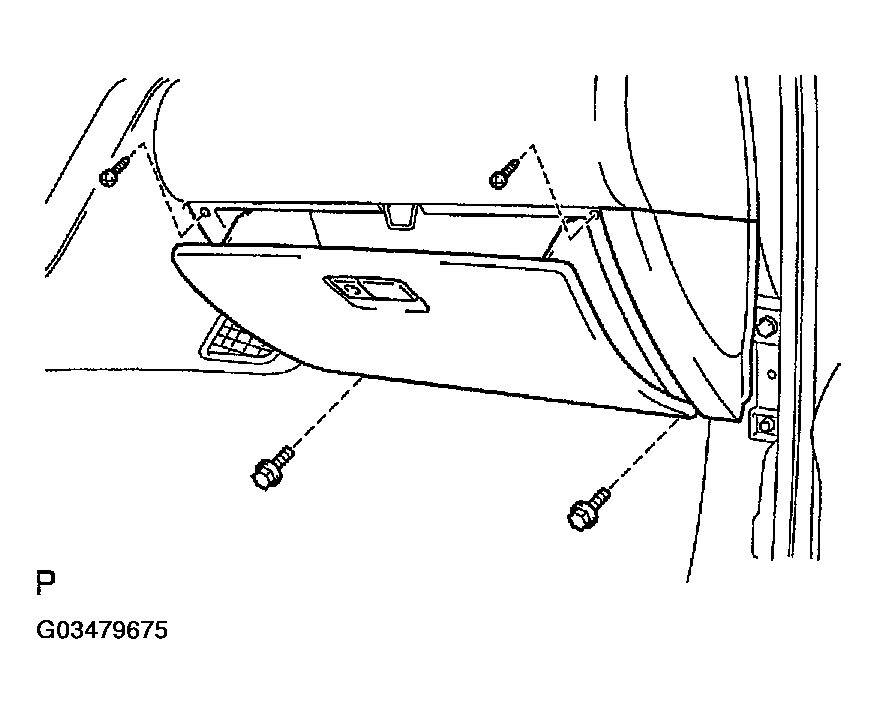

4. REMOVE GLOVE COMPARTMENT DOOR ASSY
   1. Remove the 2 bolts, 2 screws and glove compartment door assembly, and then disconnect the connectors.
   Fig 4: Removing Glove Compartment Door Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE MICROPHONE AMPLIFIER ASSY
   1. Disconnect the connectors.
   2. Disconnect the clamp and then remove the microphone amplifier assembly.
   Fig 5: Removing Microphone Amplifier Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
