Circuit Description

Refer to DTC P0120 on DTC P0120 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT, DTC P0122 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT LOW INPUT, DTC P0123 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT HIGH INPUT, DTC P0220 THROTTLE/PEDAL POSITION SENSOR/SWITCH "B" CIRCUIT, DTC P0222 THROTTLE/PEDAL POSITION SENSOR/SWITCH "B" CIRCUIT LOW INPUT, DTC P0223 THROTTLE/PEDAL POSITION SENSOR/SWITCH "B" CIRCUIT HIGH INPUT, DTC P2135 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A"/"B" VOLTAGE CURRELATION  .

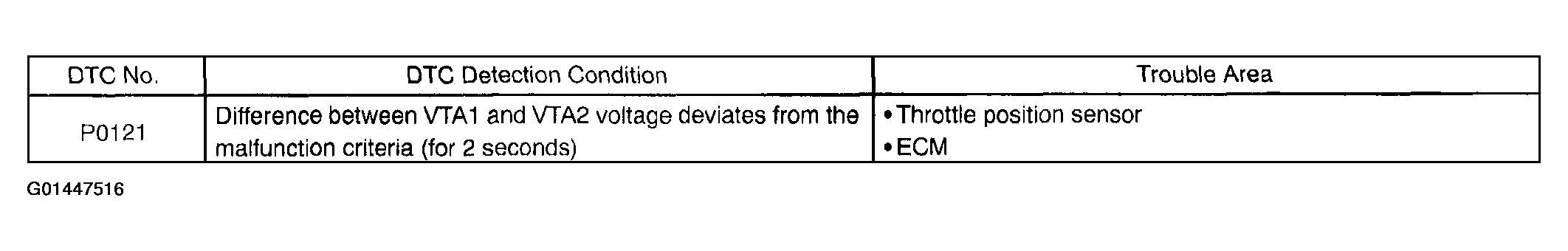

Fig 1: DTC Detection Condition/Possible Cause Chart
G01447516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
