Circuit Description

Refer to DTC P0130 on DTC P0130 OXYGEN SENSOR CIRCUIT (BANK 1 SENSOR 1), DTC P0150 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 2 SENSOR 1), DTC P2195 OXYGEN SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1), DTC P2197 OXYGEN SENSOR SIGNAL STUCK LEAN (BANK 2 SENSOR 1), DTC P2198 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 2 SENSOR 1)  .

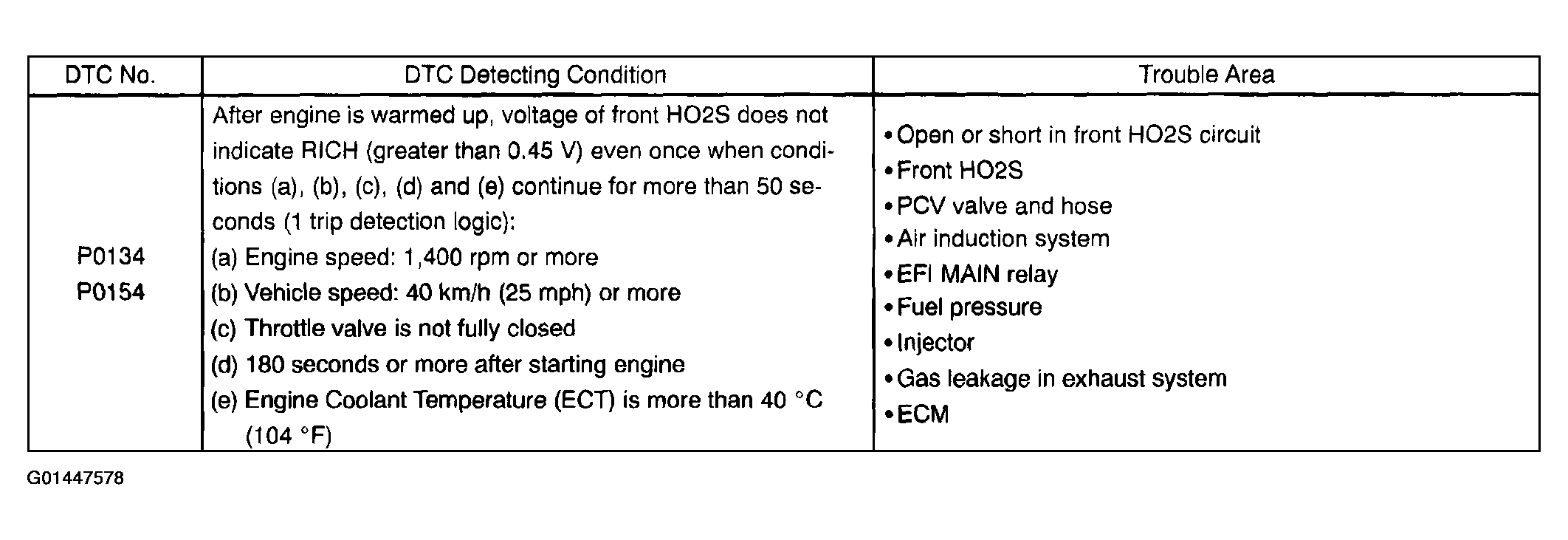

Fig 1: DTC Detection Condition/Possible Cause Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

After confirming DTC P0134, P0154, use the hand-held tester to confirm the output voltage of the HO2S (bank 1 sensor 1 and bank 2 sensor 1). If the voltage output of the HO2S is less than 0.1 V, the HO2S circuit may be open or short.
