System Diagram: Notes

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

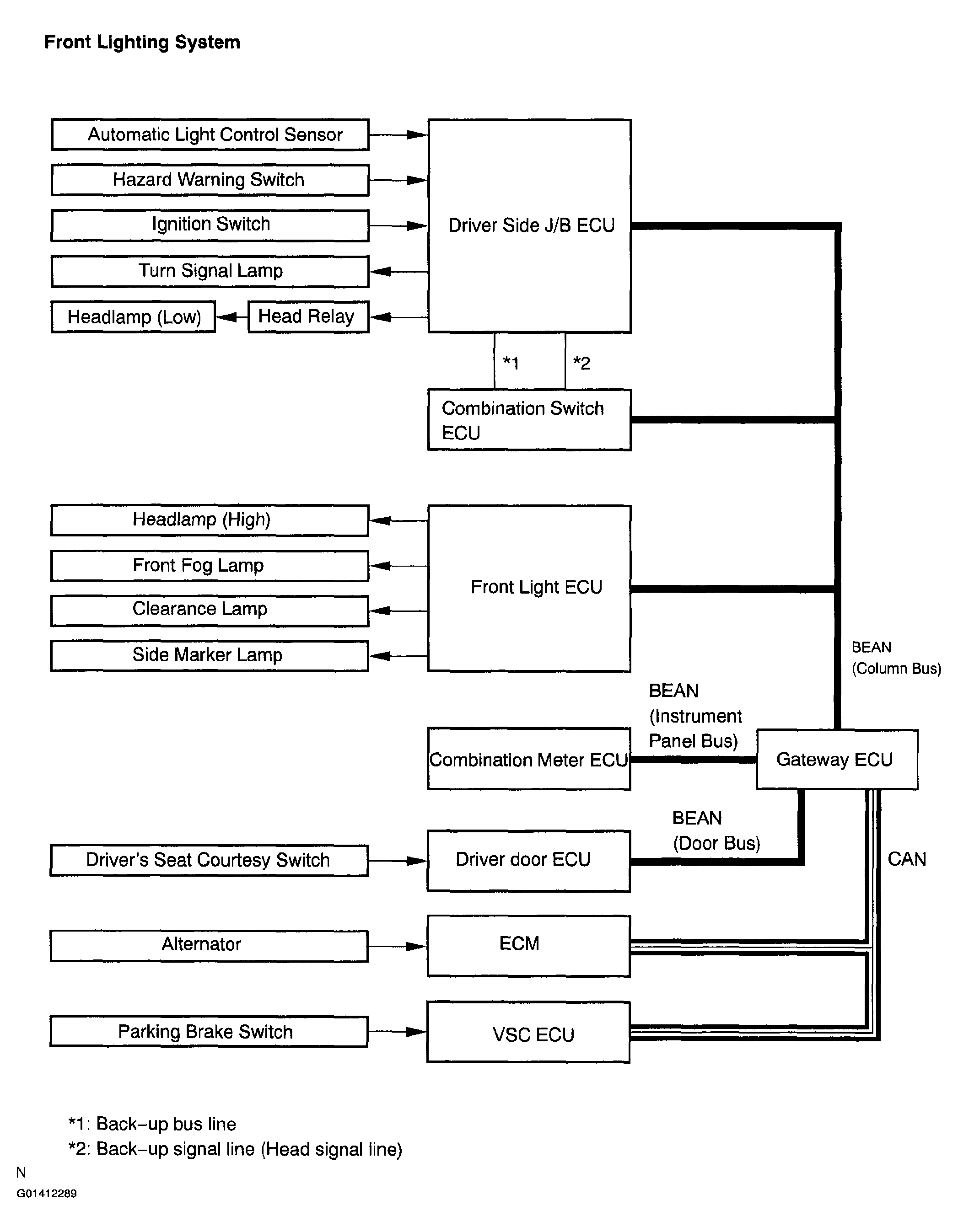

Fig 1: System Diagram (Front Lighting)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

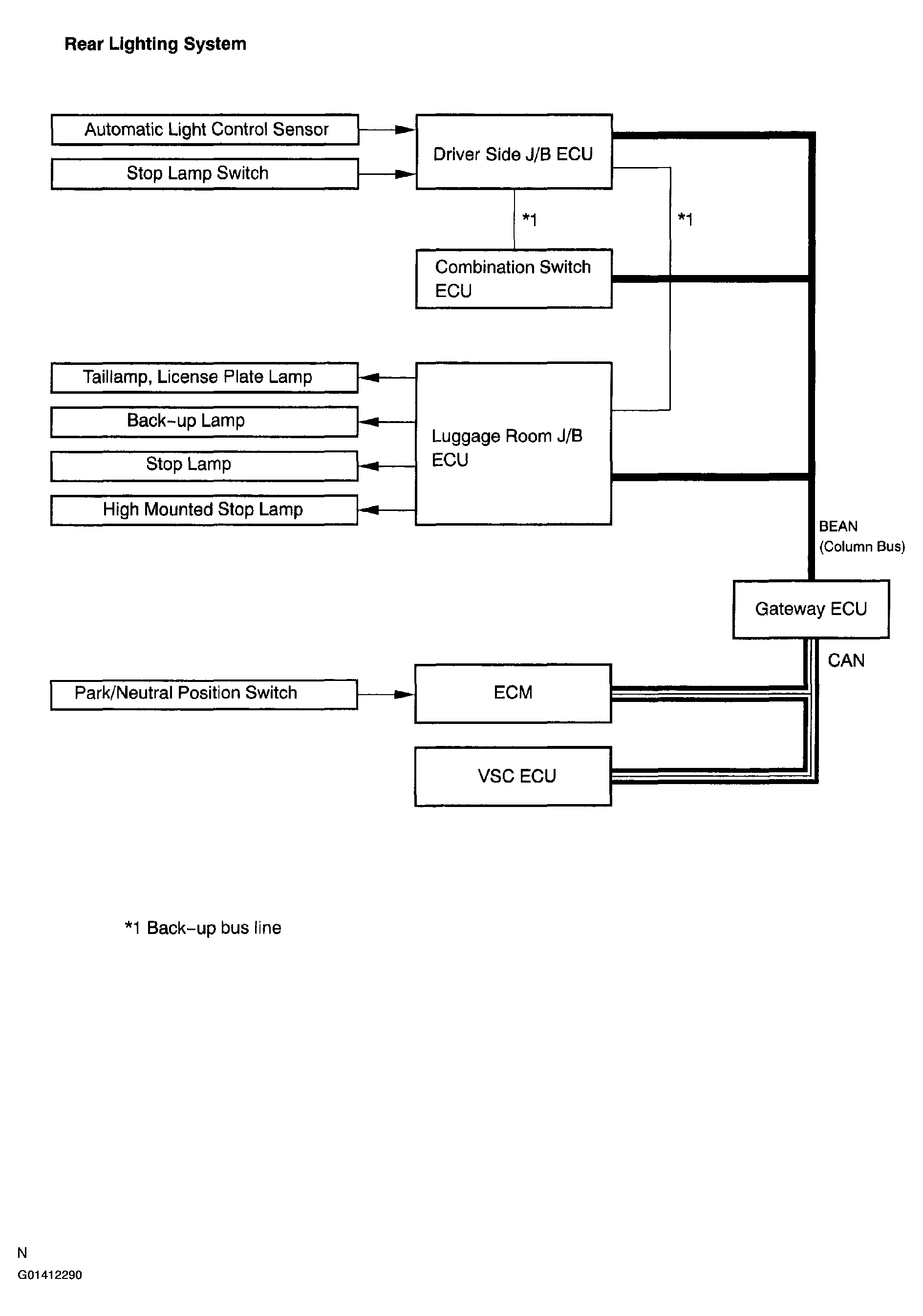

Fig 2: System Diagram (Rear Lighting)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

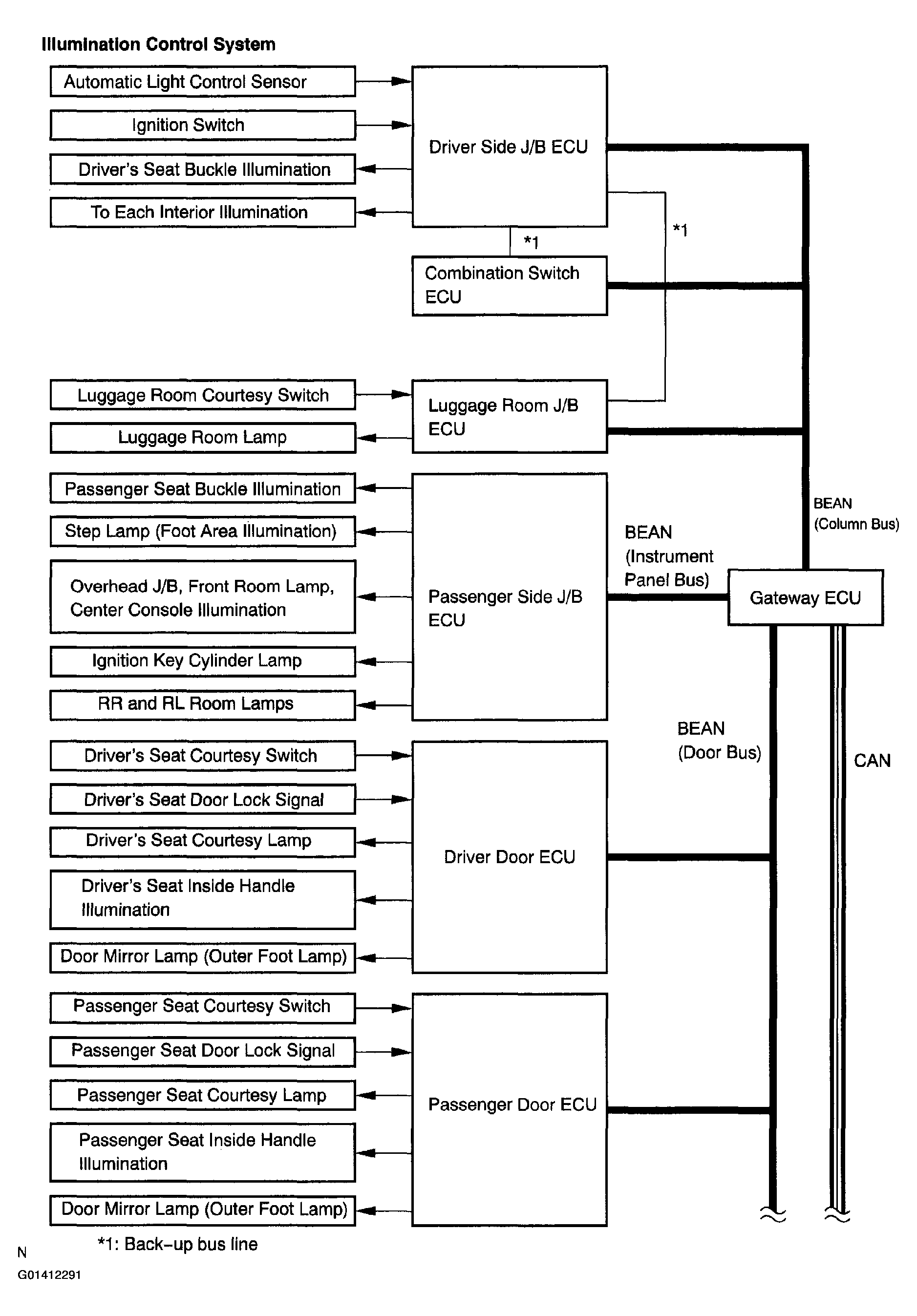

Fig 3: System Diagram (Illumination Control) 1 Of 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

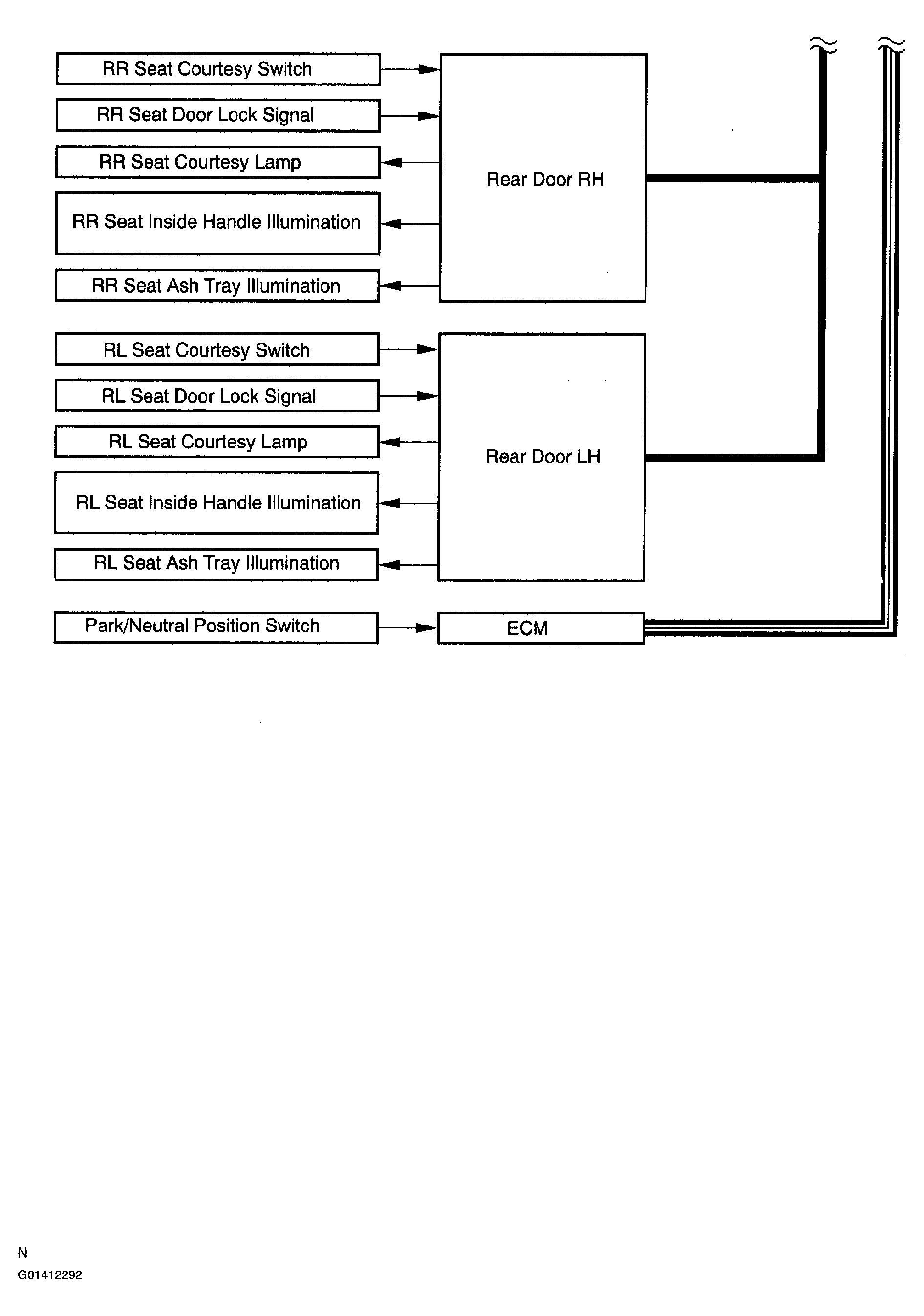

Fig 4: System Diagram (Illumination Control) 2 Of 2

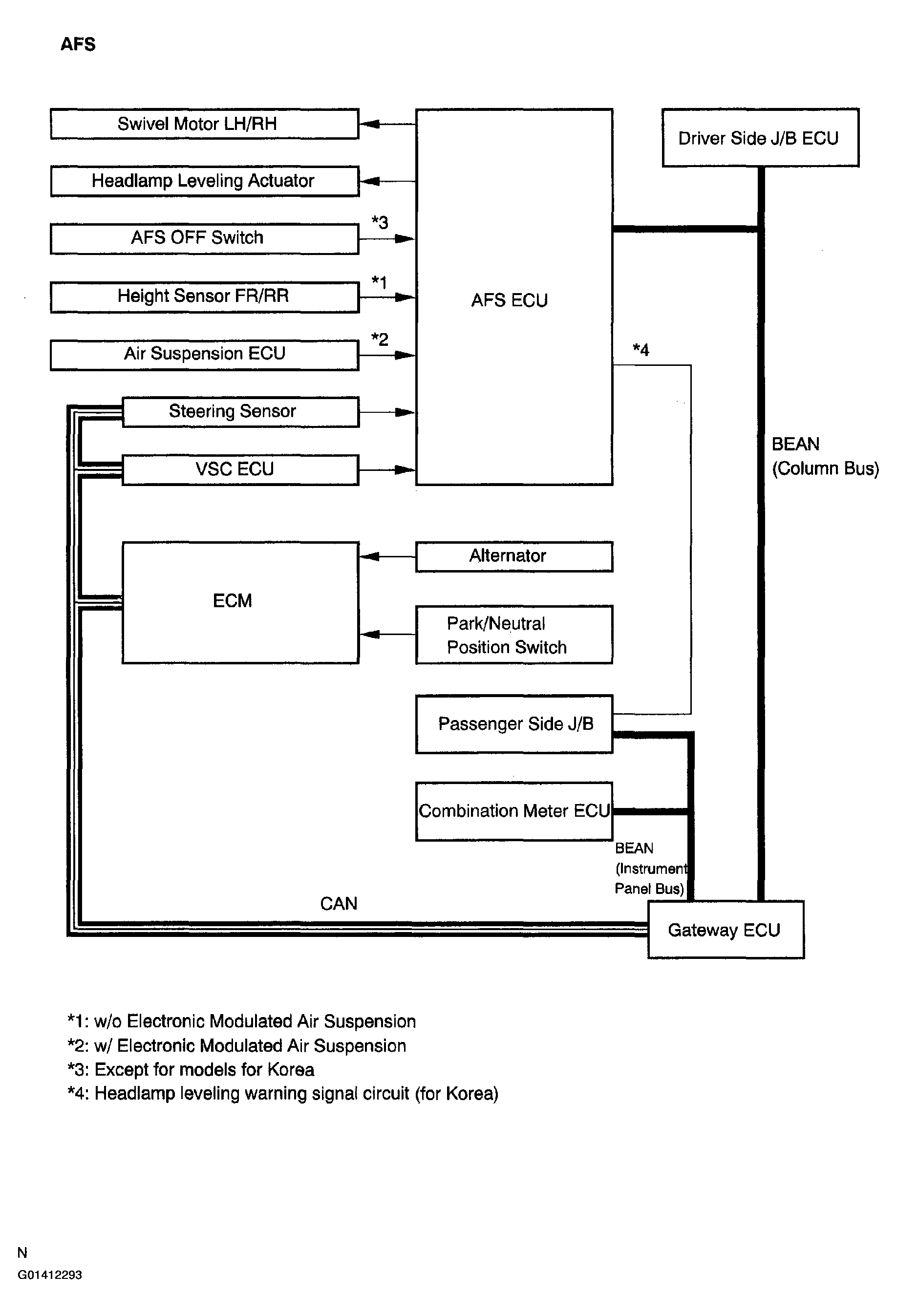

Fig 5: System Diagram (AFS)
