Data List/Active Test

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

DATA LIST
HINT:

By the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator and so on without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one of the methods to shorten labor time.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. According to the display on the tester, read the "DATA LIST".
SPAD:

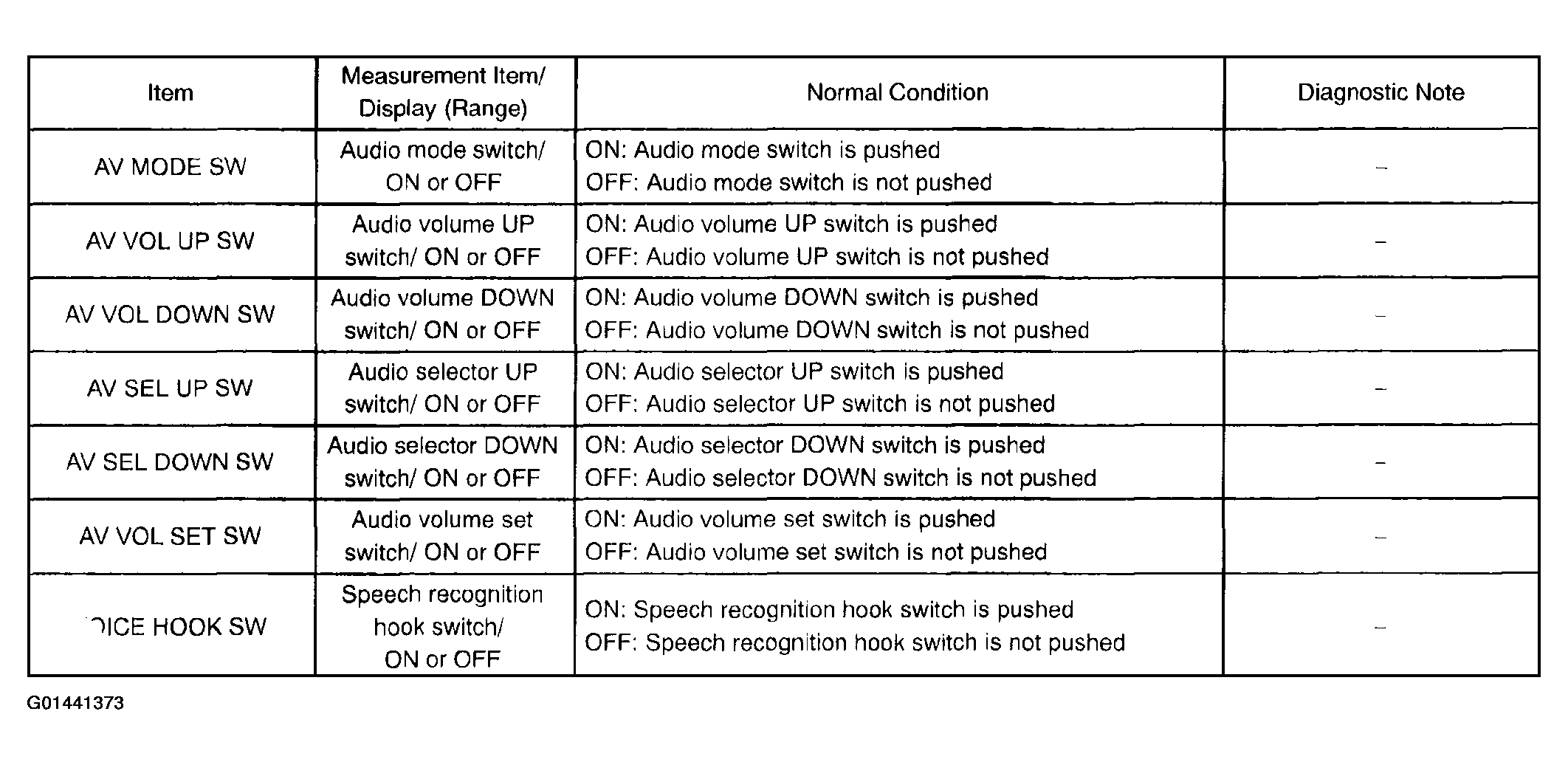

Fig 1: SPAD - Data List
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
