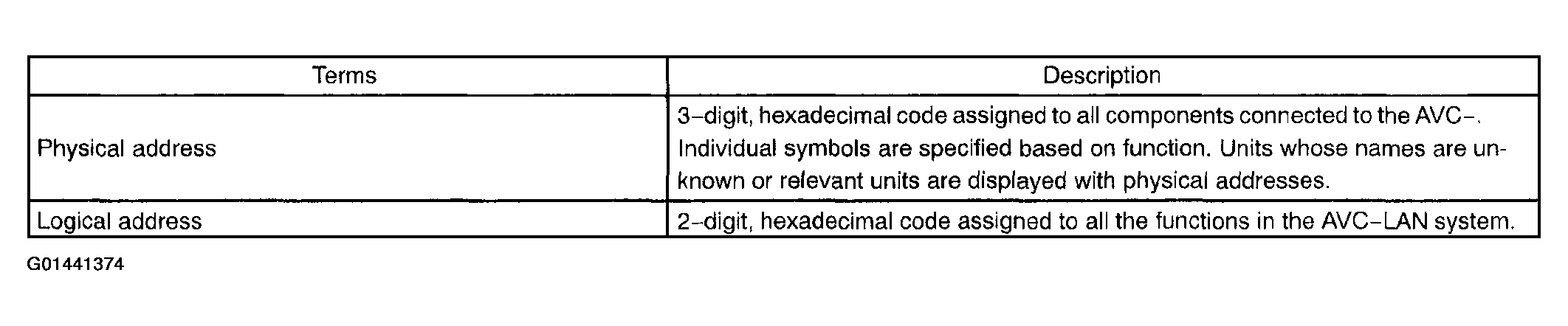

Diagnostic Trouble Code Chart

Fig 1: Diagnostic Trouble Code Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Titles for each unit are stated in the following order: parts name (physical address) [Name indicated by DTC]

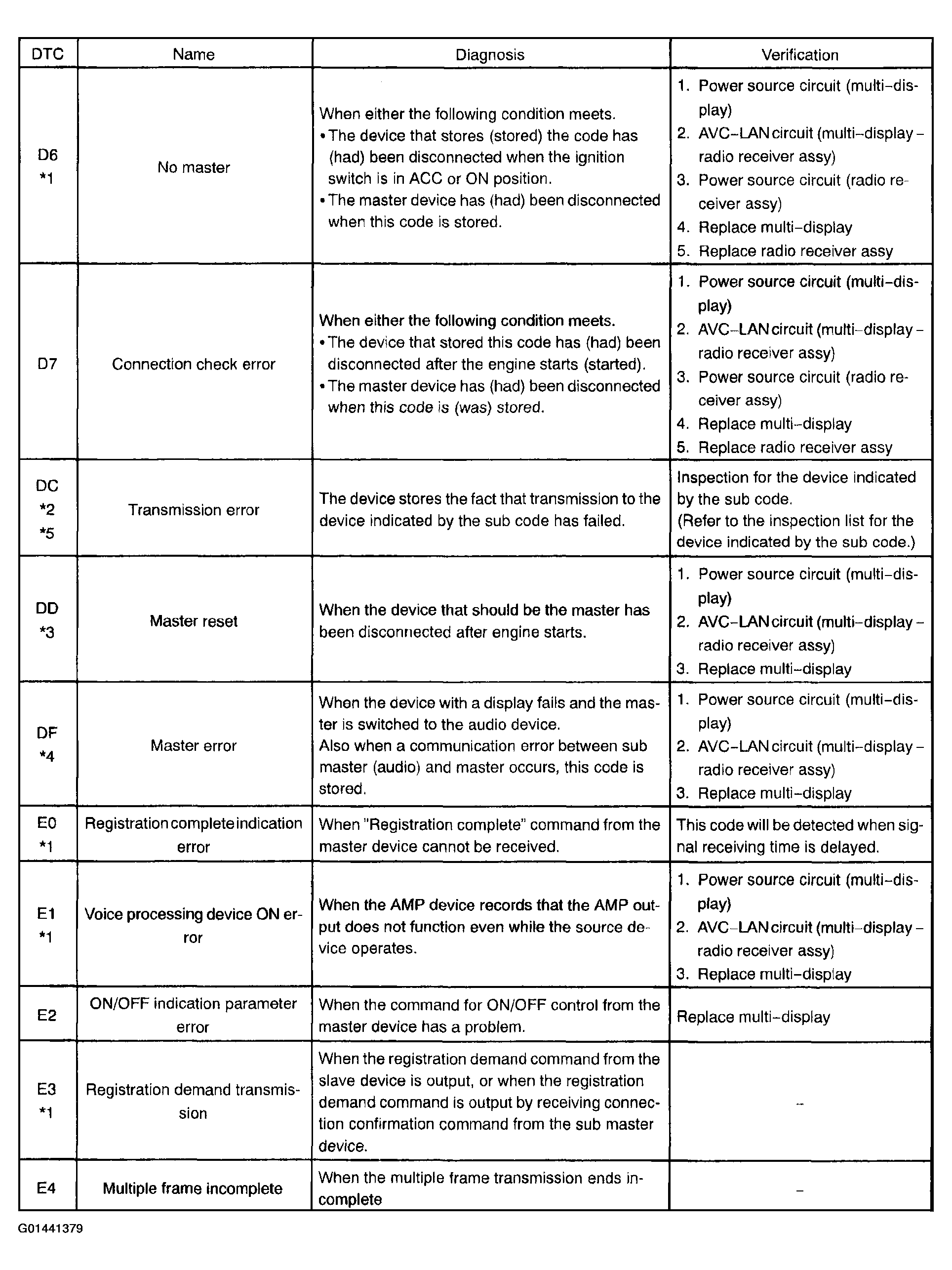

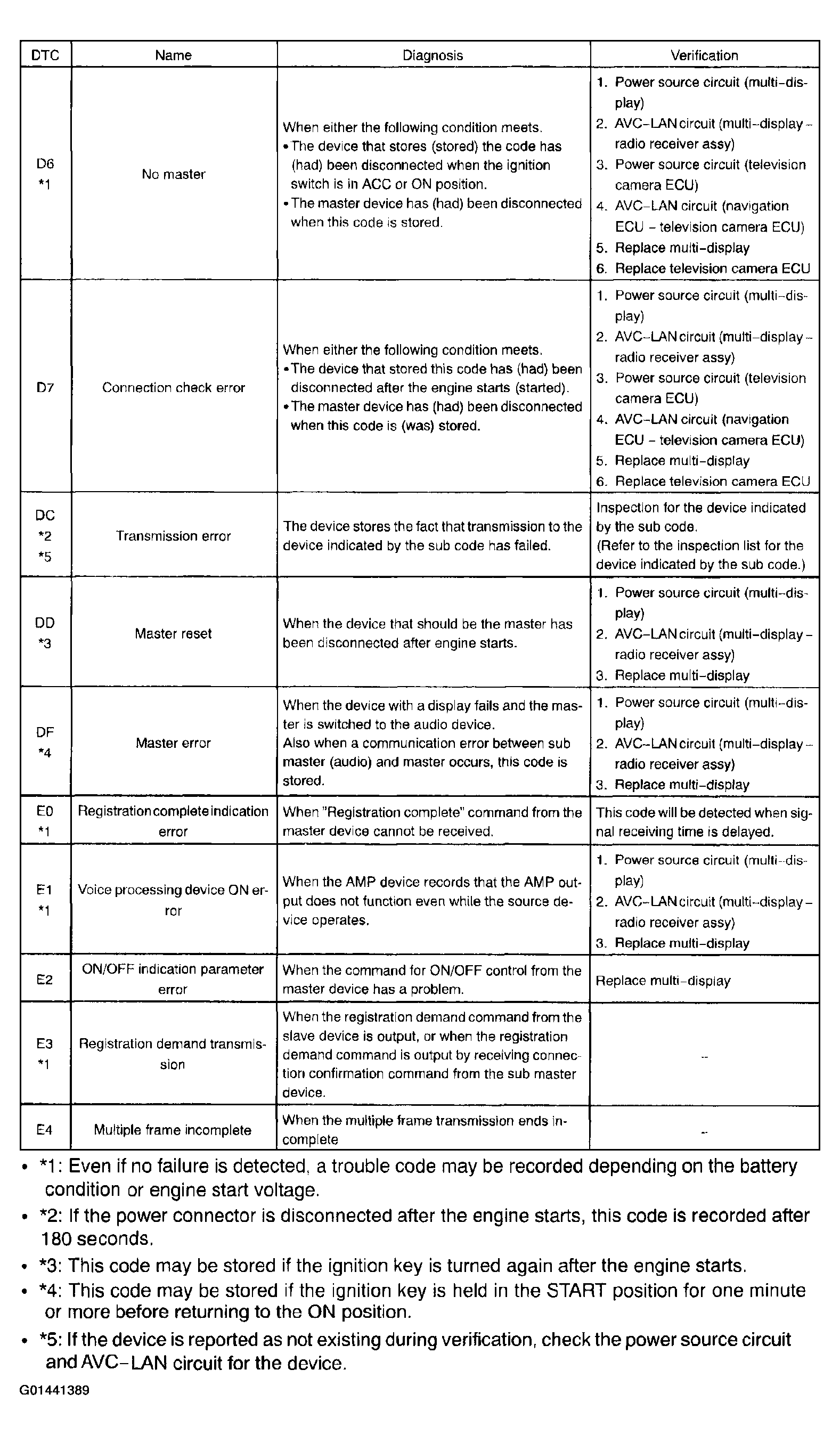

1. MULTI-DISPLAY (physical address: 110) [EMV]

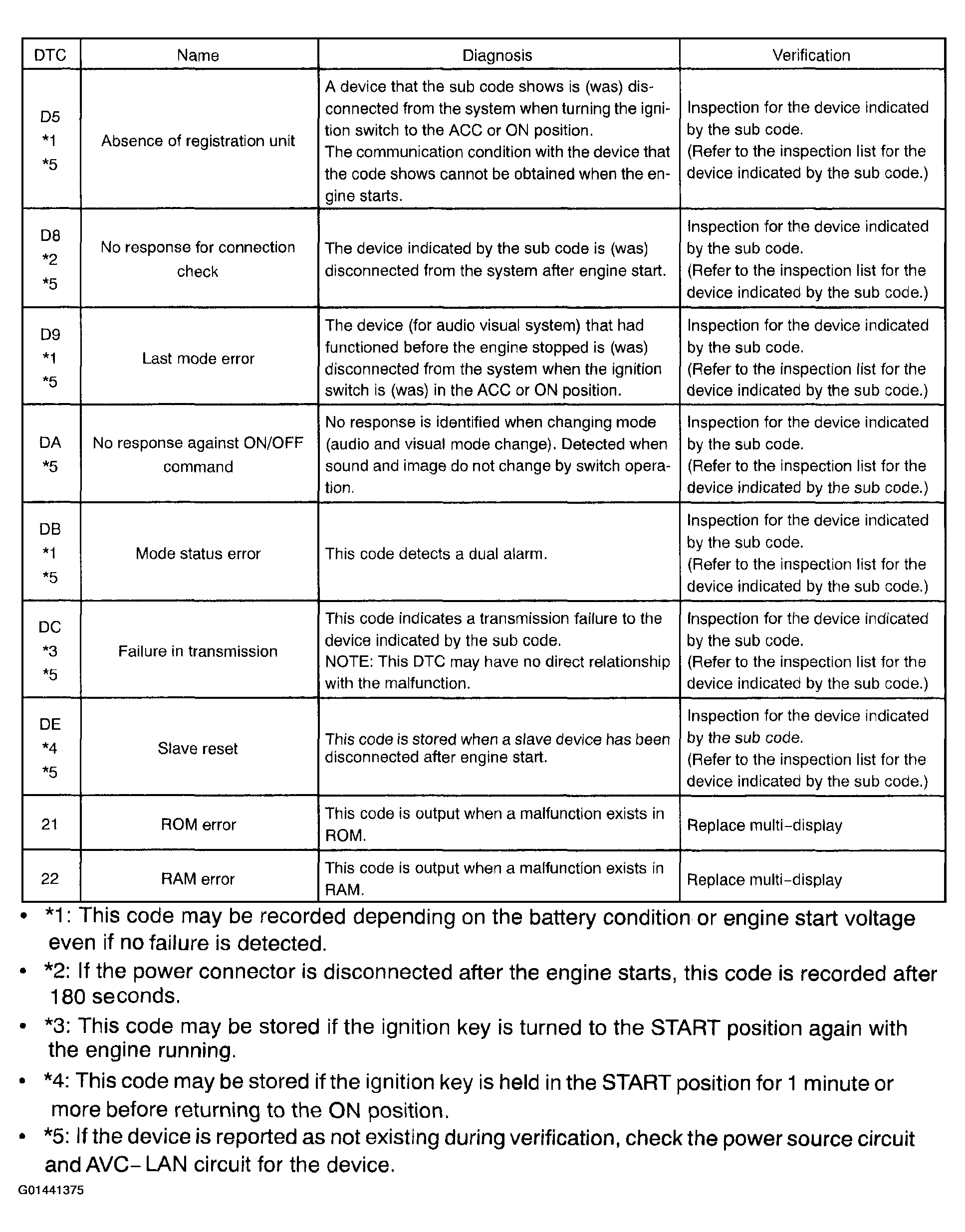

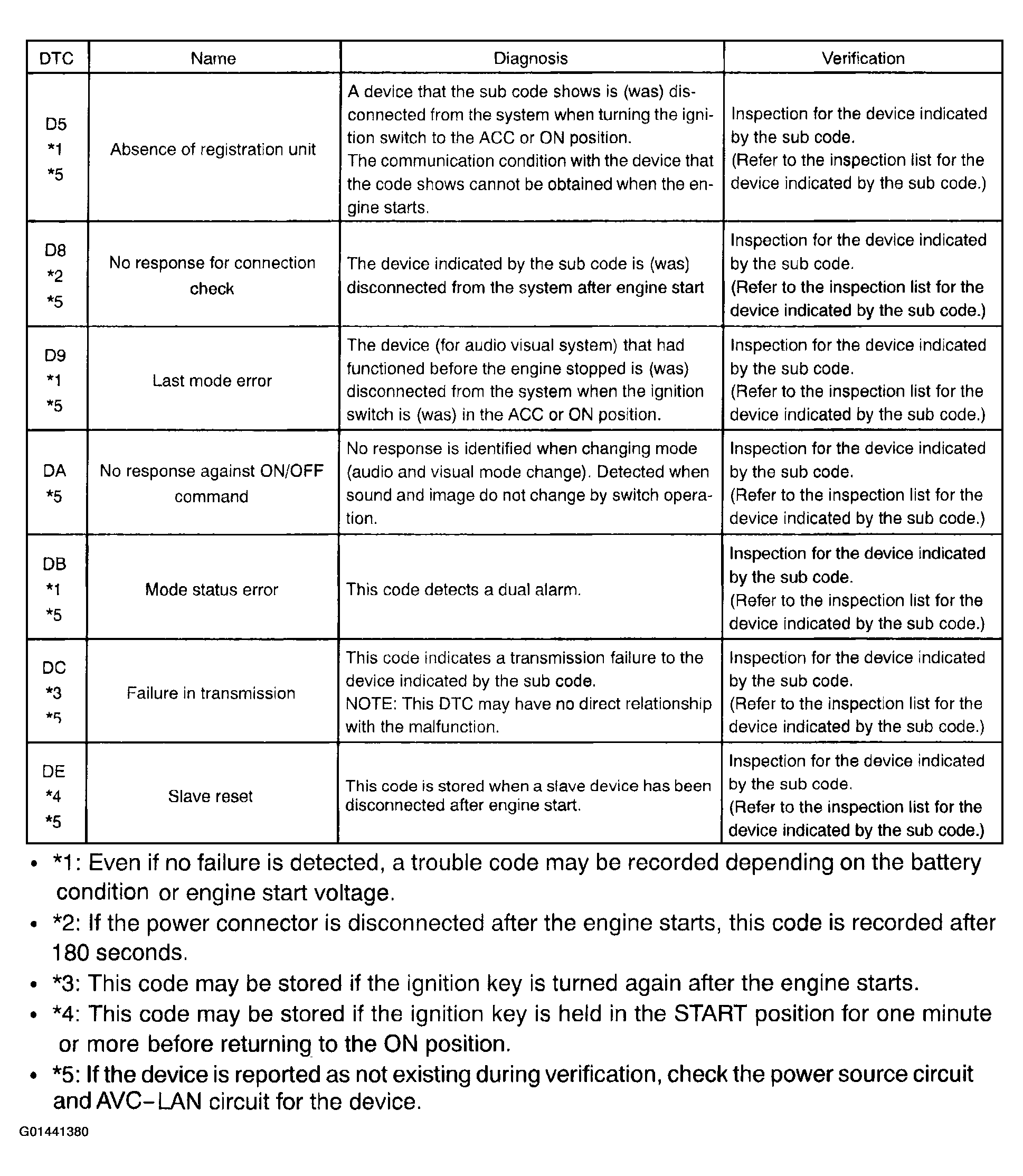

   1. Logical address: 01 (Communication control)

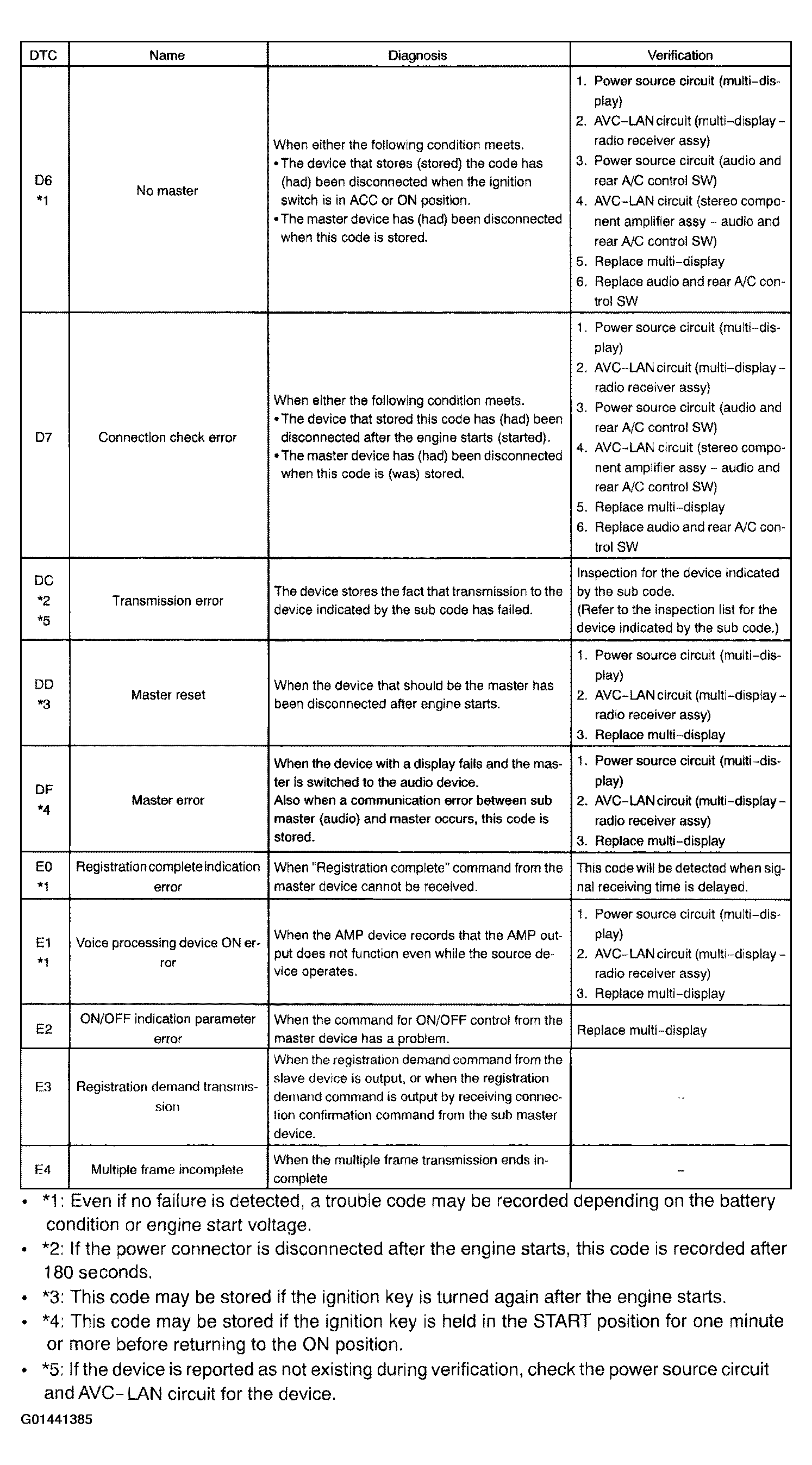

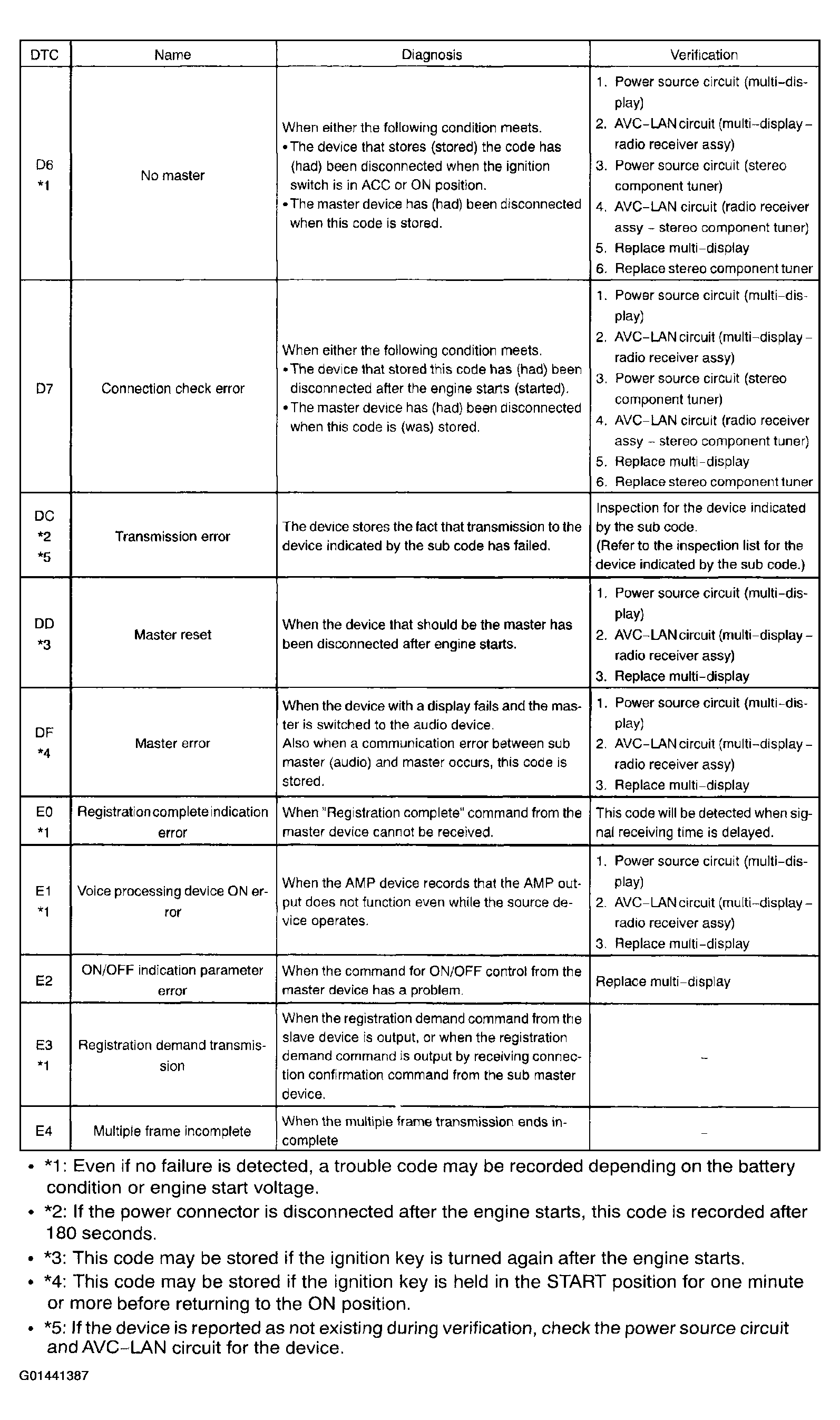

      Fig 2: Logical Address 01 Chart - (Communication Control)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      1. *1: This code may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
      2. *2: If the power connector is disconnected after the engine starts, this code is recorded after 180 seconds.
      3. *3: This code may be stored if the ignition key is turned to the START position again with the engine running.
      4. *4: This code may be stored if the ignition key is held in the START position for 1 minute or more before returning to the ON position.
      5. *5: If the device is reported as not existing during verification, check the power source circuit and AVC-LAN circuit for the device.

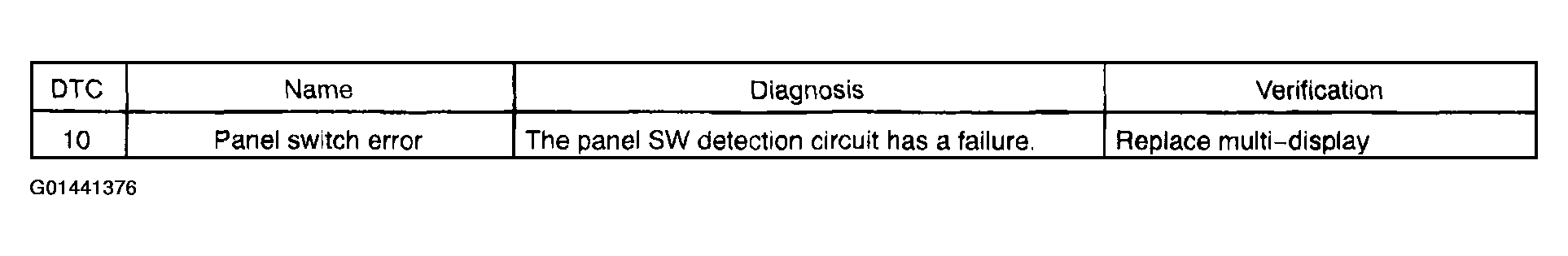

   2. Logical address: 21 (SW): 23 (SW with name): 24 (SW converting): 25 (command SW)
      Fig 3: Logical Address 21, 23, 24 And 25 Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. NAVIGATION ECU (Physical address: 178) [NAVI]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

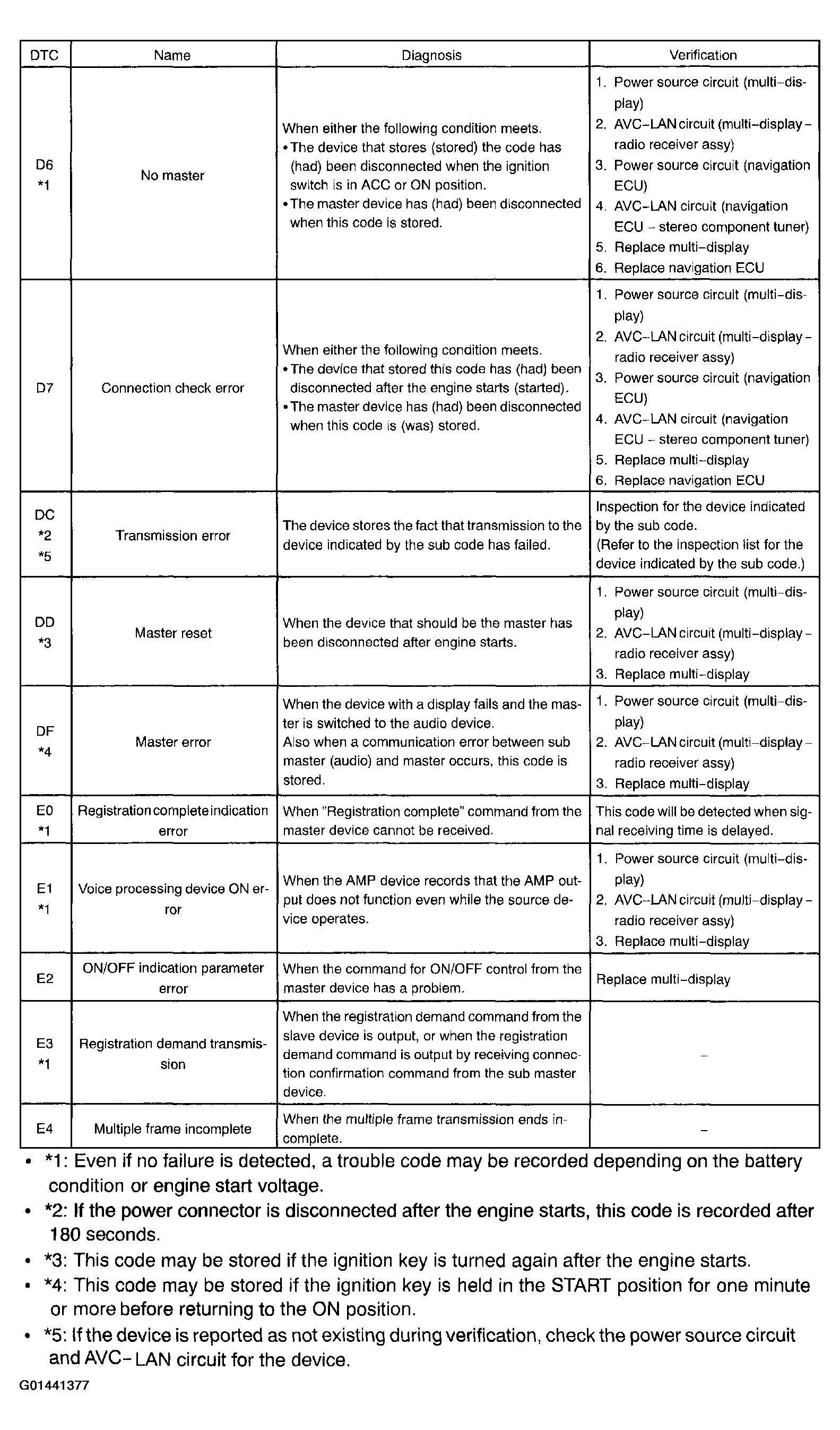

      Fig 4: Logical Address 01 Chart - Communication Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 58 (Navigation): 80 (GPS)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

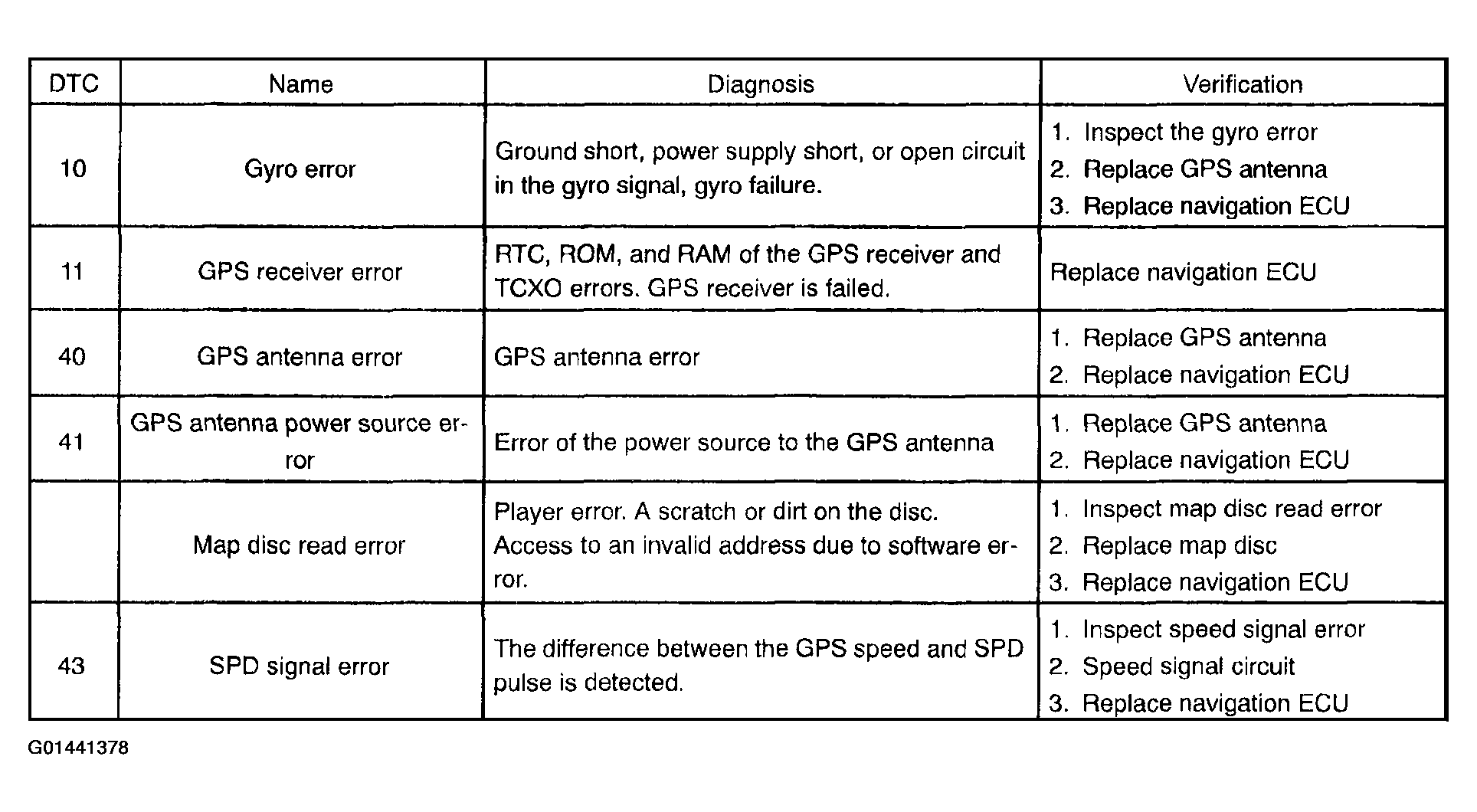

      Fig 5: Logical Address 58 Chart - Navigation

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

      Fig 6: Logical Address 01 Chart - Communication Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 01 (Communication control)

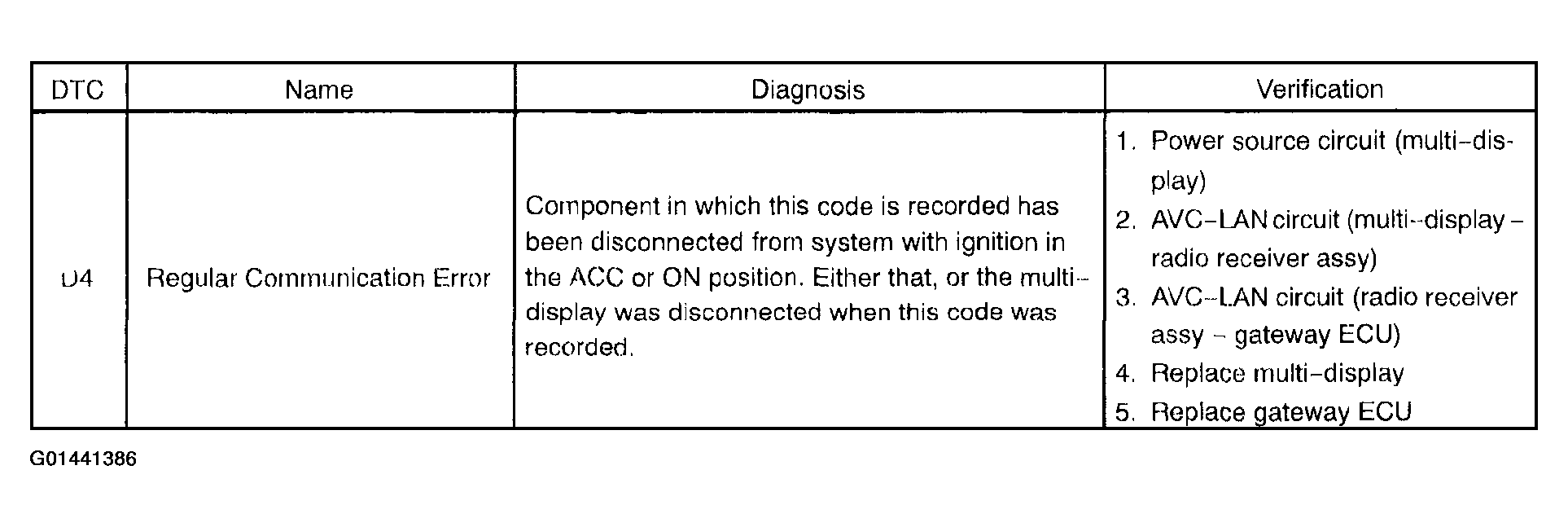

      Fig 7: Logical Address 01 Chart - Communication Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Logical address: 62 (CD): 63 (CD changer)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

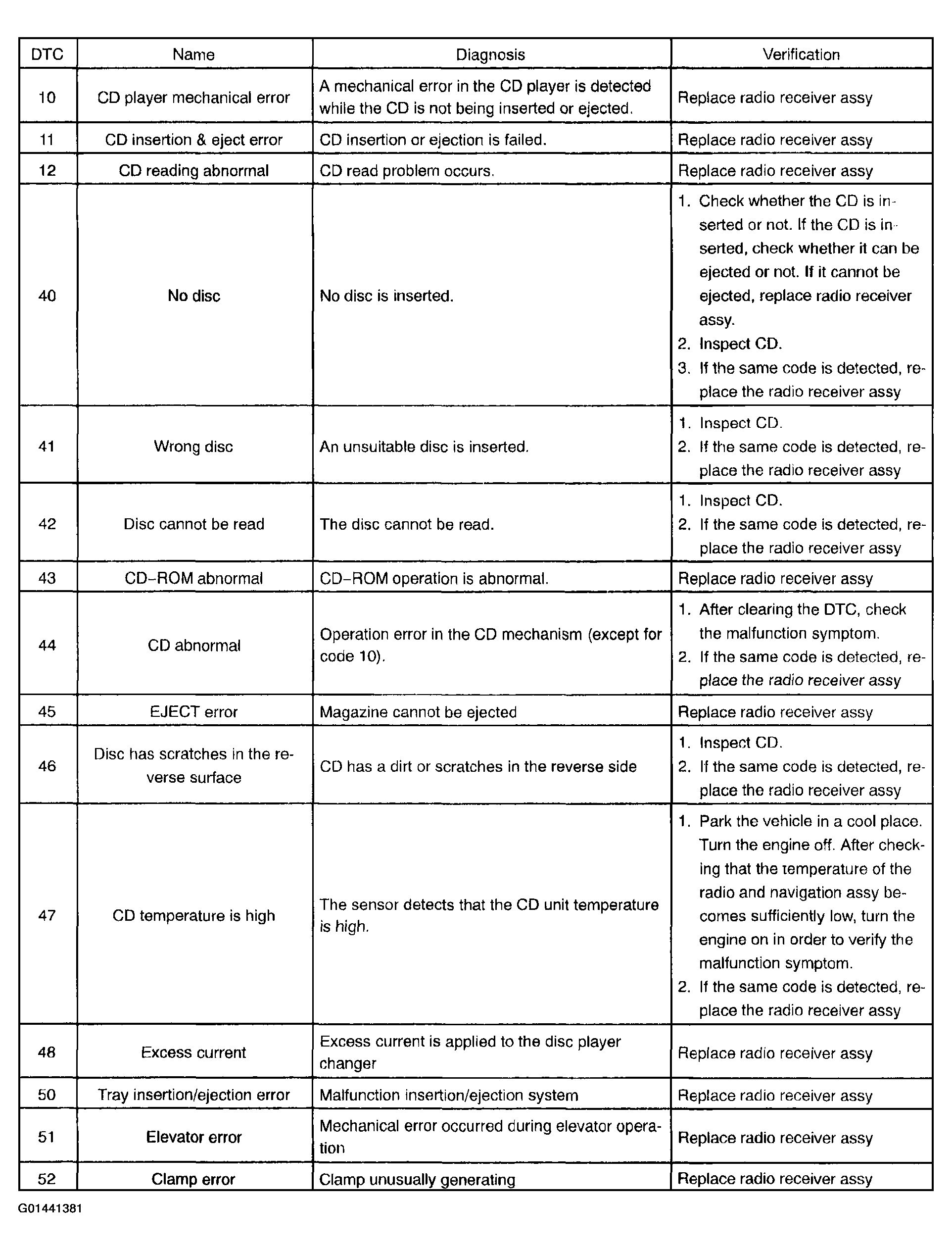

      Fig 8: Logical Address 62 And 63 Chart - CD And CD Changer

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Logical address: 61 (Cassette)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

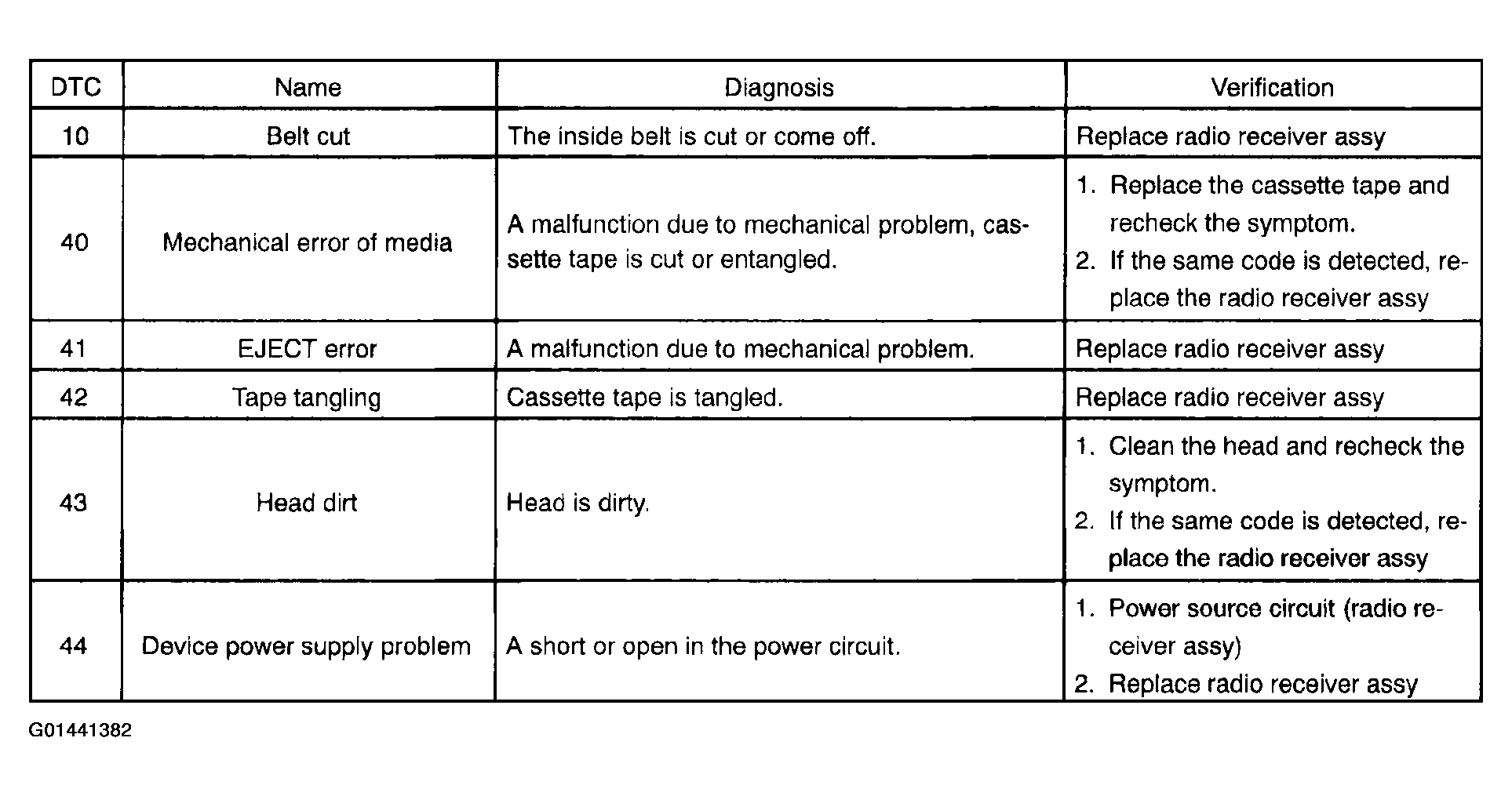

      Fig 9: Logical Address 61 Chart - Cassette

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. TELEPHONE TRANSCEIVER AND SPEAKER RELAY (Physical address: 17D) [TEL]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

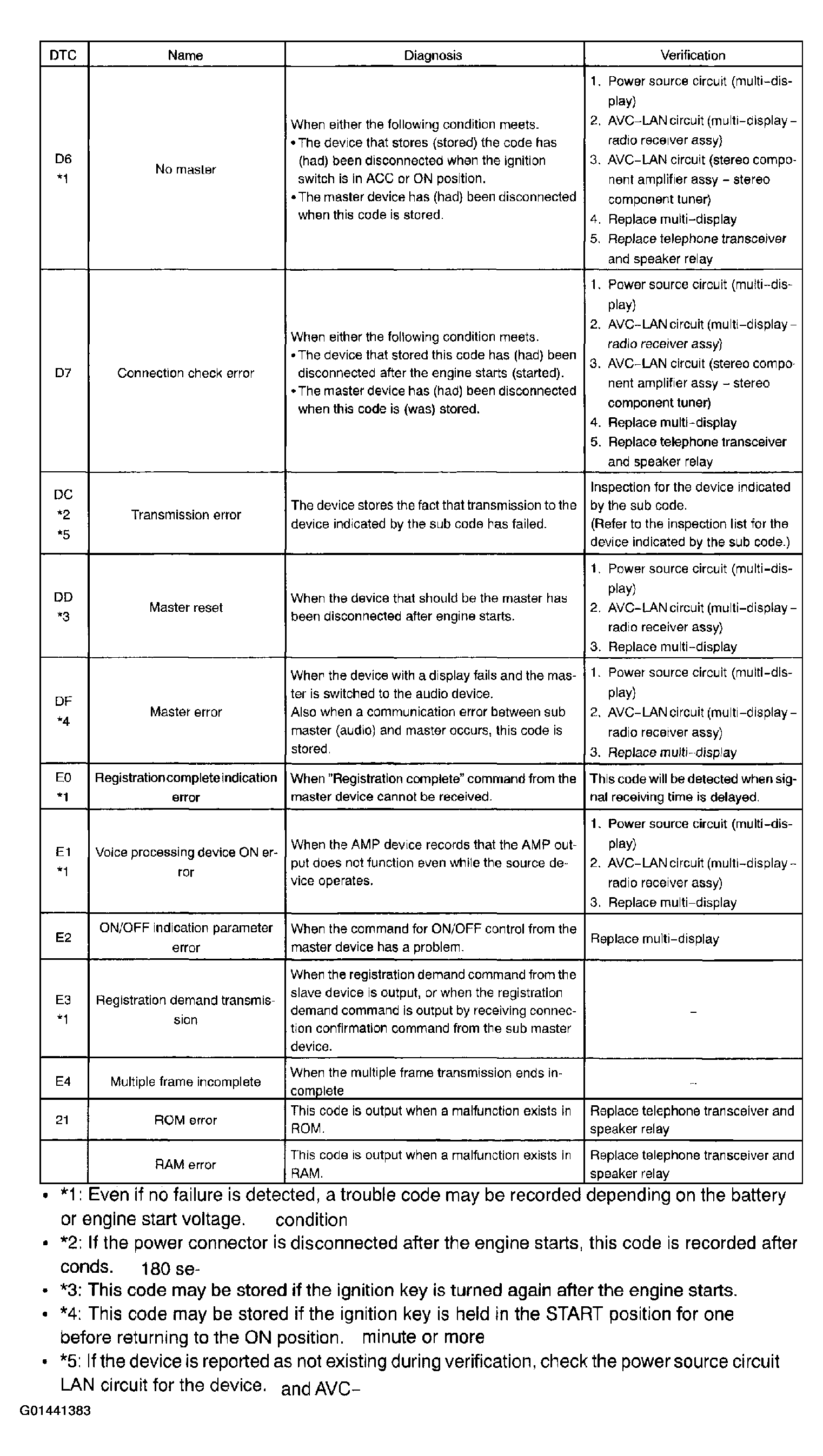

      Fig 10: Logical Address 01 Chart - Communication Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

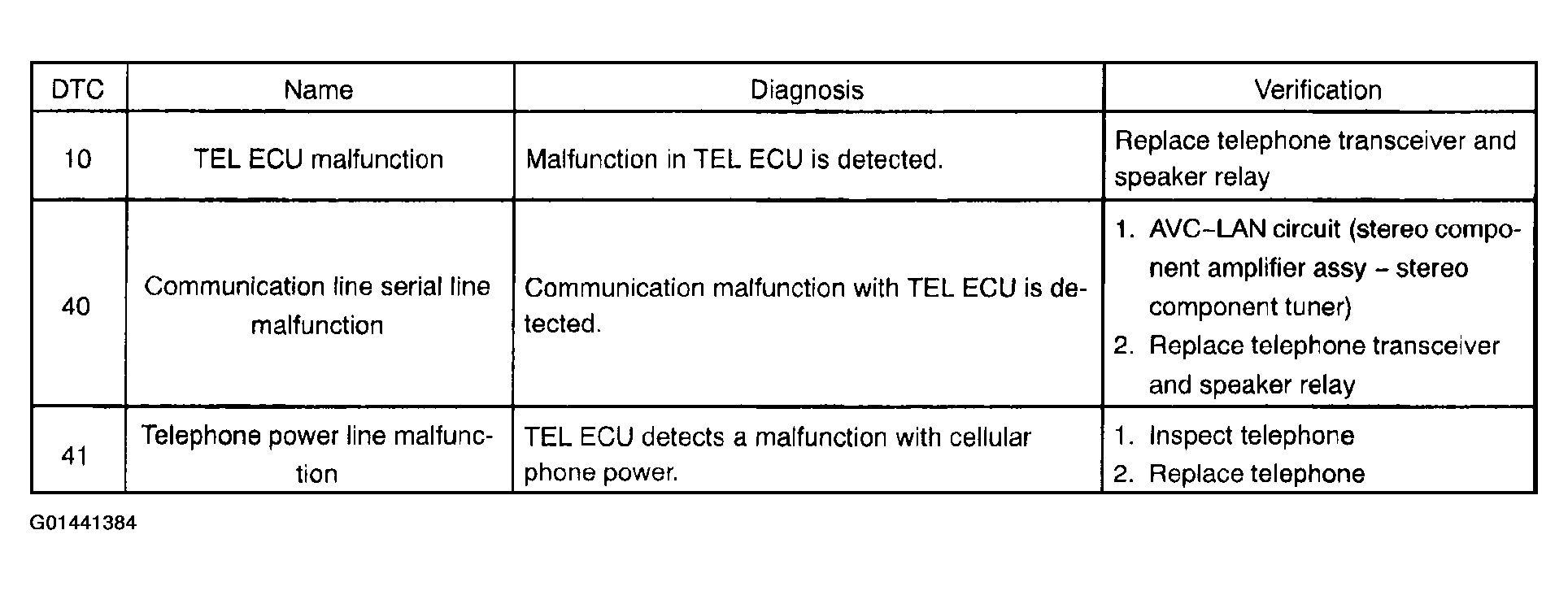

   2. Logical address: 57 (Telephone information drawing): 68 (TEL)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

      Fig 11: Logical Address 57 Chart - Telephone Information Drawing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. AUDIO AND REAR A/C CONTROL SW (Physical address: 1CO) [Rr-CONT]
   1. Logical address: 01 (Communication control)

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column

   Fig 12: Logical Address 01 Chart - Communication Control

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. GATEWAY ECU (Physical address: 1C6) [G/W]
   1. Logical address: 01 (Communication control)

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column.

   Fig 13: Logical Address 01 Chart - Communication Control

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   This code is stored 210 seconds after the power supply connector of the master component is disconnected with the ignition switch in the ACC or ON position.

7. STEREO COMPONENT TUNER (Physical address: 1F0) [RADIO TUNER]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

      Fig 14: Logical Address 01 Chart - Communication Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

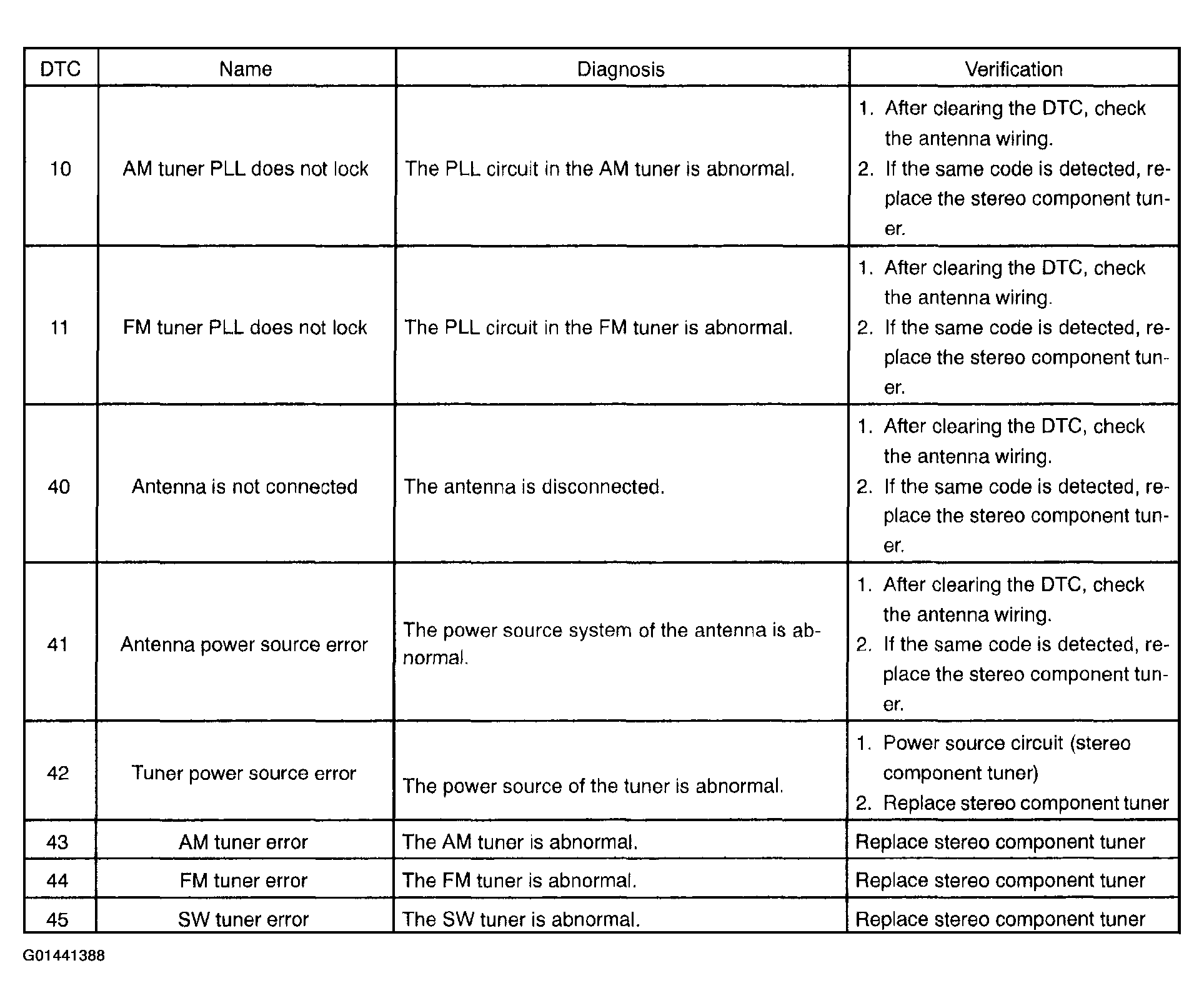

   2. Logical address: 60 (Radio)

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column.

   Fig 15: Logical Address 60 Chart - Radio

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. TELEVISION CAMERA ECU (Physical address: 280) [CAMERA]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

      Fig 16: Logical Address 01 Chart - Communication Control

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 5C (Camera)

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column.

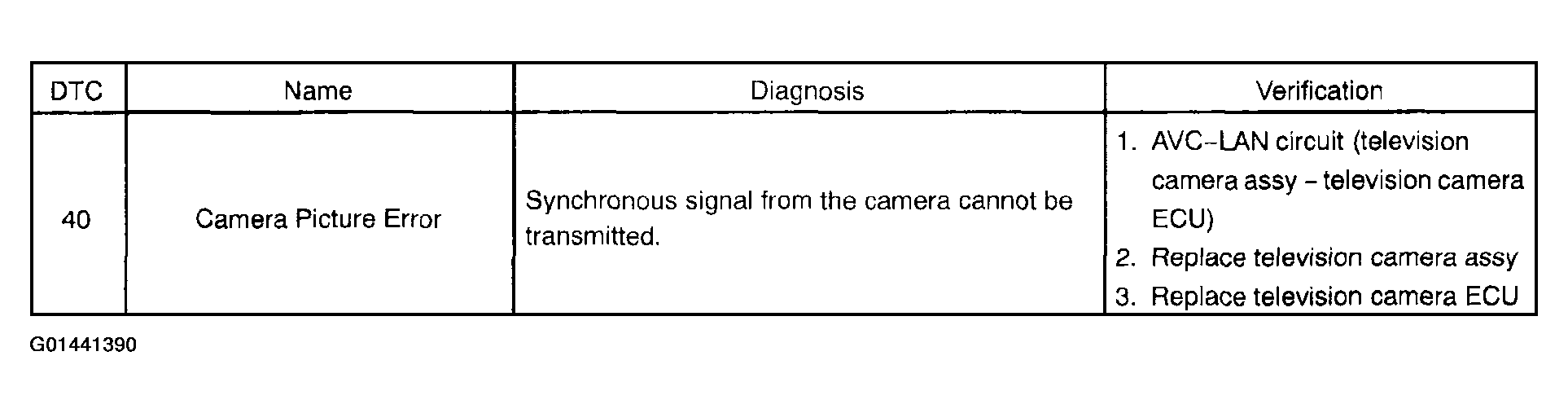

   Fig 17: Logical Address 5C Chart - Camera

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]
   1. Logical address: 01 (Communication control)

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column.

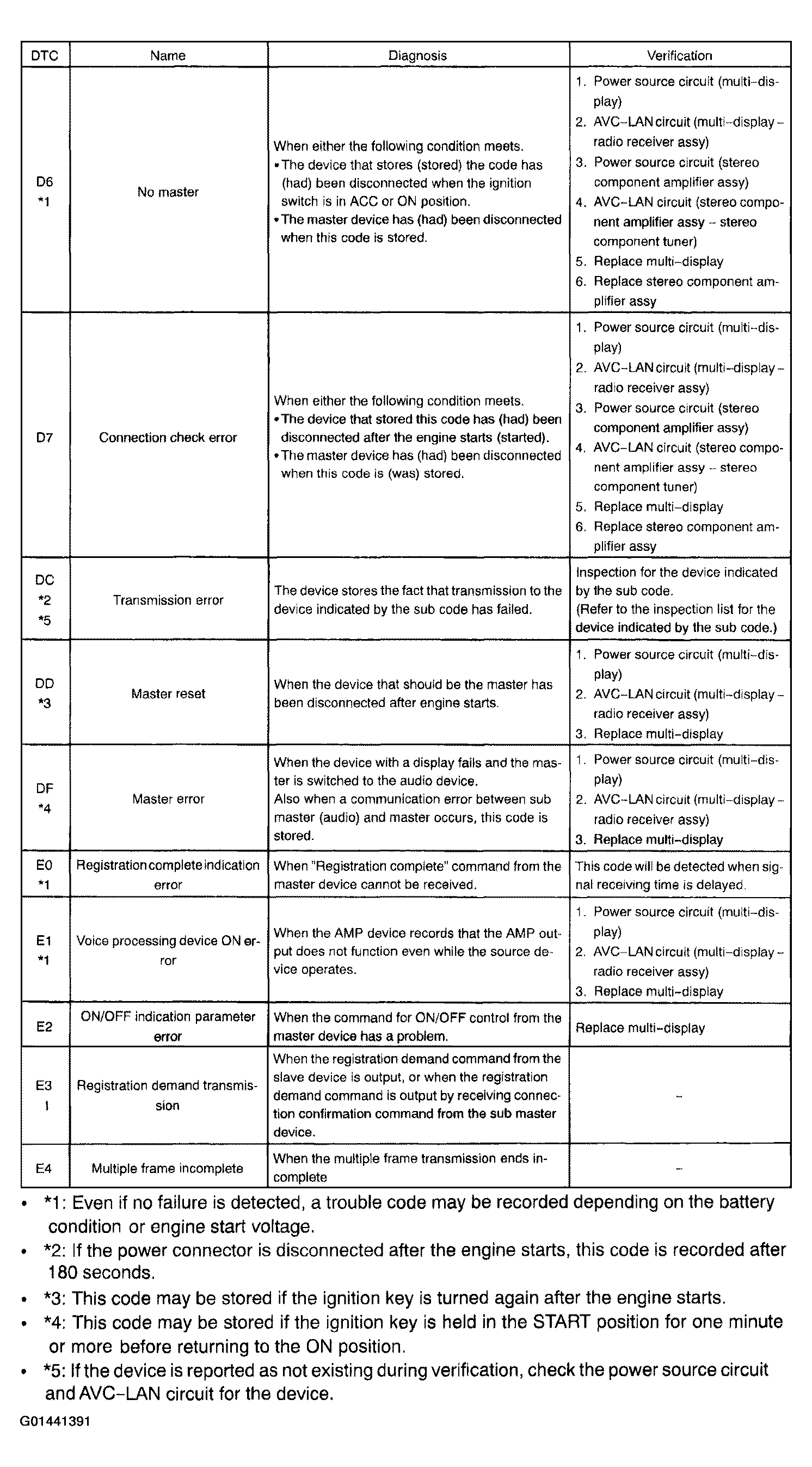

   Fig 18: Logical Address 01 Chart - Communication Control

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. THE INSPECTION LIST FOR THE DEVICE INDICATED BY THE SUB CODE

    HINT:

    Methods used to verify the cause of the problem are listed in order of probability in the verification column.

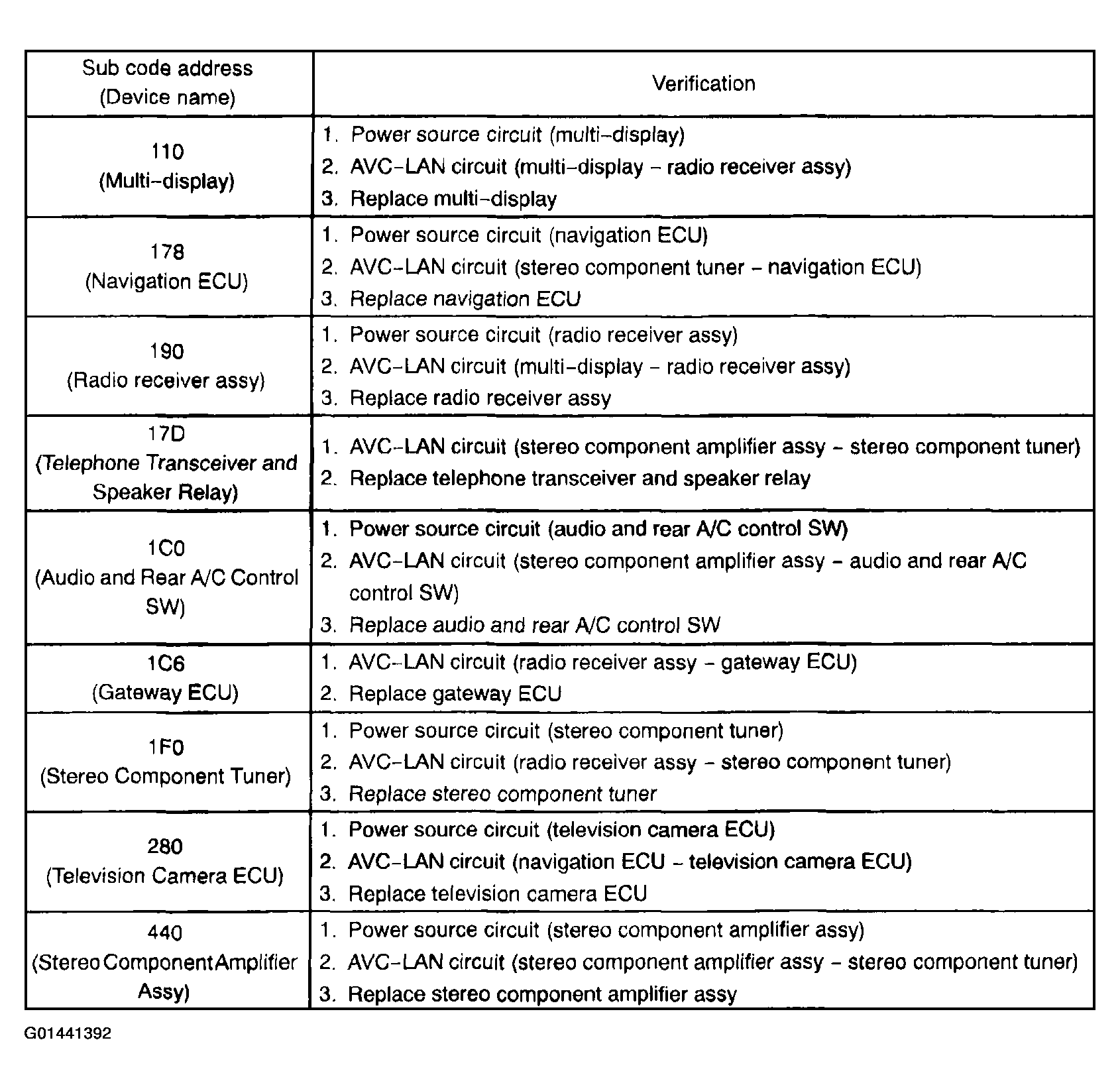

    Fig 19: Device Indicated By Sub Code Inspection List

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
