Display Check Mode (Color Bar Check)

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the color display on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

Fig 1: Identifying Multi-Display - Display Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

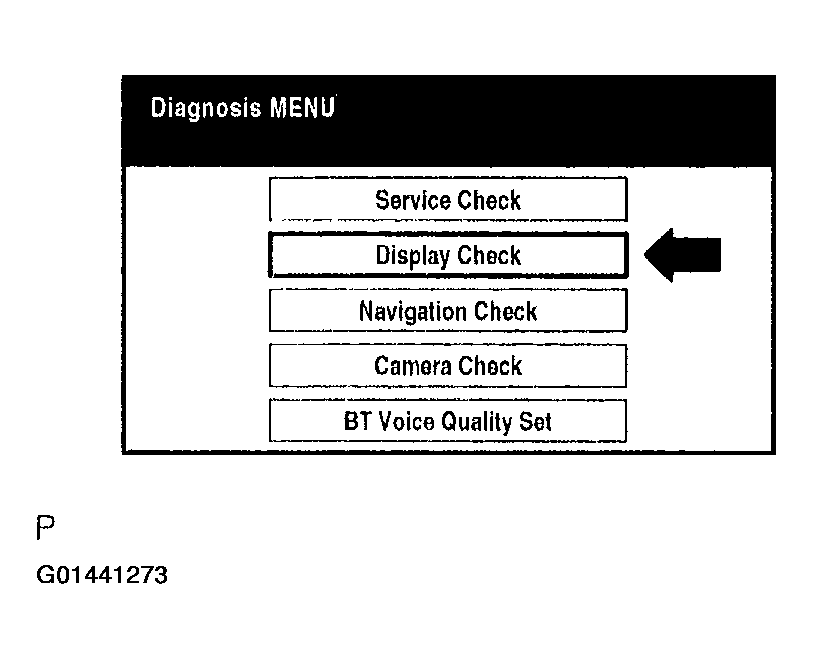

Select "Display Check" from the "Diagnosis MENU" screen.

Fig 2: Identifying Multi-Display - Color Bar Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

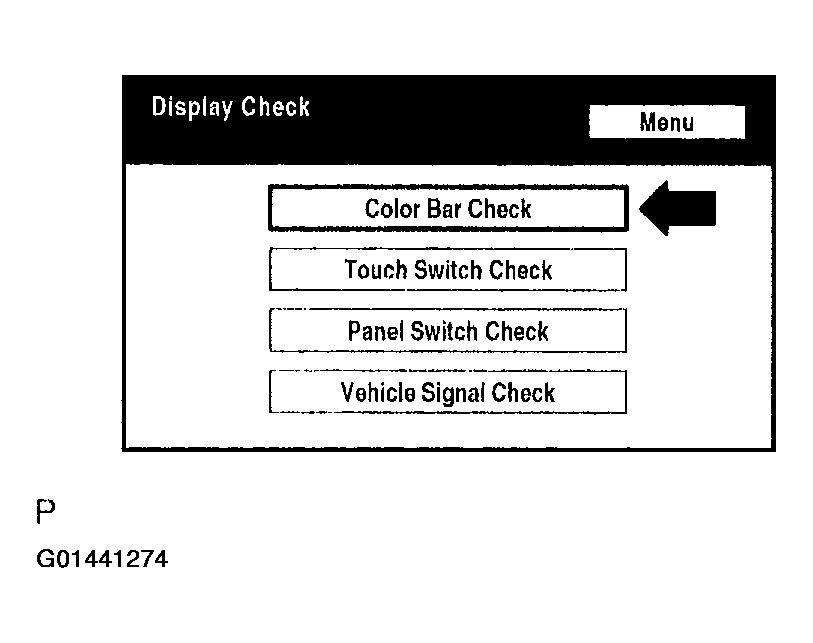

Select "Color Bar Check" from the "Display Check" screen.

Fig 3: Identifying Multi-Display - Color Bar Check Mode
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

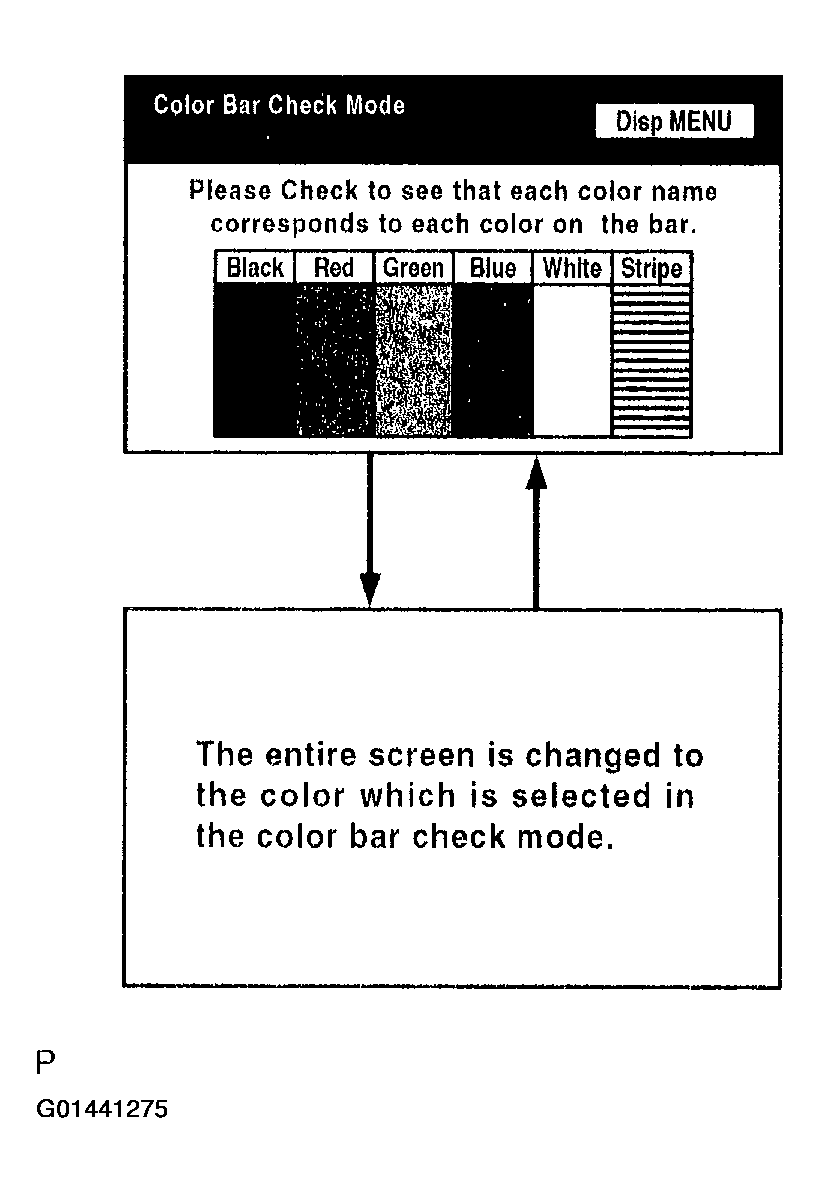

Select a color bar from the "Color Bar Check Mode" screen.
HINT:
- The entire screen turns to the color or stripe selected.
- Touching the display will return to the "Color Bar Check" screen.
