Display Check Mode (Panel Switch Check)

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the panel switch operation response on the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

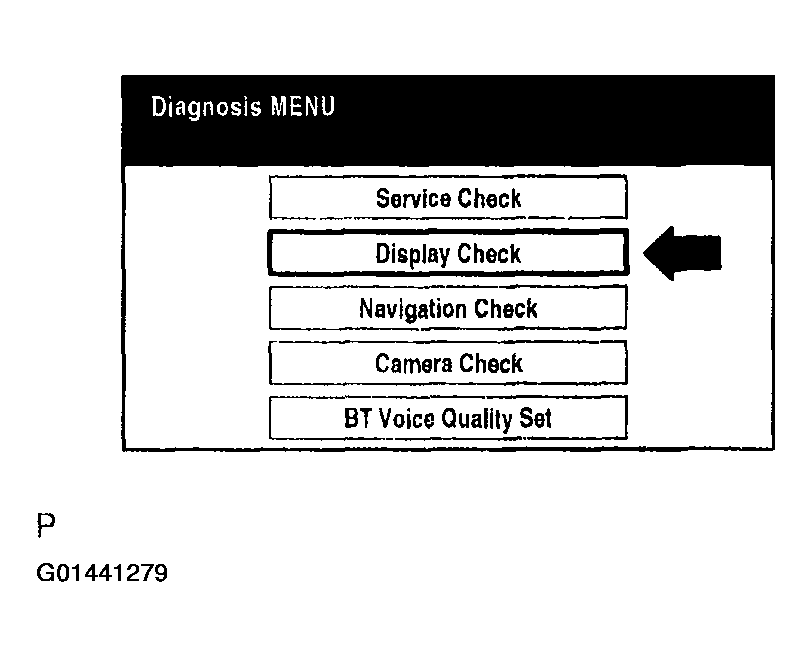

Fig 1: Identifying Multi-Display - Display Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Display Check" from the "Diagnosis Menu" screen.

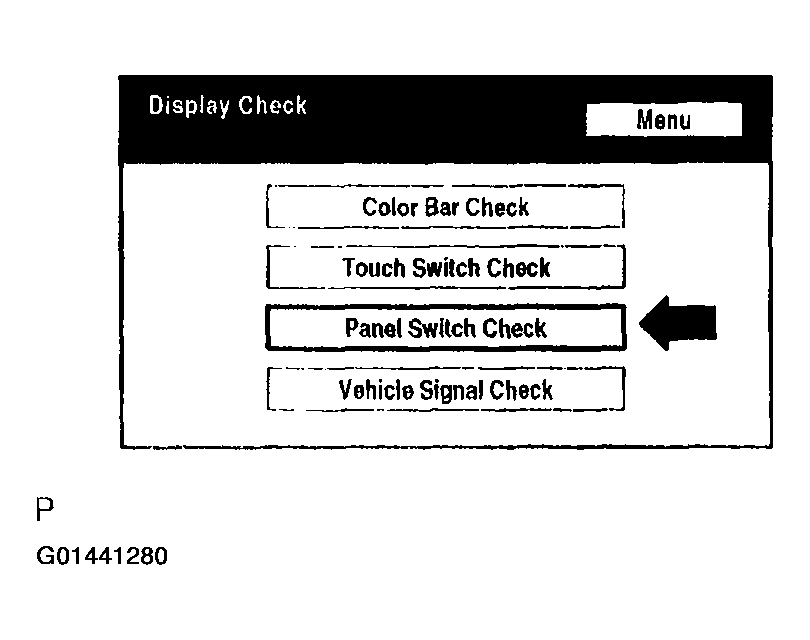

Fig 2: Identifying Multi-Display - Panel Switch Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Panel Switch Check" from the "Display Check" screen.

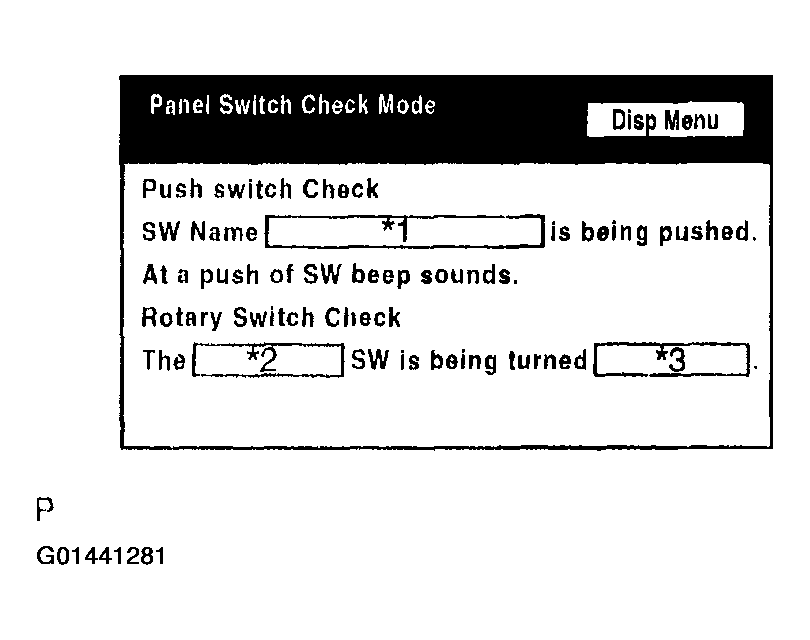

Fig 3: Identifying Multi-Display - Panel Switch Check Mode
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Operate each switch and check that the switch name and condition is correctly displayed.

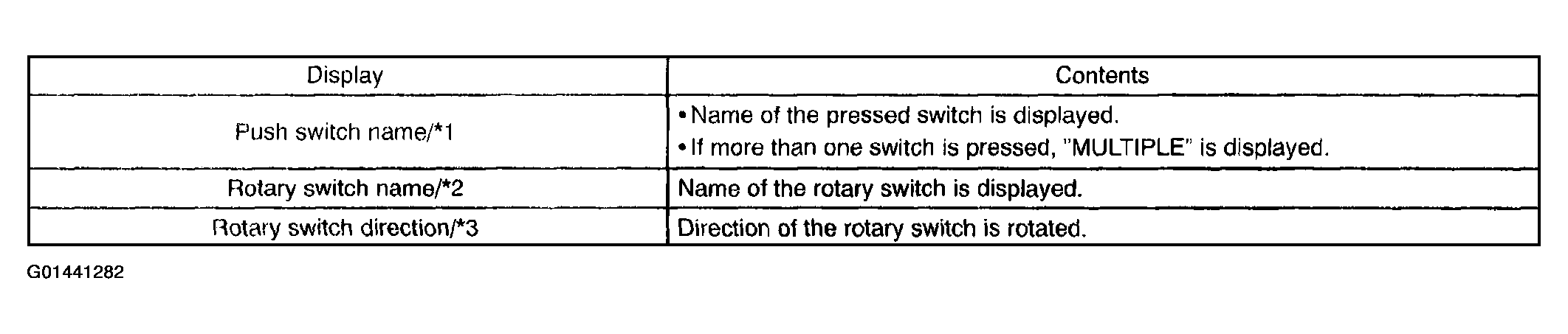

Fig 4: Display Content Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
