Display Check Mode (Touch Switch Check)

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the touch switch operation condition on the multi-display.

Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

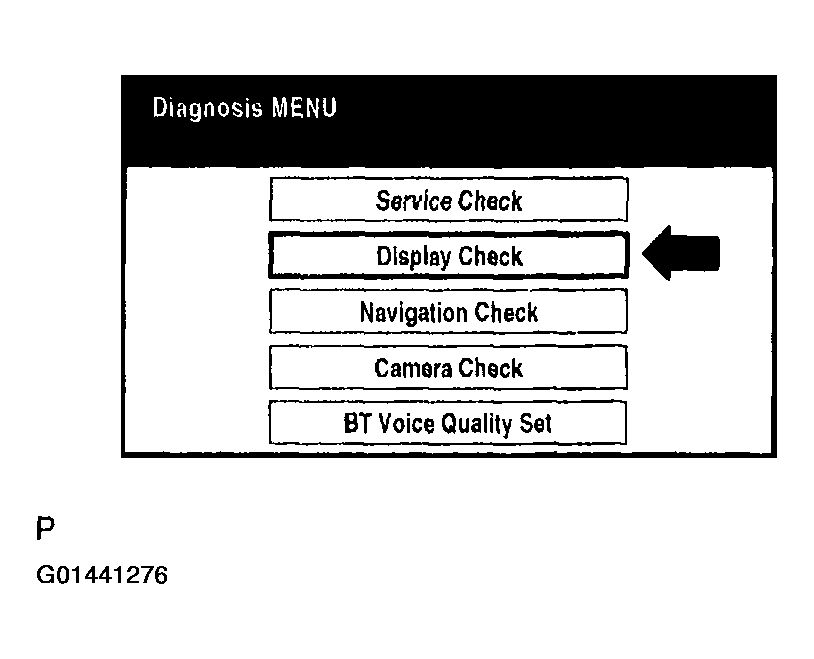

Fig 1: Identifying Multi-Display - Display Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Display Check" from the "Diagnosis MENU" screen.

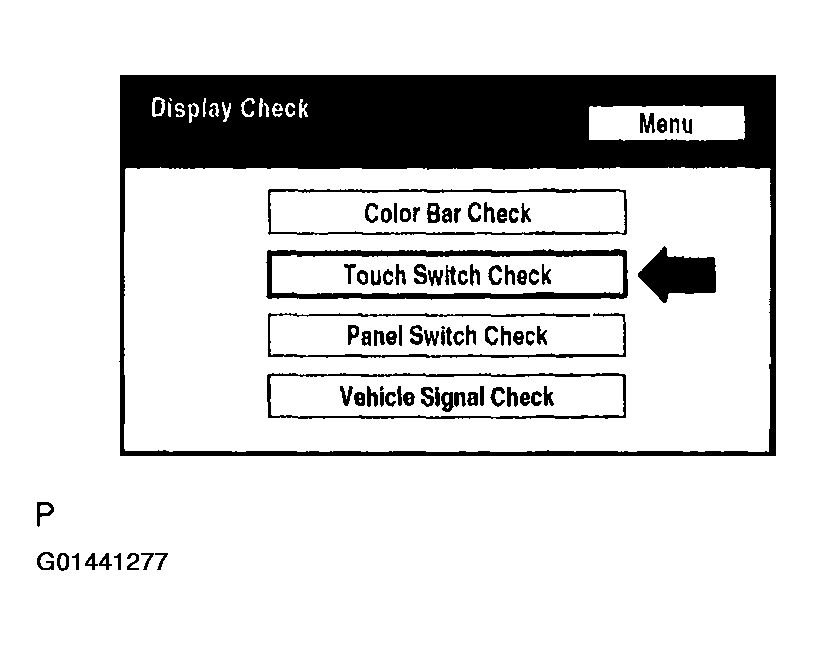

Fig 2: Identifying Multi-Display - Touch Switch Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Touch Switch Check" from the "Display Check" screen.

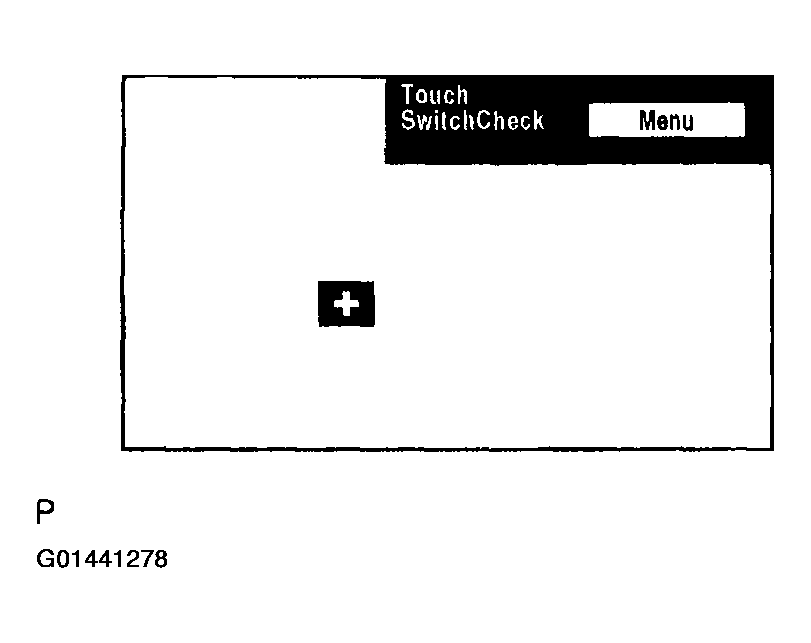

Fig 3: Identifying Multi-Display - Touch Switch Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
HINT:
- A "+" mark is displayed where the display is touched.
- The "+" mark remains on the display even after the finger is removed.
