Display Check Mode (Vehicle Signal Check)

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the vehicle signal status input to the multi-display.

Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

Fig 1: Identifying Multi-Display - Display Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Display Check" from the "Diagnosis MENU" screen.

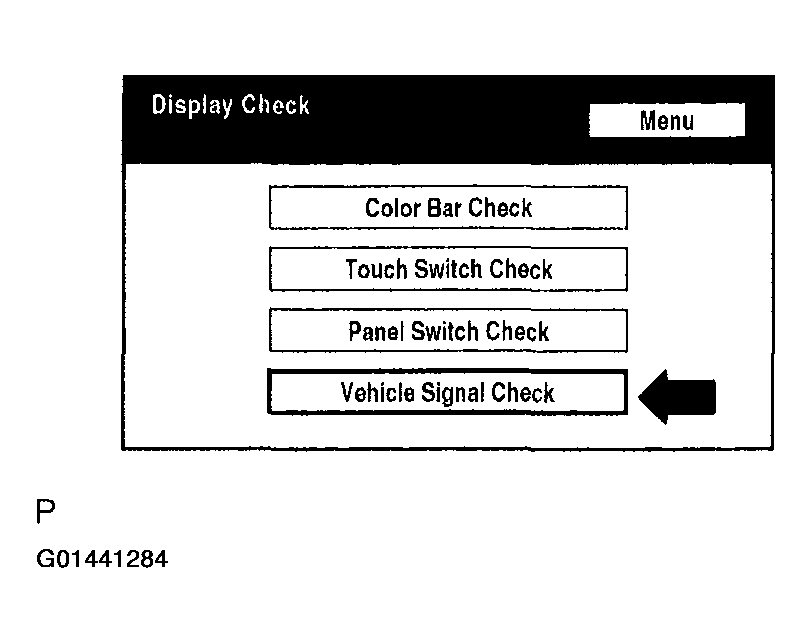

Fig 2: Identifying Multi-Display - Vehicle Signal Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Vehicle Signal Check" from the "Display Check" screen.

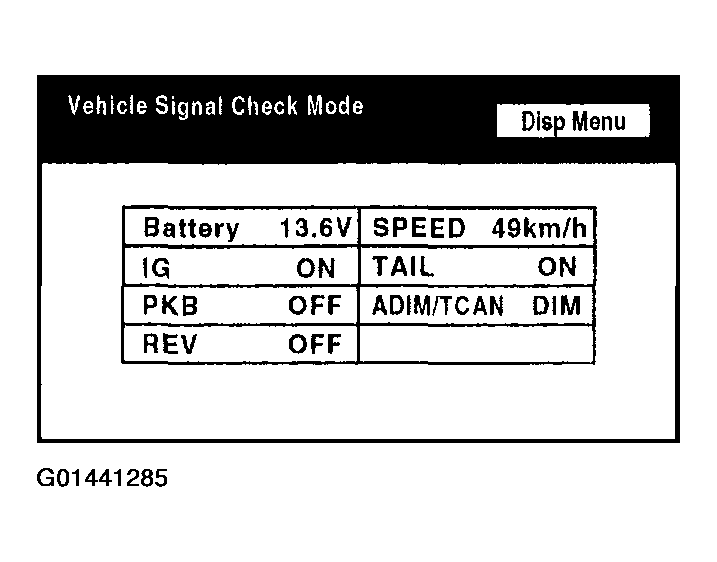

Fig 3: Identifying Multi-Display - Vehicle Signal Check Mode
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
HINT:
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
