Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU -MULTI-DISPLAY)
1. Disconnect the connector from the television camera ECU T24 and multi-display M3.
2. Measure the resistance according to the value (s) in the figure Fig 1 below.
  Standard:

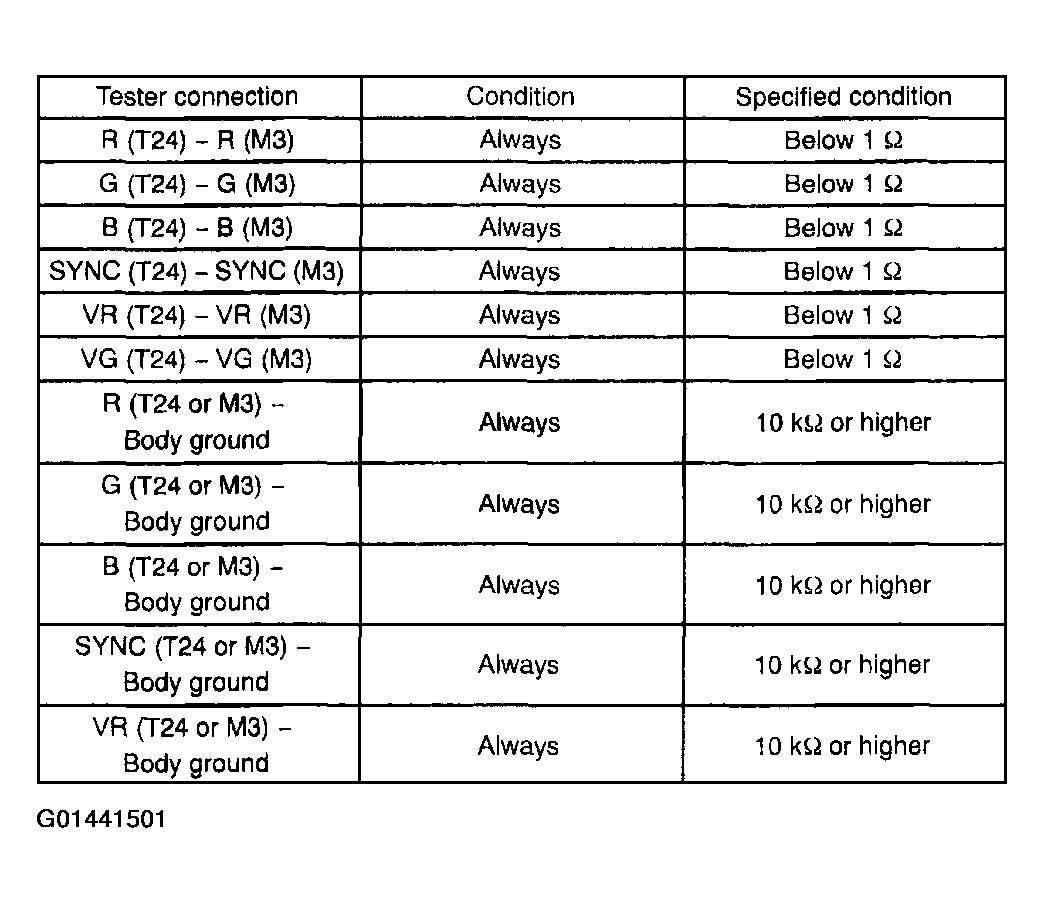

  Fig 1: Terminals Resistance Reference Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

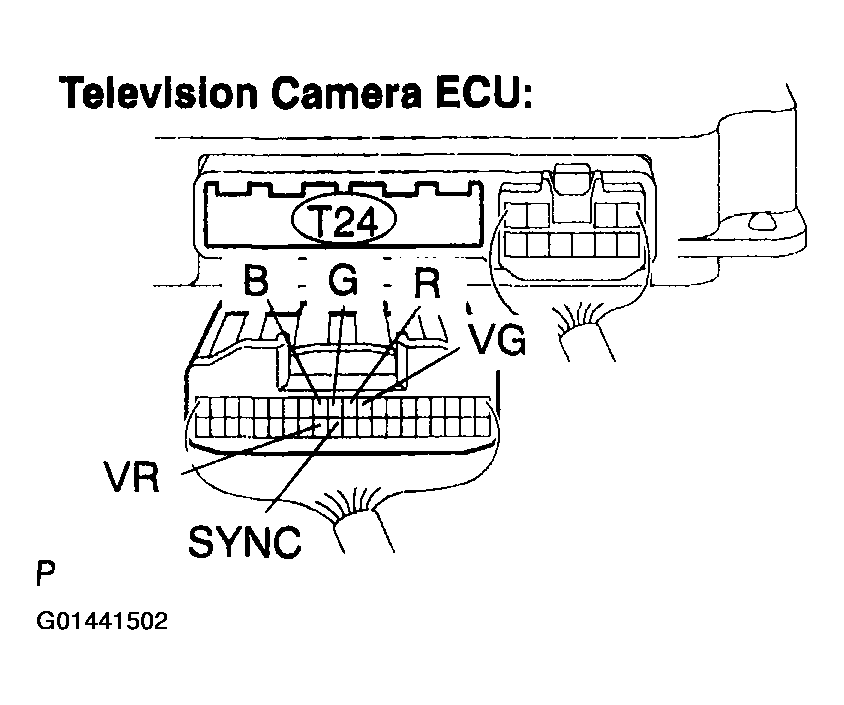

  Fig 2: Checking Harness And Connector (Television Camera ECU)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

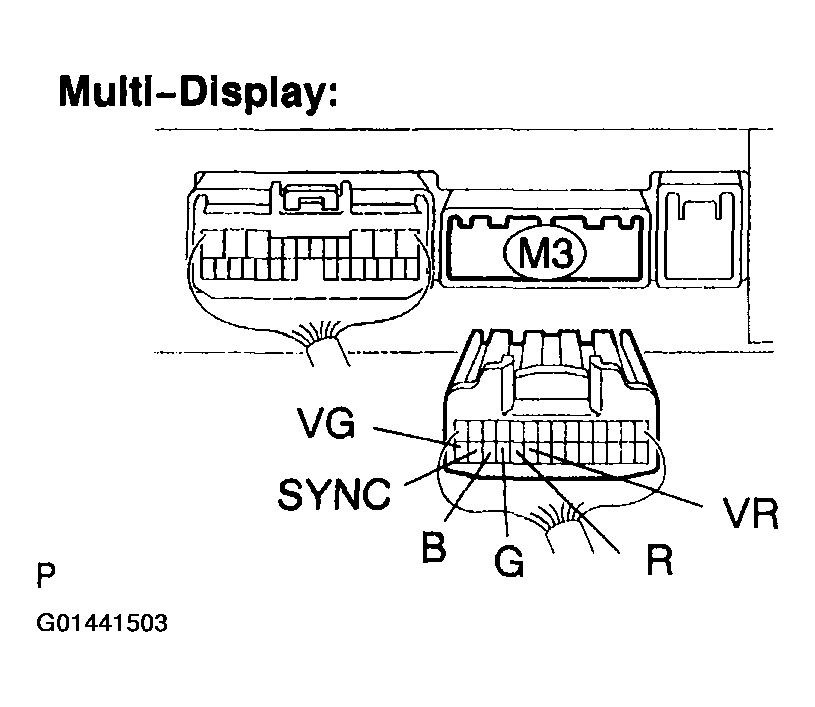

  Fig 3: Checking Harness And Connector (Multi-Display)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
