Navigation Check Mode (Microphone Check)

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The microphone is checked in the "Navigation Check (Microphone Check)" mode.
Illustrations may differ from the actual vehicle depending on vehicle specifications.

Start the diagnostic mode (see DIAGNOSTIC START-UP/FINISH )
Select "Navigation Check" from "Diagnosis MENU".

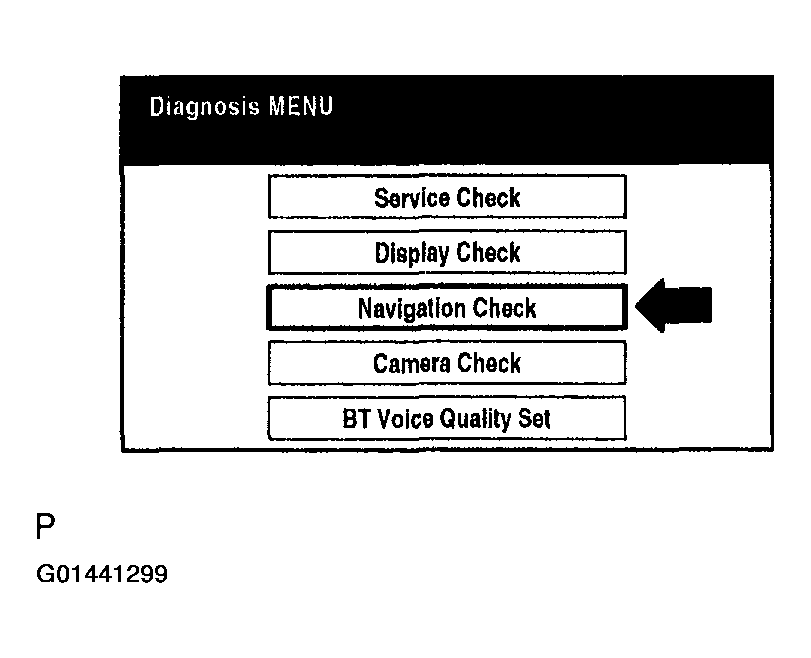

Fig 1: Identifying Multi-Display - Diagnosis Menu
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Microphone Check" from "Navigation Check".

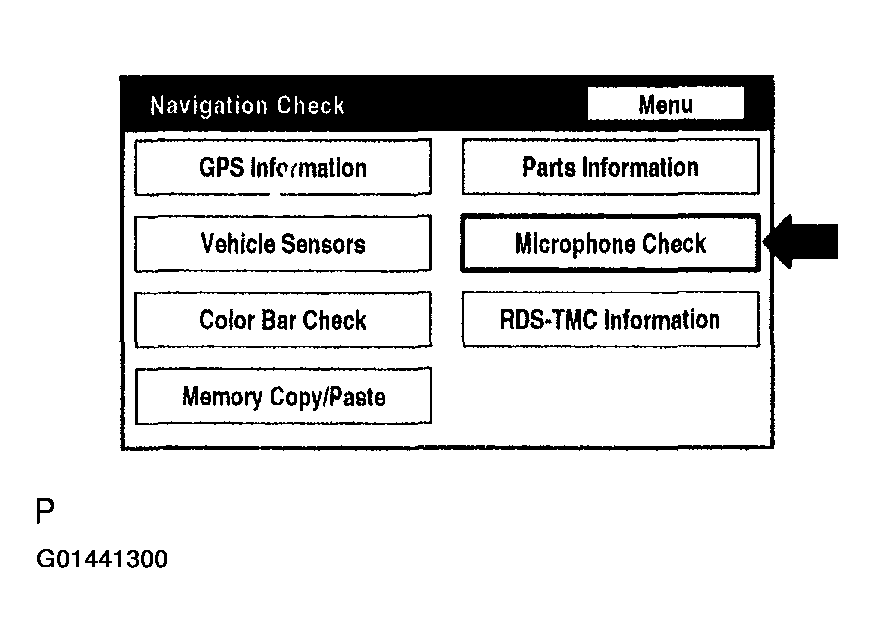

Fig 2: Identifying Multi-Display - Navigation Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Perform the microphone check by following the directions on the "Microphone Check" screen.

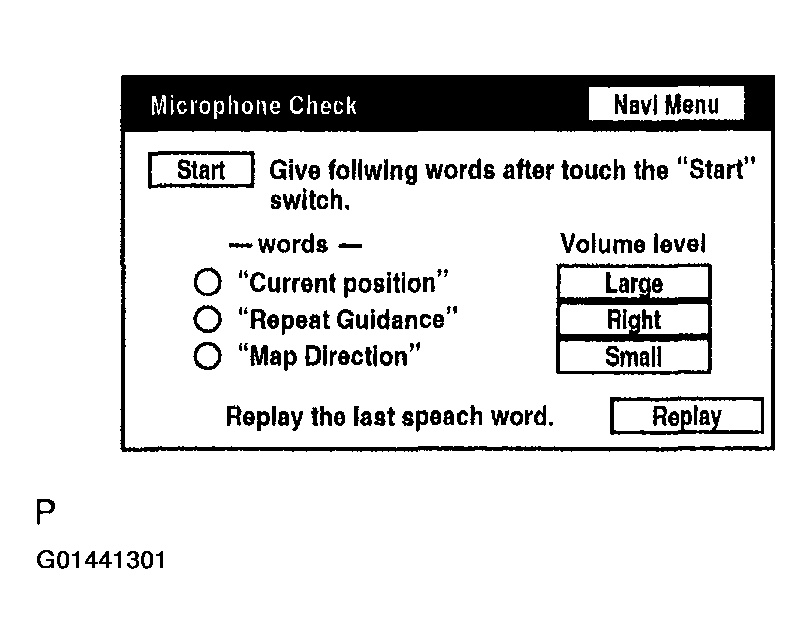

Fig 3: Identifying Multi-Display - Microphone Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
