Navigation Check Mode (Parts Information)

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode displays product information on the navigation systems and discs.

Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).

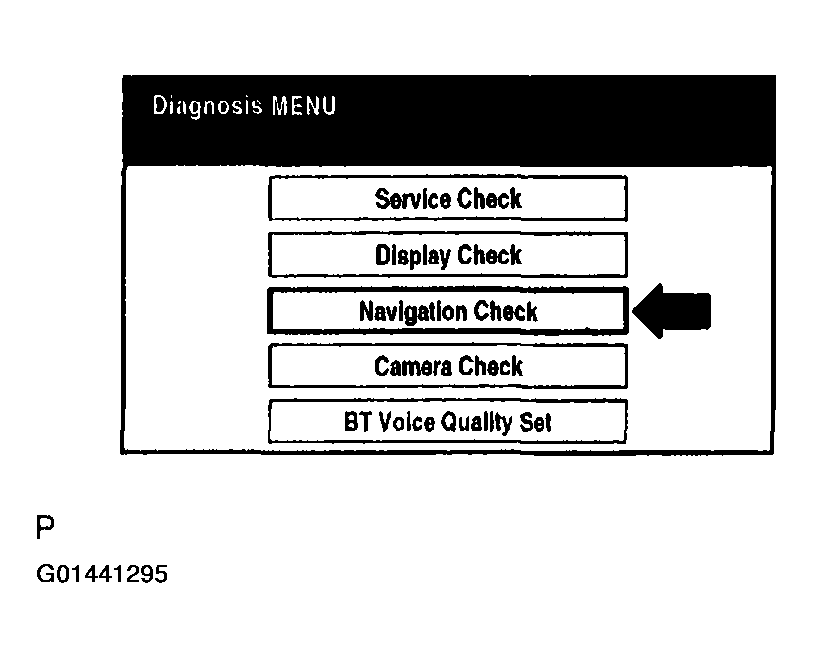

Fig 1: Identifying Multi-Display - Diagnosis Menu
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Navigation Check" from the "Diagnosis MENU" screen.

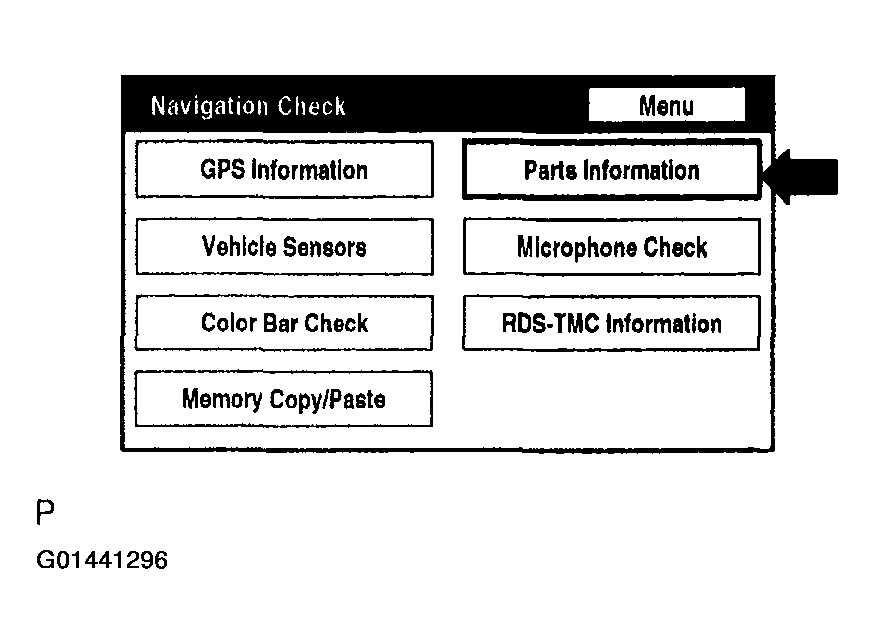

Fig 2: Identifying Multi-Display - Navigation Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Parts Information" from the "Navigation Check" screen.

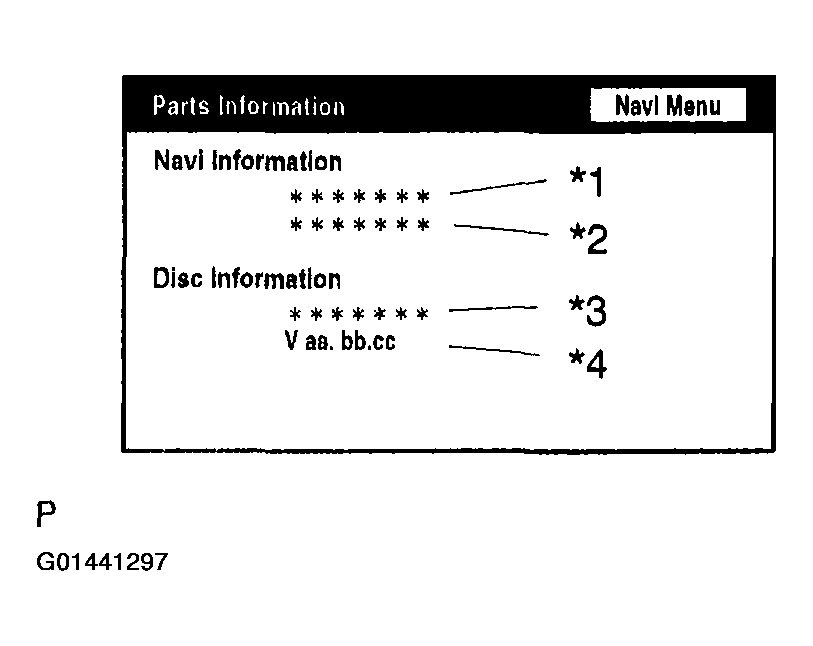

Fig 3: Identifying Multi-Display - Parts Information
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check the navigation and disc information when the "Parts Information" screen is displayed.

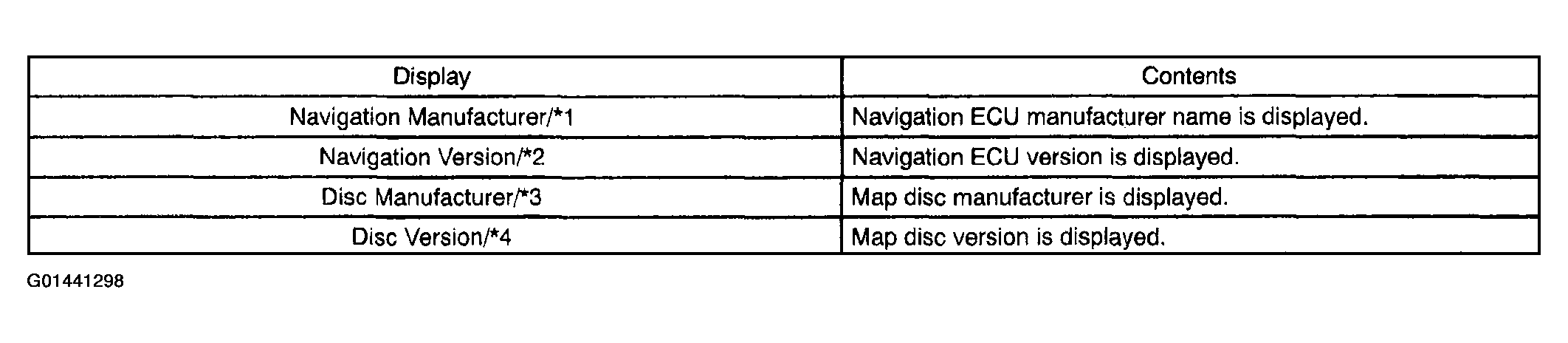

Fig 4: Display Content Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
