Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This is displayed on the multi-display (see SERVICE CHECK MODE (DTC CHECK) ).

TELEVISION CAMERA ECU (Physical address: 1 AC)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the ignition switch is turned to the START position again 1 minute after the engine start.
- *3: This code may be stored when the ignition switch is turned to the START position again after the engine start.
- *4: When 210 seconds have elapsed after pulling out the power supply connector of the master component with the ignition switch in the ACC or ON position, this code is stored.
1. Logical address: 01 (Communication control)

  Fig 1: Diagnostic Trouble Code Chart - Logical Address: 01 (Communication Control) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Diagnostic Trouble Code Chart - Logical Address: 01 (Communication Control) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

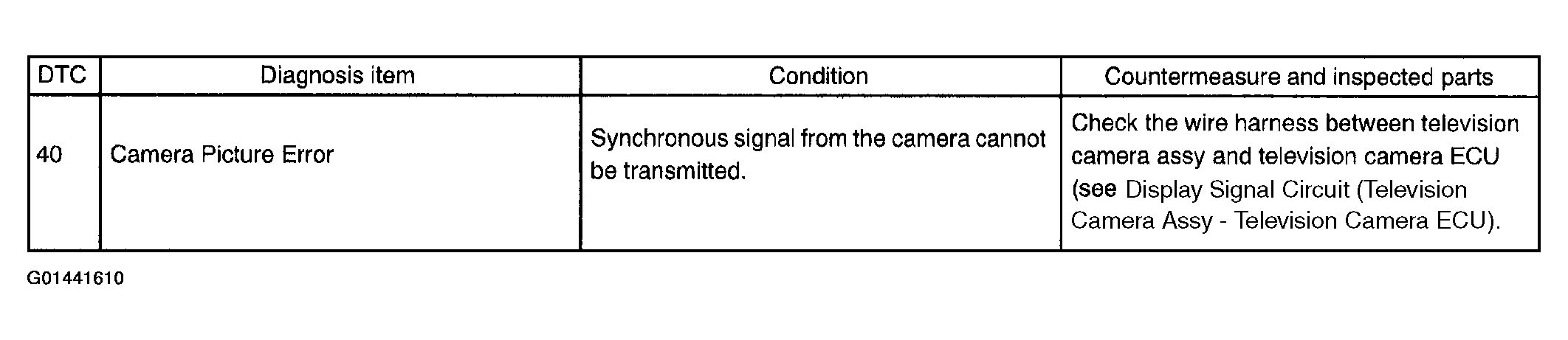

2. Logical address: 5C (Camera unit)

  Fig 3: Diagnostic Trouble Code Chart - Logical Address: 5C (Camera Unit)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
