Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

READ VALUE OF USING HAND - HELD TESTER
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and press the hand-held tester main switch ON.
3. Select the item below in the DATA LIST, and read the display on the hand-held tester.
4. Check the tester screen when operating the mirror motors.

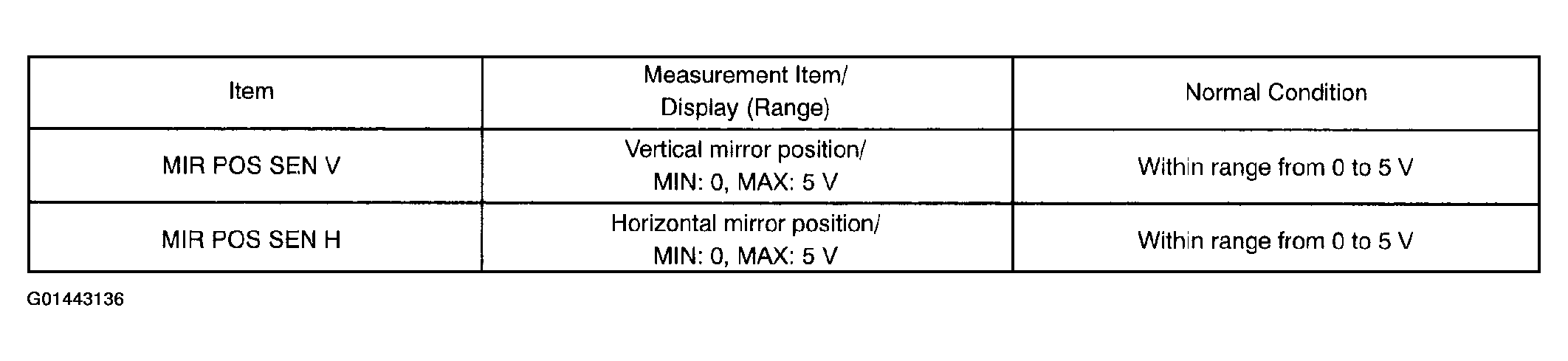

  Fig 1: Driver Door ECU -: Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

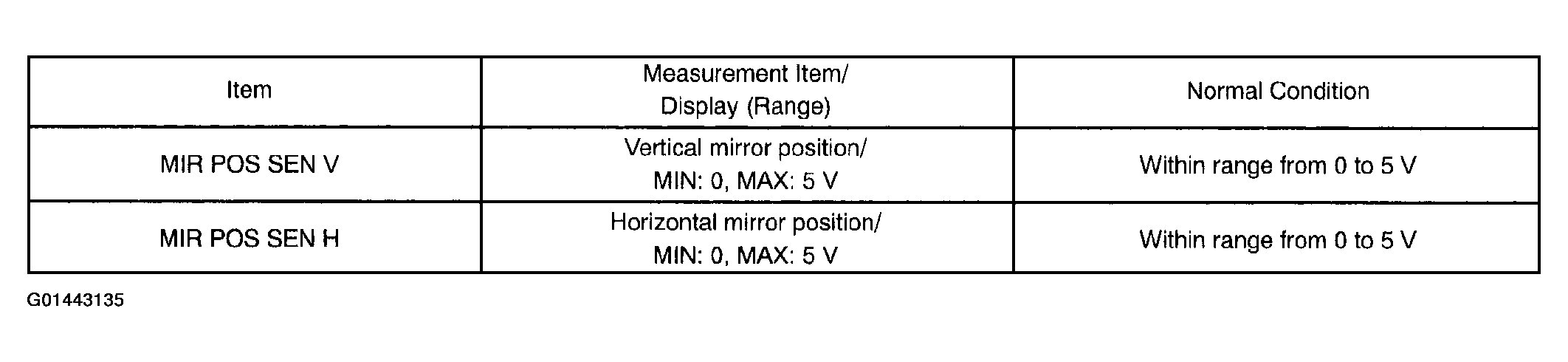

  Fig 2: Front Passenger Door ECU -: Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: Go to next step.

The tester screen's data is within the value ranges in the chart above.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
INSPECT MIRROR POSITION SENSOR (See INSPECTION )
NG: REPLACE REMOTE CONTROL MIRROR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
