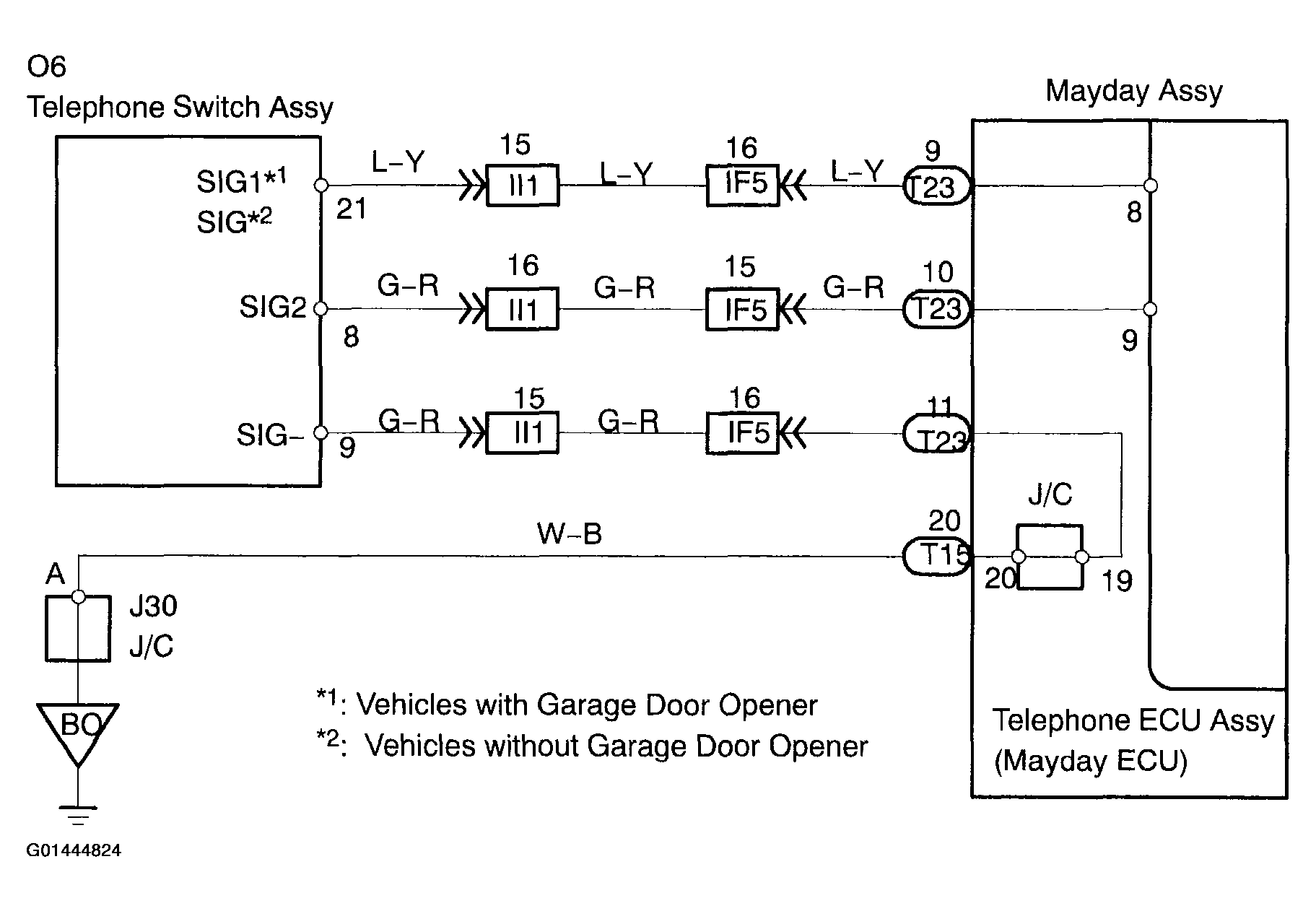

Connection To LEXUS Link Center Cannot Be Terminated: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
