Circuit Description
WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

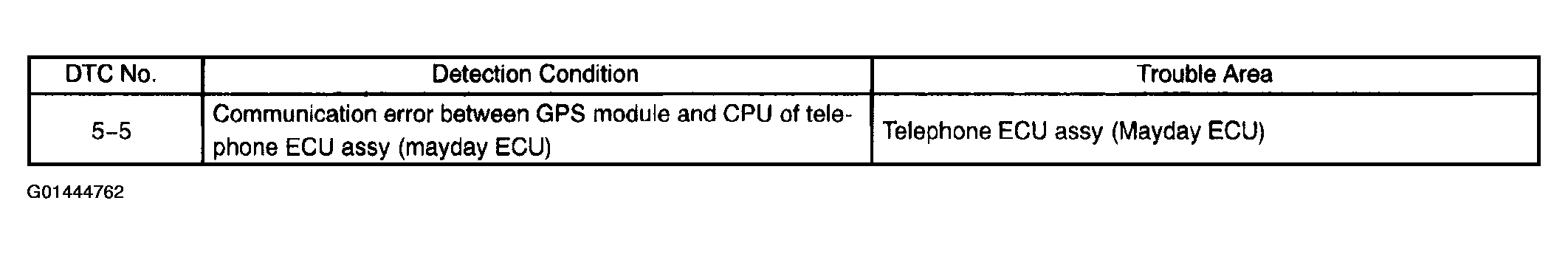

The GPS module is built into the telephone ECU assy (Mayday ECU) and transmits GPS data to the CPU of the telephone ECU assy.
