Problem Symptoms Table
WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

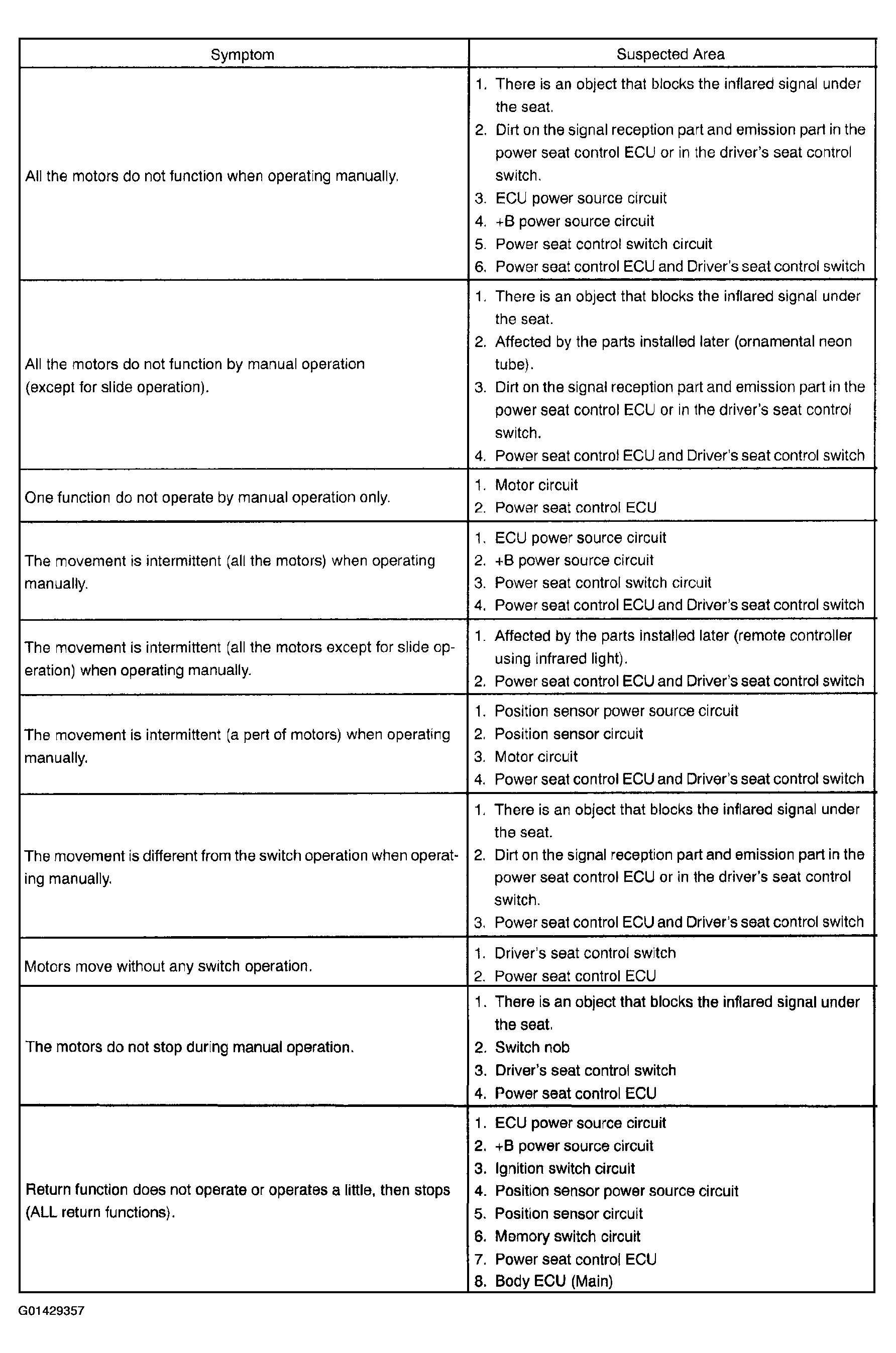

Troubleshoot the circuits for the applicable problem symptom in the order given in the chart below. Proceed to the page for each circuit.
HINT:
- If the instruction "Proceed to next circuit inspection shown on problem symptoms table" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still reappears even though there are no abnormalities in any of the other circuits, then check and replace the Power Seat Control ECU as the last step.
