Air Inlet Temperature Sensor: Inspection

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT SEATS
  2. REMOVE REAR CONSOLE BOX
  3. REMOVE FRONT CONSOLE BOX COVER
  4. REMOVE LOWER CENTER CLUSTER FINISH PANEL
  5. REMOVE FRONT DOOR SCUFF PLATES
  6. REMOVE COWL SIDE TRIMS
  7. REMOVE REAR DOOR SCUFF PATES
  8. REMOVE CENTER PILLAR GARNISHES
  9. REMOVE AIR INLET TEMPERATURE SENSOR
    1. Slide the floor carpet backward.
    2. Disconnect the connector.
    3. Remove the screw and the air inlet temperature sensor.
  10. INSPECT AIR INLET TEMPERATURE SENSOR CIRCUIT (See  DTC 26 REAR INLET AIR TEMPERATURE SENSOR CIRCUIT  )
  11. INSTALL AIR INLET TEMPERATURE SENSOR
    1. Install the air inlet temperature sensor with the screw.

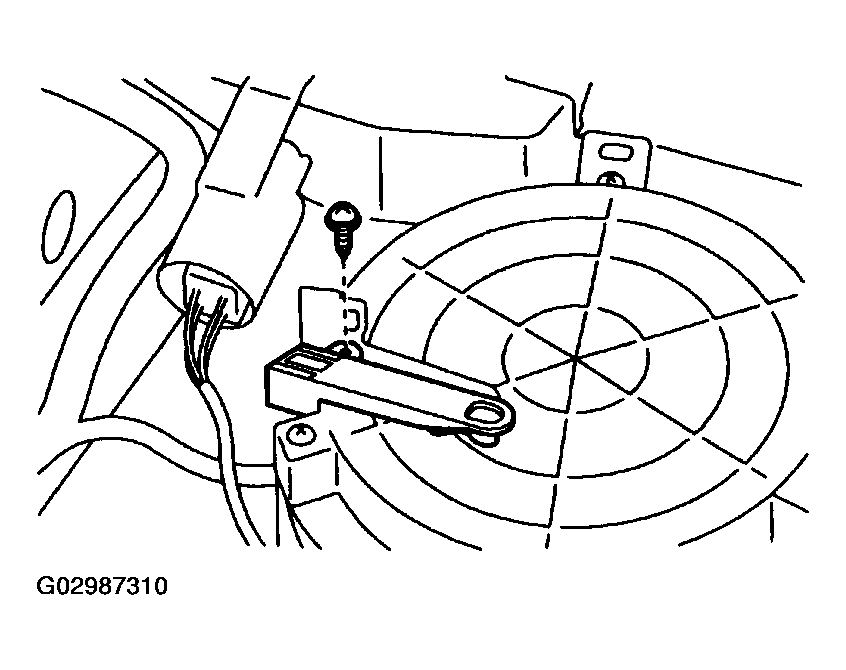

      Fig 1: Removing Air Inlet Temperature Sensor
      G02987310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Install the floor carpet.
  12. INSTALL CENTER PILLAR GARNISHES
  13. INSTALL REAR DOOR SCUFF PLATES
  14. INSTALL COWL SIDE TRIMS
  15. INSTALL FRONT DOOR SCUFF PLATES
  16. INSTALL REAR CONSOLE BOX
  17. INSTALL FRONT SEATS
