Problem Symptoms Table
DTC INDEX
| DTC | Description |
|---|---|
| DTC C1560 | PPS SOLENOID MALFUNCTION 1 |
| DTC C1561 | PPS SOLENOID MALFUNCTION 2 |

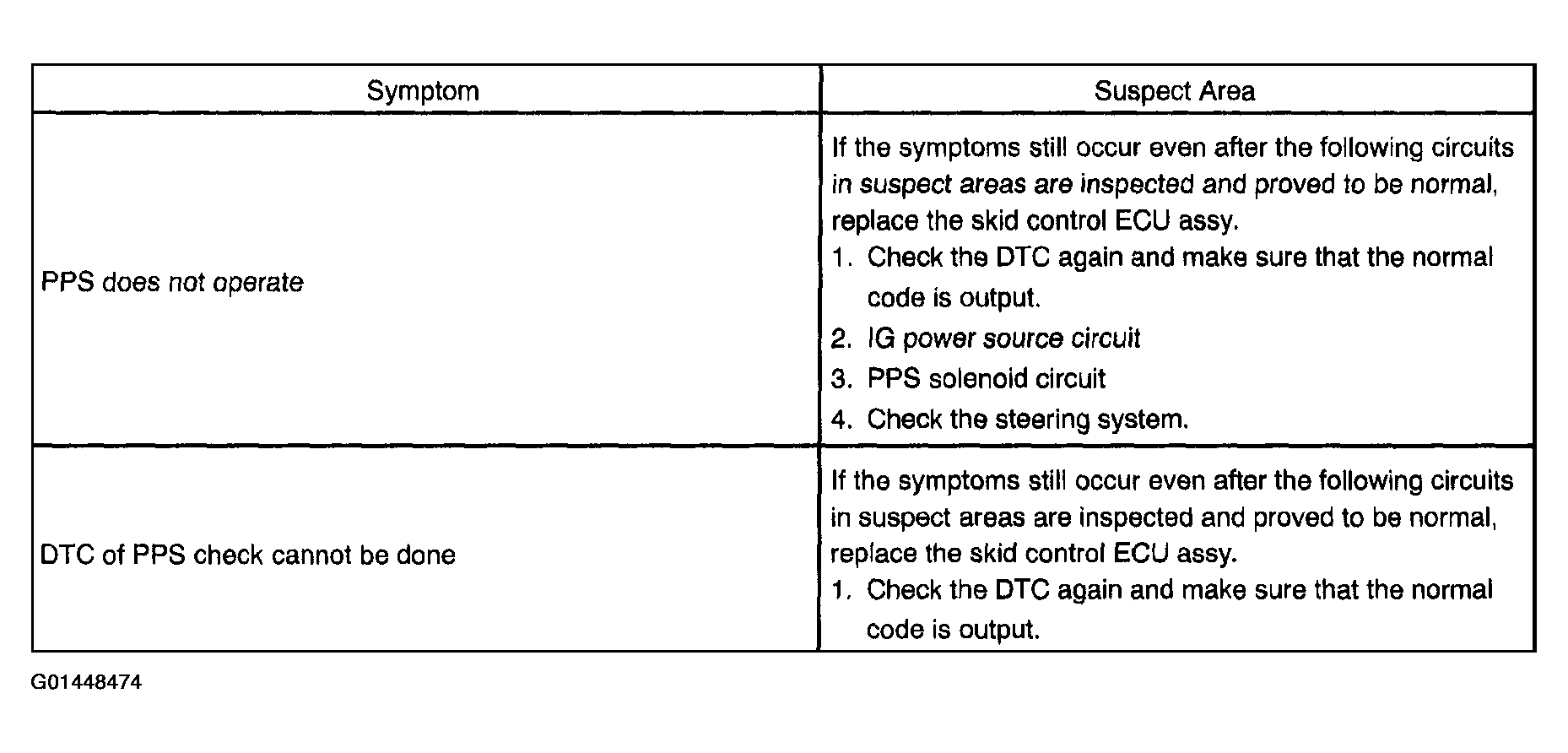

If normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the Fig 1 and proceed to the relevant troubleshooting page.
NOTE:
When replacing skid control ECU assy, power steering solenoid valve assy, turn the ignition switch OFF.
