Inspection Procedure

Check position sensor.

CHECK:

Measure voltage between terminal O/P of Power Seat Control ECU and body ground with connector being connected.

OK:

VOLTAGE CONDITION

Tester Connection	Condition	Voltage
O/P --> body ground	Motor stopped (Check several times with the motor in a different position each time.)	0 V or 8 V voltage according to stop position.
O/P --> body ground	with motor turning	half of 8 V voltage

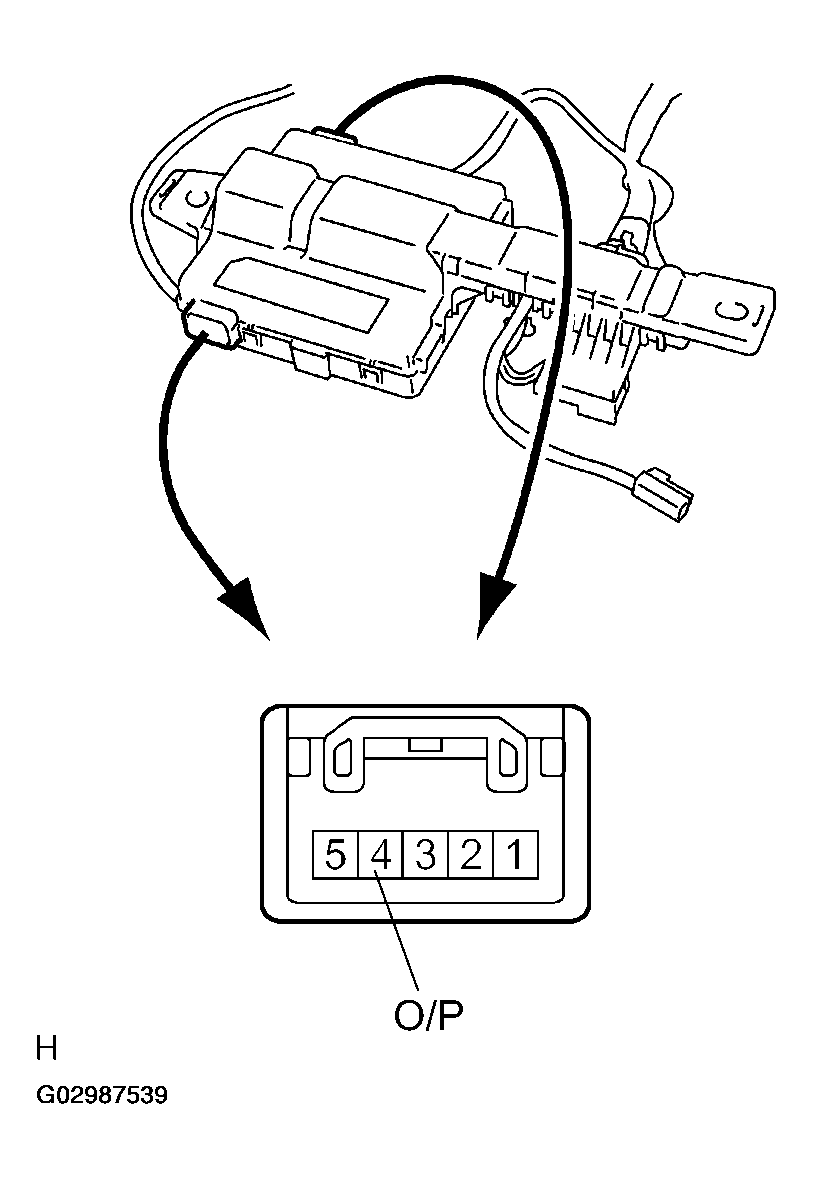

Fig 1: Checking Position Sensor

G02987539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Proceed to next circuit inspection shown on problem symptom table (See PROBLEM SYMPTOMS TABLE ).
NG: Go to Next Step.

Check harness and connectors between Power Seat Control ECU and position sensors (See PROCEDURE ).
1. NG: Repair or replace harness or connectors.
2. OK: Proceed to next circuit inspection shown on problem symptom table (See PROBLEM SYMPTOMS TABLE ).
