Inspection Procedure

PREPARATION:

Remove Power Seat Control ECU with connectors being connected.

CHECK:

While operating the Power Seat Control Switch and moving the seat, check voltage between terminal VCC of Power Seat Control ECU connector and body ground.

OK:

1. Voltage: 7.2 - 8.8 V

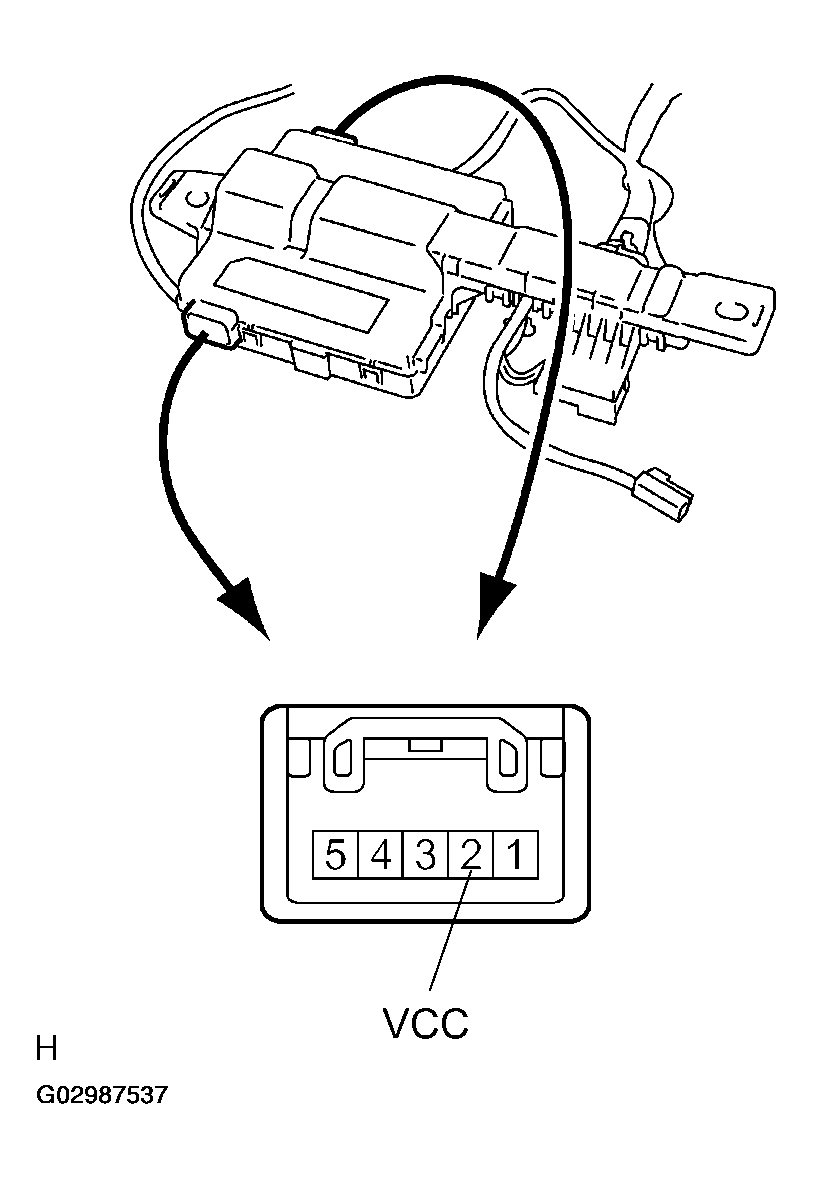

Fig 1: Identifying Connector Terminals VCC Of Power Seat Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Proceed to next circuit inspection shown on problem symptom table (See  PROBLEM SYMPTOMS TABLE   ).
2. NG: Go to Next Step.

1. NG: Repair or replace harness or connector.
2. OK: Check and replace Power Seat Control ECU (See  PROCEDURE  ).
